nVent A1210CHQR A51 Junction Box NEMA 12 (12 IN H x 10 IN W x 5 IN D)

Product Description

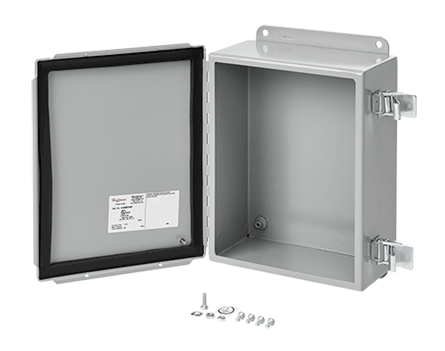

The nVent HOFFMAN Junction Box, model A1210CHQR, is designed for easy access to enclosed components. This junction box features a continuous hinged cover and is rated NEMA 12/IP65, making it suitable for various applications in electrical settings.

• Continuous hinge door with quick-release latch
• Steel construction with a gray polyester powder paint finish
• Wall mounted design for secure installation

Product Highlights

This junction box provides protection for electrical components, ensuring durability and reliability in a range of environments.

Product Information

Standard Information

• Manufacturer: nVent
• Manufacturer Part Number: A1210CHQR

Technical Specifications

• Application: Used to provide convenient access to enclosed components in a wide variety of applications
• Color: Gray
• Cover Type: Continuous Hinged
• Depth: 5 in
• Finish: Polyester Powder Painted
• Height: 12 in
• Lock: Quick-Release Latch
• Material: Steel
• Mounting Type: Wall
• NEMA Rating: NEMA 12/IP65
• Panel Size: 10.75 x 8.88 in
• Series: A51
• Standards/Approvals: RoHS Compliant, cUL Listed, CSA File No. 42184, IEC 60529, UL 50/50E Listed
• Width: 10 in
