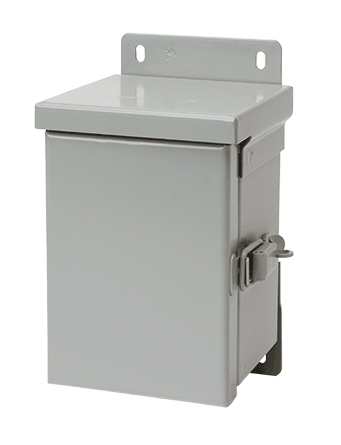

nVent A10R86HCR A3SM Small Enclosure With Knockout 10 in L x 8 in W x 6 in D NEMA 3R

Product Description

The nVent HOFFMAN A10R86HCR is a small enclosure designed for electrical applications. It has a length of ten inches, width of eight inches, and depth of six inches. The enclosure meets NEMA 3R ratings, providing protection against rain and splashing water.

• Hinged cover for easy access
• Steel construction for durability
• Multiple cable entry knockouts for flexible installation

Product Highlights

This enclosure is suitable for wall mounting and features a galvanized and powder-coated finish for added corrosion resistance.

Product Information

Standard Information

• Brand: nVent
• MPN: A10R86HCR

Technical Specifications

• Type: Small
• NEMA Rating: NEMA 3R
• Material: Steel
• Finish: Galvanized/Powder Coated
• Depth: 6 inches
• Width: 8 inches
• Length: 10 inches
• Lock: Draw Pull Catch Padlock
• Panel Size: 6-1/4 inches W x 8-1/4 inches H
• Mounting Type: Wall
• Cable Entry Size: (2) 1/2 to 3/4 inches, (2) 3/4 to 1 inches Knockout Bottom
• Standards/Approvals: cUL Listed per CSA C22.2 File No. 94 File No. E27567|IEC 60529|UL 50|50E Listed File No. E27567
• Series: A3SM
