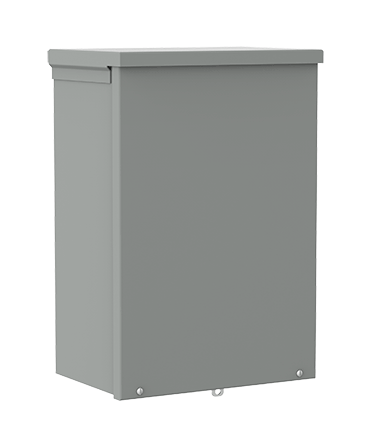

nVent A10R86 A10R86 HOF NEMA 3R SCREW CVR ENC

Product Description

The nVent A10R86 is an outdoor enclosure designed for wiring or junction box applications. This product features a steel construction with a galvanized finish, ensuring durability in various environments.

• Includes multiple knockouts for easy cable entry.
• NEMA 3R/IP32 rated for protection against rain and dust.
• Wall-mounted design suitable for diverse installation locations.

Product Highlights

Designed to be used outdoors, this enclosure is perfect for protecting electrical connections from the elements.

Product Information

Standard Information

• Manufacturer: nVent
• MPN: A10R86

Technical Specifications

• Type: A Style Body
• Application: For outdoor applications
• Material: Steel
• Finish: Galvanized
• Height: 10 inches
• Width: 8 inches
• Depth: 6 inches
• Color: Gray
• Lock: Padlock
• NEMA Rating: NEMA 3R/IP32
• Mounting Type: Wall
• Cable Entry Size: (2) 3/4 to 1 inches, (2) 1/2 to 3/4 inches Knockout Bottom
• Standards/Approvals: cUL Listed | CSA C22.2 File No. 94 | File No. E27525 | UL 50 | UL 50E Listed File No. E27525 | IEC 60529
