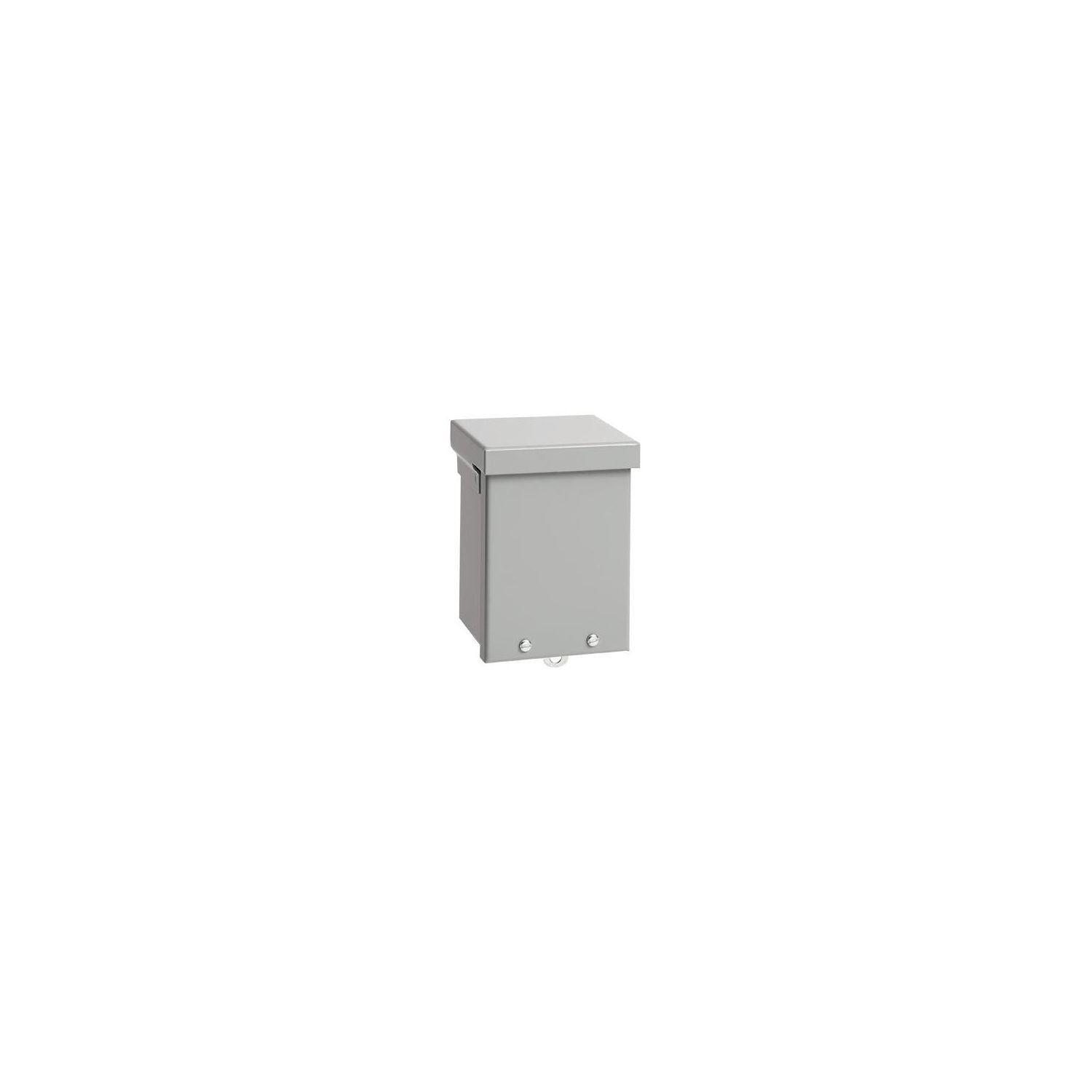

Nvent A10R86 A Style Body Enclosure 10 in H x 8 in W x 6 in D

Product Description

Nvent A10R86 is an A style body wall-mount enclosure with a screw cover and bottom knockouts, sized 10 in H x 8 in W x 6 in D. The enclosure is constructed of galvanized steel (available in 16, 14, or 12 gauge) and is NEMA 3R / IP32 rated for outdoor protection. It includes embossed mounting holes, provision for padlocking, plated steel screws, and meets UL, cUL, CSA, and IEC 60529 standards.

• NEMA 3R / IP32 rated galvanized steel enclosure with screw cover and padlock provision
• Dimensions: 10 in H x 8 in W x 6 in D; wall-mountable with embossed mounting holes
• Bottom knockouts: (2) 3/4 to 1 in and (2) 1/2 to 3/4 in; available material gauges: 16, 14, or 12

Product Highlights

Type 3R screw-cover junction box, galvanized steel, 10 x 8 x 6 in, bottom knockouts and padlock provision; listed to UL, cUL, CSA and IEC 60529.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: A10R86
• Country of Origin: MX

Technical Specifications

• Brand: Nvent
• Manufacturer Part Number: A10R86
• Series: A90S3
• Product Type: A style body enclosure / junction box
• Body Style: A Style
• Enclosure Type: Junction Box
• Material: Steel (galvanized)
• Body Gauge: 16, 14 or 12 ga
• Finish: Galvanized
• Height: 10 in
• Width: 8 in
• Depth: 6 in
• NEMA Rating: 3R
• IP Rating: IP32
• Cover Type: Screw cover (slip-on removable)
• Knockouts: (2) 3/4 to 1 in and (2) 1/2 to 3/4 in (bottom)
• Mounting Type: Wall mount
• Padlock Provision: Yes
• Includes: Knockouts; plated steel screws
• Standards/Approvals: cUL Listed; CSA C22.2 No. 94; UL 50 and UL 50E File No. E27525; IEC 60529
• Weight: 7.7 lb
