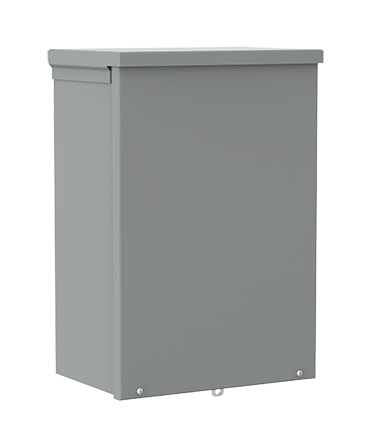

nVent A10R104 A10R104 HOF NEMA 3R ENCLOSURE

Product Description

The nVent A10R104 is a HOF NEMA 3R enclosure designed for outdoor applications. This enclosure features a robust A style body and measures ten inches in height, ten inches in width, and four inches in depth. The unit includes knockouts for ease of cable entry and has a screw cover for added security. It offers a NEMA 3R/IP32 rating, suitable for environments that require reliable protection from water and dust.

• Constructed from galvanized steel for durability
• Features a padlock provision for security
• Designed for wall mounting with embossed mounting holes

Product Highlights

This enclosure is ideal for use as a wiring or junction box in outdoor applications, ensuring components are safeguarded from harsh weather.

Product Information

Standard Information

• Manufacturer: nVent
• Manufacturer Part Number: A10R104

Technical Specifications

• Application: For outdoor application as a wiring or junction box
• Width: 10 inches
• Height: 10 inches
• Depth: 4 inches
• Material: Steel
• Finish: Galvanized
• NEMA Rating: NEMA 3R/IP32
• Mounting Type: Wall
• Cable Entry Size: (2) 3/4 to 1 inch, (2) 1/2 to 3/4 inch, (1) 1 to 1-1/4 inch Knockout Bottom
• Lock Type: Padlock
• Standards/Approvals: cUL Listed, CSA C22.2 File No. 94, UL 50, UL 50E Listed
• Series: A90S3
