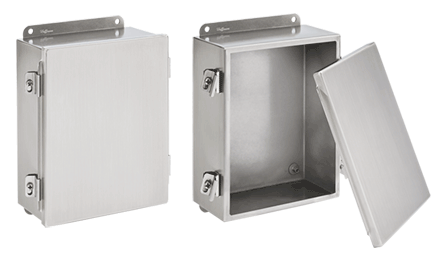

nVent A1008NFSS Junction Box NEMA4X SS JIC BOX HO

Product Description

The nVent A1008NFSS Junction Box is designed for outdoor and corrosive applications. With a height of ten inches, width of eight inches, and depth of four inches, this enclosure meets the NEMA 4X/IP66 rating. It features a screw clamp for a solid cover, making it reliable for various environments.

• Material: 304 Stainless Steel
• NEMA Rating: NEMA 4X/IP66
• Mounting Type: Wall Mount

Product Highlights

This junction box has seamless foam-in-place gaskets that help provide a secure seal. It is easy to access for modifications due to its screw clamp design.

Product Information

Standard Information

• Manufacturer: nVent
• Manufacturer Part Number: A1008NFSS

Technical Specifications

• Application: Used in either corrosive or outdoor applications
• Cover Type: Screw Clamp/Solid
• Depth: 4 inches
• Finish: #4 Smooth Brushed
• Height: 10 inches
• Material: 304 Stainless Steel
• Mounting Type: Wall
• NEMA Rating: NEMA 4X/IP66
• Panel Size: 8.75 x 6.88 inches
• Series: A51S
• Standards/Approvals: cUL Listed per CSA C22.2 File No. 94 File No. E27525
• Width: 8 inches
