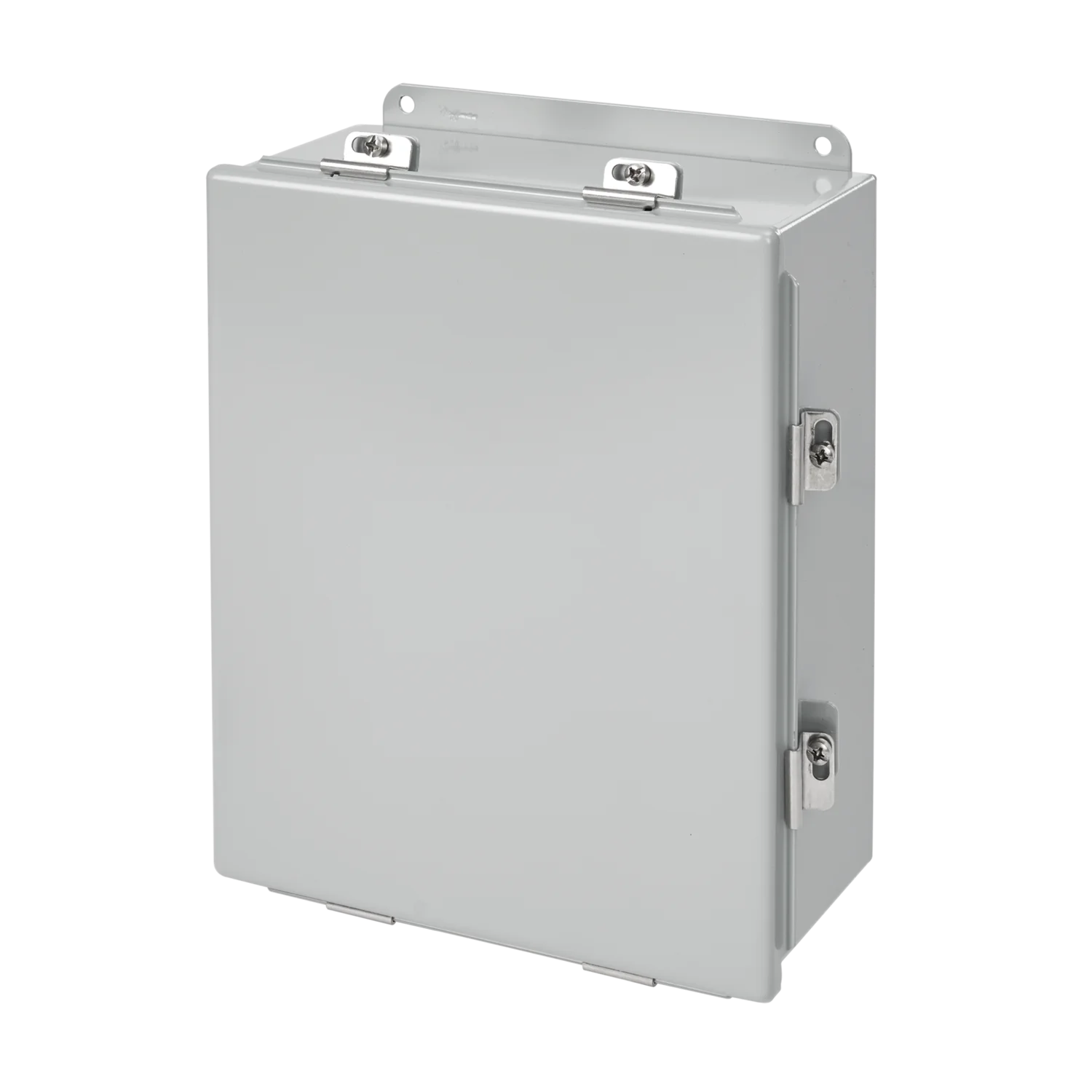

Nvent A1008CHNF Hof NEMA-4 Box (10 x 8 x 4 in)

Product Description

The Nvent A1008CHNF is a Hoffman A51NF series continuous-hinge junction box that provides NEMA 4 / IP66 environmental protection for indoor or outdoor applications. The steel enclosure measures 10 x 8 x 4 in (254 x 203 x 102 mm) and features a continuous hinged cover with stainless steel screw-down clamps and a stainless steel hinge pin. It includes an 8.75 x 6.88 in removable panel, weldnuts for optional panels, oil-resistant gasket, and external wall-mounting brackets.

• NEMA 4 / IP66 rated steel enclosure with continuous hinged cover and stainless steel screw-down clamps on three sides
• Dimensions 10 x 8 x 4 in (254 x 203 x 102 mm) with 8.75 x 6.88 in removable panel and weldnuts for 6 x 4 in panels and larger
• Oil-resistant gasket, stainless steel hinge pin, external wall-mounting brackets; polyester powder painted finish

Product Highlights

Continuous-hinge NEMA 4 / IP66 steel junction box with removable panel and stainless steel clamps

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: A1008CHNF

Technical Specifications

• Brand: Nvent
• Manufacturer Part Number: A1008CHNF
• Series: A51NF
• Enclosure Type: Junction box / electrical enclosure
• Material: Steel
• Finish: Polyester powder painted
• Color: Gray (ANSI 61)
• Height: 10 in (254 mm)
• Width: 8 in (203 mm)
• Depth: 4 in (102 mm)
• Overall Dimensions: 11.50 x 8.94 in (292 x 227 mm)
• Panel Size: 8.75 x 6.88 in removable panel
• Weldnuts For Panels: Supports optional panels and terminal block kits 6 x 4 in (152 x 102 mm) and larger
• Mounting Type: Wall mount (external welded on mounting brackets)
• Cover Type: Continuous hinged cover with screw clamps
• Clamp Material: Stainless steel screw-down clamps (three sides)
• Hinge Pin Material: Stainless steel
• Gasket: Oil-resistant gasket
• Thickness: 14 gauge (approx. 1.9 mm)
• Weight: 7.9 lb
• NEMA Rating: NEMA 4
• IP Rating: IP66
• Standards/Approvals: cUL Listed per CSA C22.2; UL 50/50E; IEC 60529; (Files: E27567, 42184)
