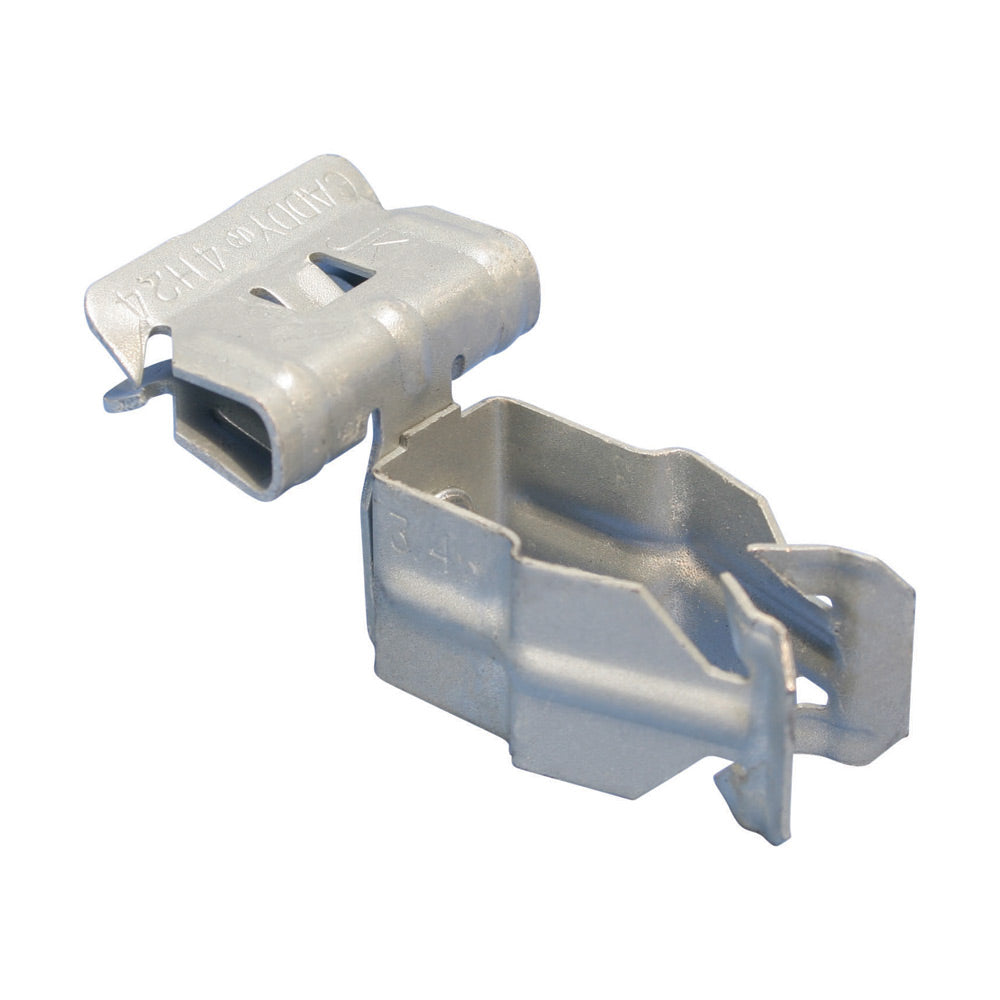

Nvent 8P24SM H-PSM conduit to flange clip 15 lb load 1/2 in conduit 0.709 to 0.866 in OD

Product Description

The NVENT 8P24SM H-PSM Conduit to Flange Clip is designed for side mounting 1/2 inch conduit to flanges ranging from 1/8 to 1/4 inch. Constructed from spring steel with a Caddy Armor finish, it supports a 15 lb load. This clip is suitable for use with EMT, rigid, IMT, and aluminum conduit, providing a secure attachment for electrical and low voltage applications. Its design accommodates 0.709 to 0.866 inch OD conduits.

• Requires only a hammer for installation.
• Pivots through 360 degrees for flexible positioning.
• Compatible with EMT, rigid, IMT, and aluminum conduit.

Product Highlights

Easy-to-install spring steel clip for 1/2 inch conduit, offering 360-degree pivot and 15 lb load capacity.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: 8P24SM
• Country of Origin: United States

Technical Specifications

• Application: Datacom, Low Voltage, Electrical
• Conduit Size: 1/2 inch
• Finish: Caddy Armor
• Flange Thickness: 1/8 to 1/4 inch
• Load Capacity: 15 lb
• Material: Spring Steel
• Mounting Type: Side
• Series: H-PSM
• Compatible Conduit Types: EMT, Rigid, IMT, Aluminum
• Conduit Outer Diameter Range: 0.709 to 0.866 inch
