Nvent 812MB18A combination box/conduit hanger 1/2 to 3/4 inch EMT conduit size

Product Description

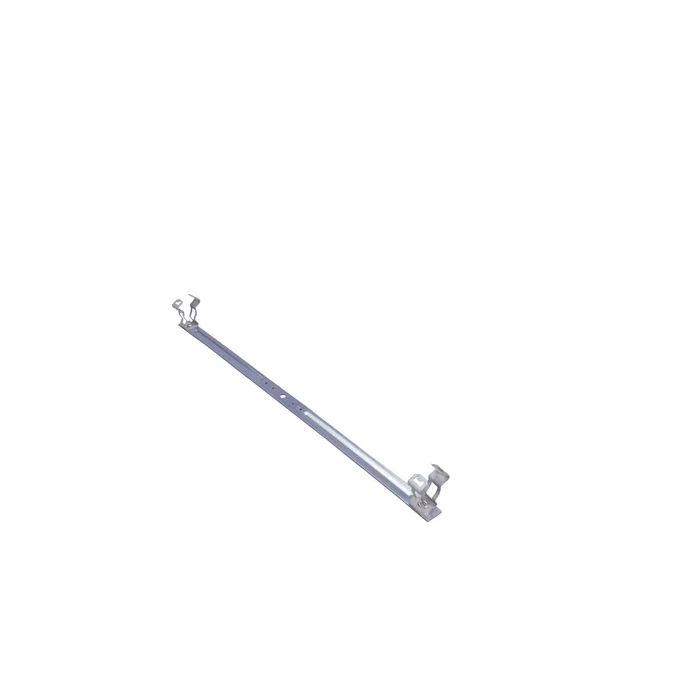

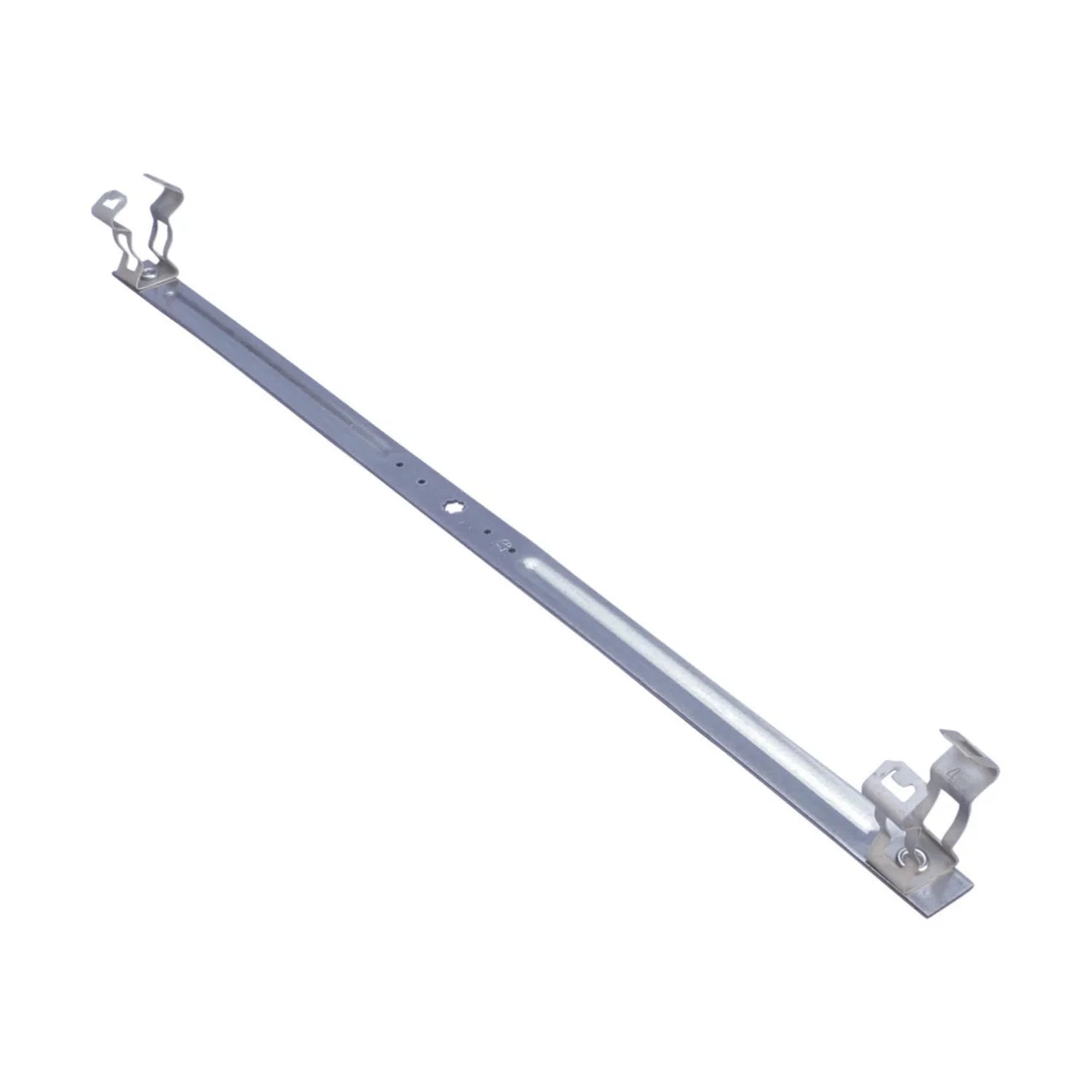

The NVENT 812MB18A is a B18 Combination Snap Closed Box/Conduit Hanger designed for supporting horizontal electrical boxes and EMT conduit. Constructed from spring steel with a Caddy Armor finish, this hanger accommodates 1/2 inch and 3/4 inch conduit sizes. It features a 1/4 inch plain hole for surface or threaded mounting, providing a secure solution for electrical installations.

• One assembly provides support for horizontal electrical box and/or conduit from threaded rod.
• Eliminates need for offset bending conduit.
• 66% less drop wires (rod/wire application).

Product Highlights

Efficiently supports horizontal electrical boxes and EMT conduit, simplifying installation with a single assembly.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: 812MB18A
• Country of Origin: USA

Technical Specifications

• Type: Combination Snap Closed
• Finish: Caddy Armor, Pre-Galvanized
• Series: B18
• Conduit Size: 1/2 in, 3/4 in
• Mounting Type: Surface/Threaded
• Hole Size: 1/4 inch
• Hole Type: Plain
• Suitable For Use With: Horizontal Electrical Box and EMT Conduit
• Material: Spring Steel
• Application: Datacom, Telecom and Electrical Installation Applications
• Standards/Approvals: cULus Listed, NEC Certified, CEC Certified, BABA Compliant, RoHS Compliant
• Screw Included: No
