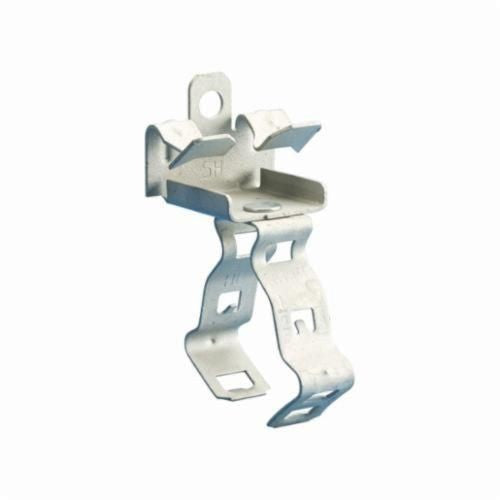

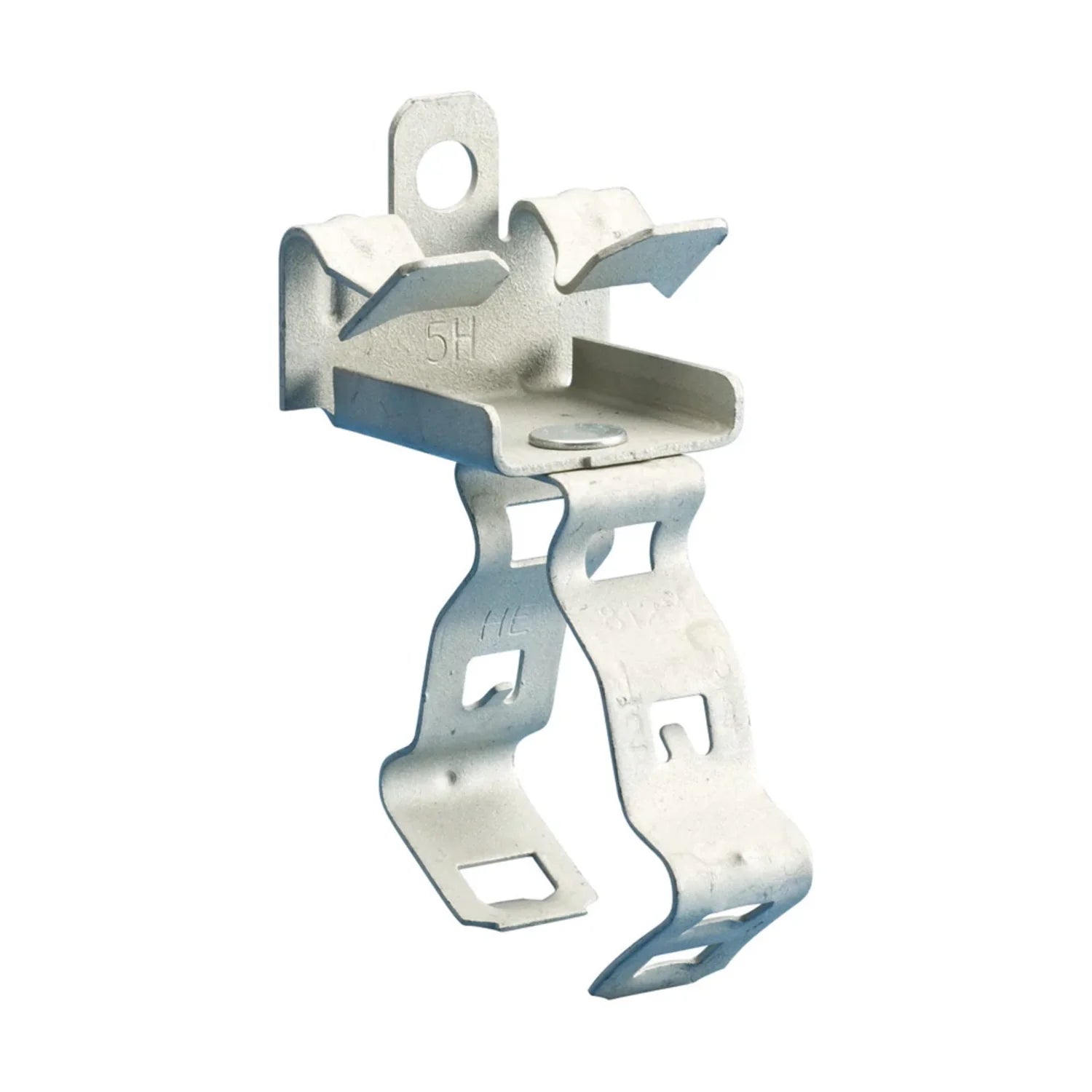

Nvent 812M912 Em-M Conduit/Pipe to Flange Clip, Spring St. 1/2 inches, 3/4 inches EMT, 9/16 inches–3/4 inches Flange

Product Description

The NVENT 812M912 is a conduit/pipe to flange clip that supports conduit, pipe, or cable from beam flanges. The snap close clip pivots a full 360° and requires only a hammer to install. It is made of spring steel with nVent CADDY Armour finish.

• Supports conduit/pipe or cable from beam flanges
• Snap close clip pivots a full 360°
• Requires only a hammer to install

Product Highlights

The NVENT CADDY 812M912 supports conduit/pipe or cable from beam flanges. The snap close clip pivots a full 360° and requires only a hammer to install.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: 812M912

Technical Specifications

• Material: Spring Steel
• Finish: nVent CADDY Armour
• EMT Conduit Size: 1/2";3/4"
• Rigid Conduit/Pipe Size: 1/2";3/4"
• Outer Diameter (OD): 0.710" - 1.18"
• Flange Thickness (FT): 9/16" - 3/4"
• Static Load (F): 75lb
• UPC: 782856182108
• EAN: 0782856182108
• Load Capacity: 75 lb
• Outside Diameter: 0.709 to 1.181 in
• Catalog ID: CAD812M912
• Conduit Size: 1/2 in
• Flange Size: 9/16 to 3/4 in
• Application: Datacom and Low Voltage
• Standard & Approvals: cULus Listed, RoHS Exempted
• Applications: Datacom and Low-Voltage, Electrical
• Load Capacity (N): 333.62 N
• Trade Size: 1/2 - 3/4 Inch
• Type: EM-M Conduit to Flange Clip
• Brand: nVent Caddy
• Sub Brand: CADDY
