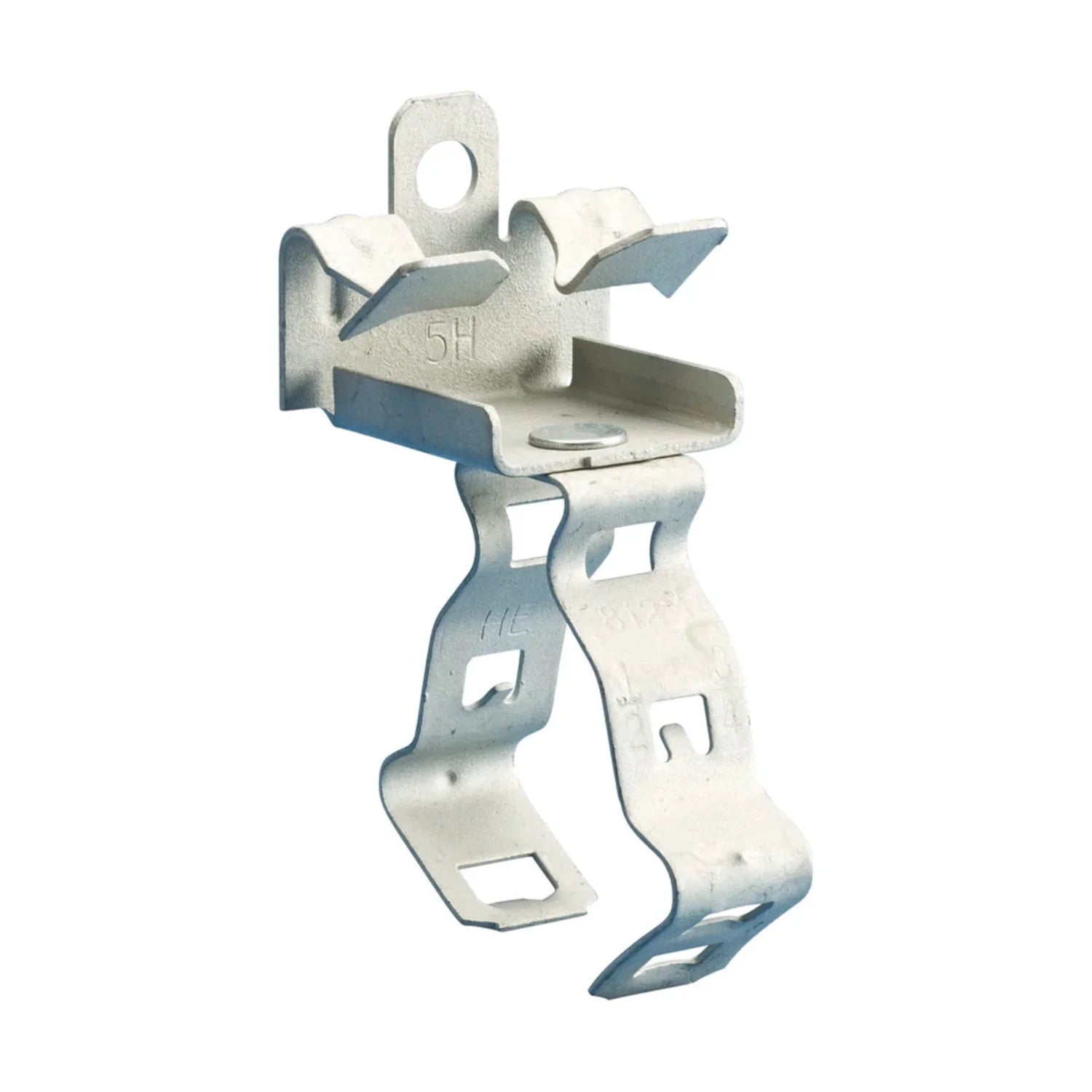

Nvent 812M58 clip flange to conduit/pipe 1/2 to 3/4 inch conduit, 5/16 to 1/2 inch flange

Product Description

The NVENT 812M58 is a conduit/pipe to flange clip designed to support conduit, pipe, or cable from beam flanges. This clip features a snap-close mechanism that pivots a full 360 degrees for versatile installation. It is compatible with 1/2 inch and 3/4 inch EMT/rigid conduit and accommodates flange thicknesses from 1/8 inch to 1/4 inch. Constructed from spring steel with an nVent CADDY Armour finish, it offers a static load capacity of 75 lbs.

• Supports conduit/pipe or cable from beam flanges
• Snap close clip pivots a full 360 degrees
• Requires only a hammer to install

Product Highlights

Supports conduit/pipe or cable from beam flanges with a 360-degree pivoting snap-close clip, requiring only a hammer for installation.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: 812M58
• Country of Origin: USA

Technical Specifications

• Type: Conduit Cable Clip, Snap Close
• Finish: nVent CADDY Armour
• Flange Size: 1/8" - 1/4"
• Conduit Size: 1/2", 3/4"
• Manufacturer: nVent
• Load Capacity: 75 lb
• Outside Diameter: 0.71 – 1.18"
• Material: Spring Steel
• Application: Datacom and Low Voltage and Electrical
• Series: EM-M
• Suitable For Use With: EMT Conduit
• Mount Position: Top
• Standard: BABA Compliant, RoHS Compliant
