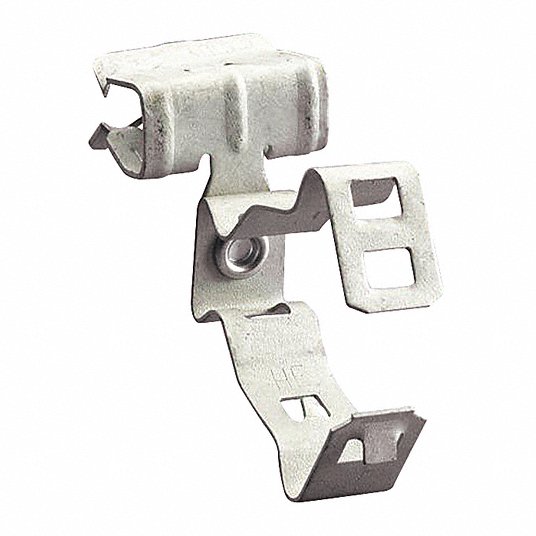

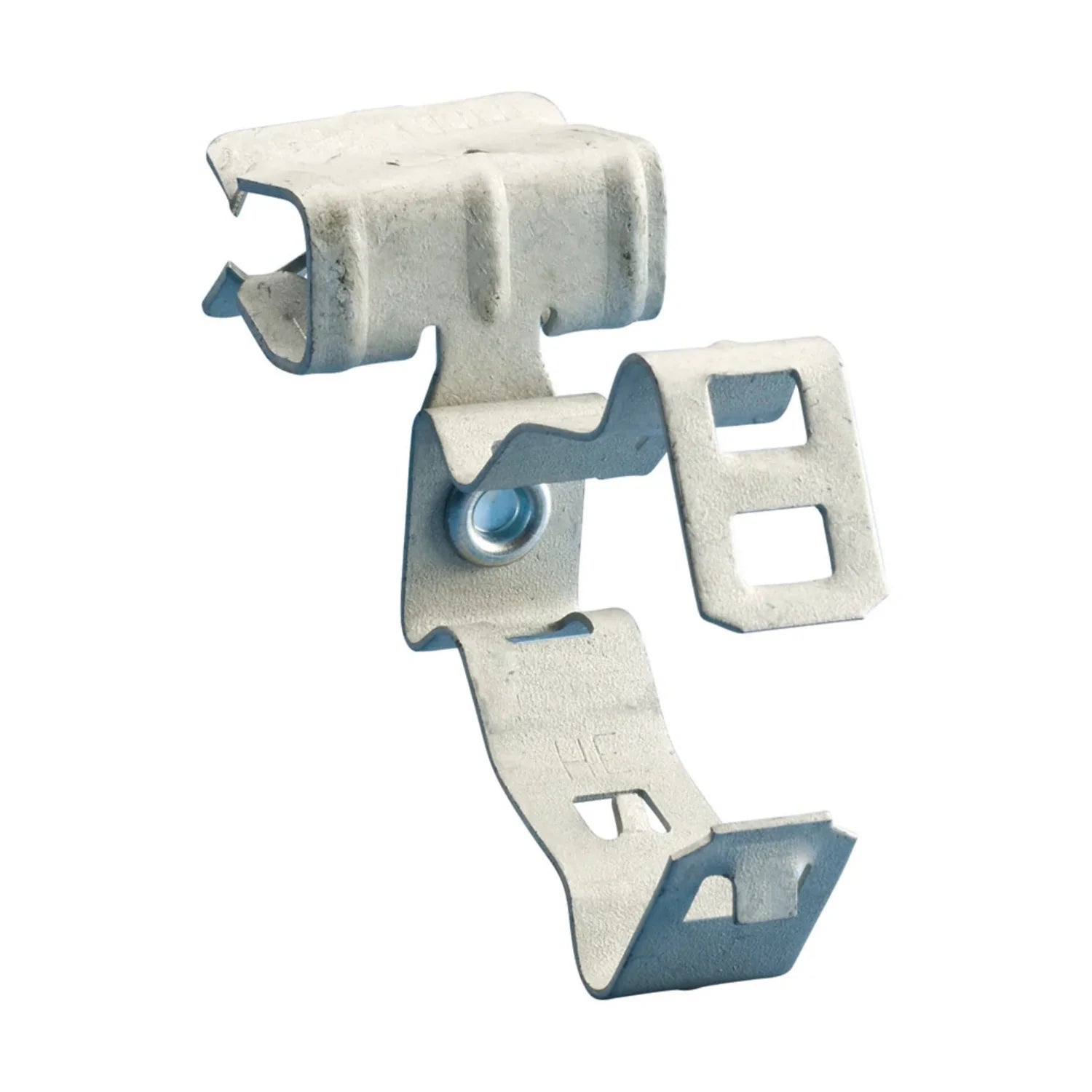

Nvent 812M24SM Conduit/Pipe to Flange Clip, Side Mount, 1/2 inches, 3/4 inches EMT, 1/8 inches–1/4 inches Flange

Product Description

The NVENT 812M24SM supports conduit, pipe, or cable from beam flanges. The snap close clip pivots a full 360° and requires only a hammer to install. It is made of spring steel with nVent CADDY armor finish. This clip is designed for 1/2" and 3/4" EMT conduit sizes and 1/8"–1/4" flange thicknesses.

• Supports conduit/pipe or cable from beam flanges
• Snap close clip pivots a full 360
• Requires only a hammer to install

Product Highlights

The NVENT 812M24SM provides a secure and versatile solution for mounting conduit and pipe to beam flanges.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: 812M24SM
• Country of Origin: US - United States

Technical Specifications

• Material: Steel
• Finish: nVent CADDY Armour
• EMT Conduit Size: 1/2";3/4"
• Rigid Conduit/Pipe Size: 1/2";3/4"
• Outer Diameter (OD): 0.710" - 1.18"
• Flange Thickness (FT): 1/8"
• Static Load (F): 25lb
• Trade Size: 3/4IN
• Application: Datacom and Low Voltage and Electrical Application
• Catalog Description (MFR): H-MSM Conduit/Pipe to Flange Clip, Side Mount, 1/2", 3/4" EMT, 1/8" –1/4" Flange
• Conduit Size: 1/2 in, 3/4 in EMT
• Label Description (MFR): SIDE MOUNT 1/2-3/4" EMT, 1/8-1
• Load Capacity: 25 lb
• Mounting Type: Side
• Outside Diameter: 0.709 to 1.181 in
• Product Name: Conduit/Pipe to Flange Clip
• Short Description: SIDE MOUNT 1/2-3/4" EMT, 1/8-1
• Standard: BABA Compliant, cULus Listed, RoHS Compliant
• Type: Snap Close
• Conduit/Flex Size: 3/4"
• Flange Size: 1/8 to 1/4 in
• Flange Thickness: 1/8 to 1/4 in
• Load Capacity Static: 25 lb Static
• Mount Position: Side
• Series: H-MSM
• Specifications: 0.709 to 1.181 in OD
• Suitable For Use With: EMT Conduit
• Use With: 1/2 or 3/4 in. EMT Conduit
• Flange: 1/8 to 1/4 in.
• For Minimum Cable OD: 0.709 in
• For Maximum Cable OD: 1.181 in
• Compatible Conduit Trade Size: 1/2 in; 3/4 in
• Compatible Conduit Type: EMT
• Beam Flange Thickness: 1/8 in to 1/4 in
• Description/Special Features: Rotates 360
• Manufacturer Part Number: 812M24SM
