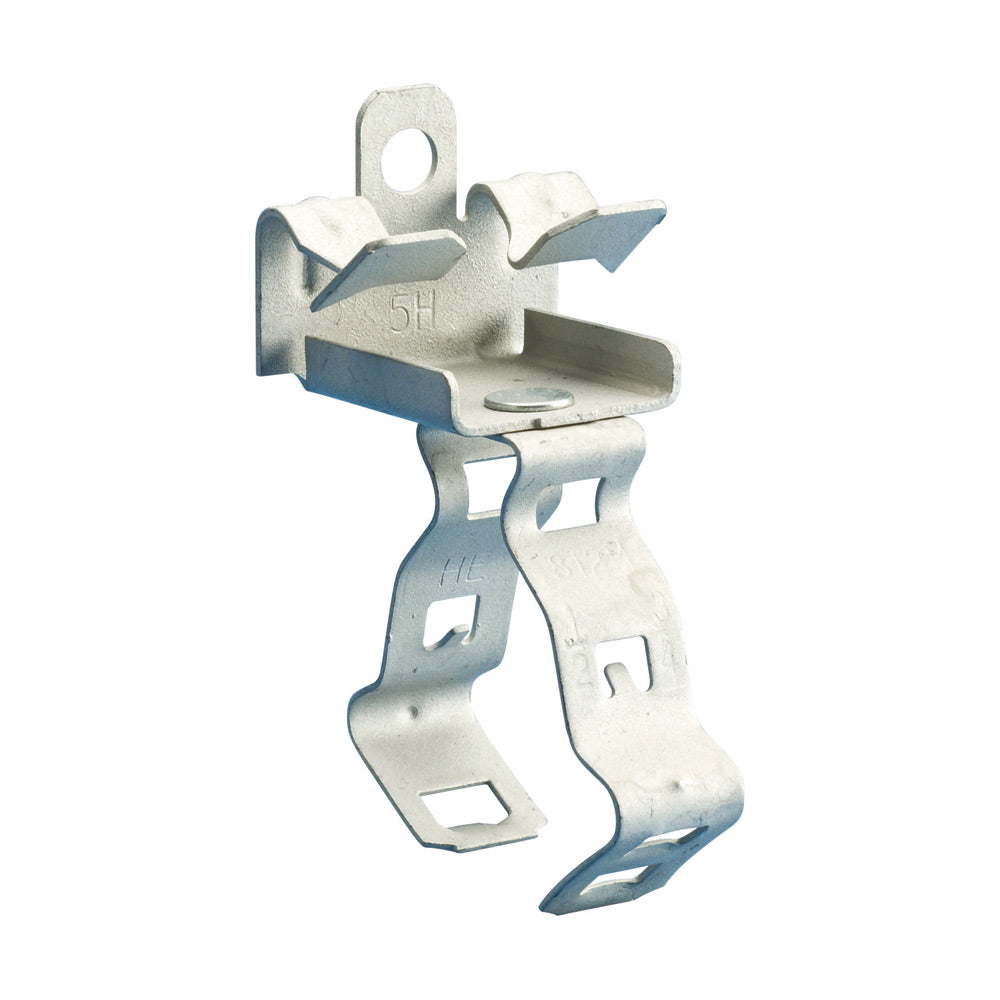

nVent 812M24 EM-M Conduit/Pipe to Flange Clip, 1/2 in, 3/4 in Conduit, 75 lb Load

Product Description

The nVent CADDY 812M24 is a conduit and pipe clip designed to secure conduit or pipe from beam flanges. This product is manufactured from spring steel and requires only a hammer for installation. The snap-close clip allows for a full 360-degree pivot, providing flexibility in installation.

• Supports conduit, pipe, or cable from beam flanges
• Snap close clip pivots a full 360 degrees
• Installs easily with just a hammer

Product Highlights

The 812M24 clip is essential for maintaining organized electrical installations. It is suitable for use with EMT conduit and can handle a static load of up to seventy-five pounds.

Product Information

Standard Information

• Manufacturer: nVent
• Part Number: 812M24

Technical Specifications

• Material: Spring Steel
• Flange Size: One-eighth to one-quarter inch
• Outside Diameter: Zero point seven zero nine to one point one eight one inches
• Conduit Size: One-half inch, three-quarter inch
• Load Capacity: Seventy-five pounds
• Standard: cULus Listed
• Suitable For Use With: EMT Conduit
• Type: Snap Close
