Nvent 812M24 CADDY Conduit/Pipe to Flange Clip, 1/2 inches, 3/4 inches EMT

Product Description

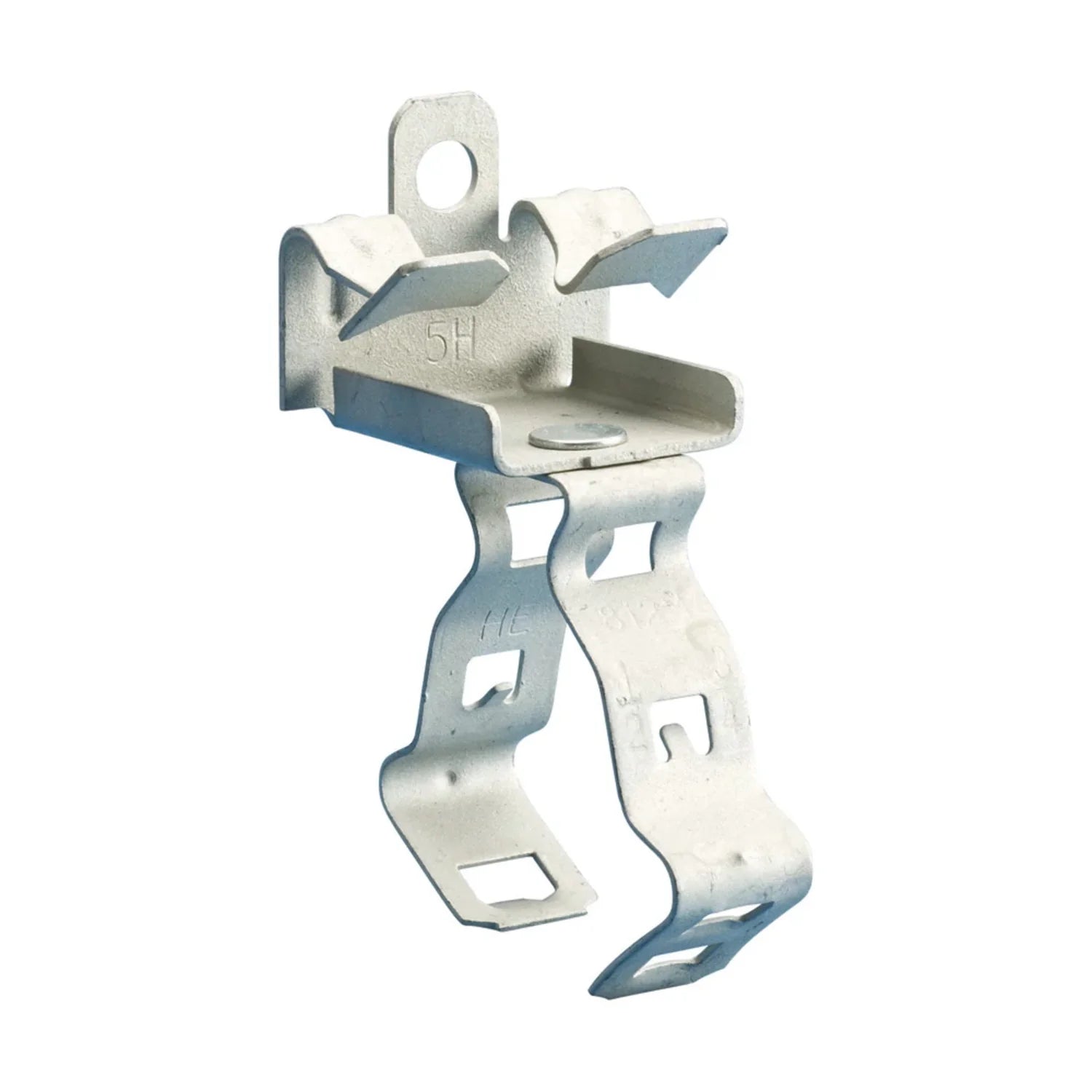

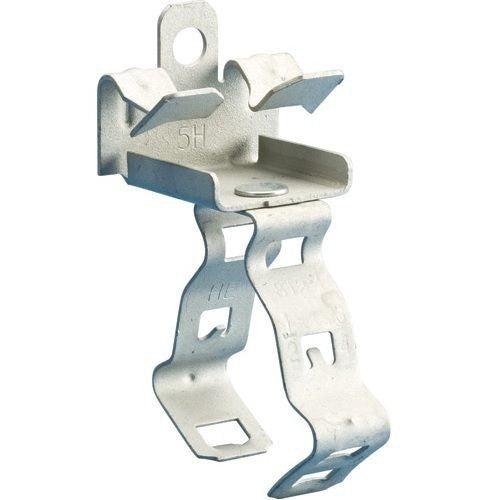

The NVENT 812M24 CADDY conduit/pipe to flange clip supports conduit, pipe, or cable from beam flanges. The snap close clip pivots a full 360 degrees and requires only a hammer to install. It is suitable for datacom and low voltage applications.

• Supports conduit/pipe or cable from beam flanges
• Snap close clip pivots a full 360 degree
• Requires only a hammer to install

Product Highlights

Supports conduit/pipe or cable from beam flanges. Snap close clip pivots a full 360 degrees. Requires only a hammer to install.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: 812M24

Technical Specifications

• Material: Spring Steel
• Finish: nVent CADDY Armour
• EMT Conduit Size: 1/2";3/4"
• Rigid Conduit/Pipe Size: 1/2";3/4"
• Outer Diameter (OD): 0.710" - 1.18"
• Flange Thickness (FT): 1/8" - 1/4"
• Static Load (F): 75lb
• Conduit Size: 1/2 in
• Flange Size: 1/8 to 1/4 in
• Load Capacity: 75 lb
• Outside Diameter: 0.709 to 1.181 in
• Application: Datacom and Low Voltage
• Standard & Approvals: cULus Listed, RoHS Exempted
