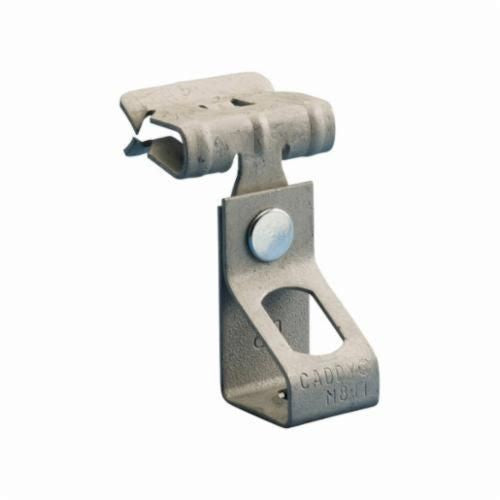

Nvent 6ti58 Threaded Rod Hanger Clip 200 Lb Spring Steel

Product Description

The NVENT 6ti58 is an H-Ti/T Rod to Flange Clip designed to suspend threaded rod from structural flanges in commercial and industrial installations. Constructed from electro-galvanized spring steel, it handles a rated load capacity of 200 pounds and accepts flanges ranging from 5/16 to 1/2 inches in thickness. The clip attaches directly to a beam or structural flange without drilling or welding, providing a fast, code-compliant anchor point for threaded rod drops. It is cULus Listed, confirming compliance with recognized safety standards. Mechanical, electrical, and plumbing contractors rely on this clip to hang pipe, conduit, duct, and cable support systems from structural steel.

The NVENT 6ti58 is suited for a wide range of building systems and trade applications. It supports acoustical ceiling and partitioning work, datacom and low-voltage cable management, electrical conduit runs, fire sprinkler systems, HVAC ductwork and equipment drops, and plumbing and refrigeration piping. The clip is appropriate for both new construction and retrofit projects where structural flanges are accessible and a threaded rod hanger point is needed without welding or powder-actuated fasteners.

Key Features

• Rated 200 lb load capacity for dependable single-point rod suspension
• Accepts flange thicknesses from 5/16 to 1/2 inches
• Electro-galvanized spring steel construction for corrosion resistance in typical indoor environments
• H-Ti/T clip design installs without drilling or welding to the structural flange
• cULus Listed — meets recognized performance and safety standards
• Suitable across multiple trades: electrical, HVAC, plumbing, fire sprinkler, datacom, and ceiling systems

Compatibility

Designed for use with structural flanges measuring 5/16 to 1/2 inches in thickness. Suitable for acoustical, ceiling and partitioning, datacom and low-voltage, electrical, fire sprinkler, HVAC, plumbing, and refrigeration threaded rod hanger applications.

Installation Notes

Installation is typically performed by licensed mechanical, electrical, or plumbing contractors in accordance with applicable building codes. Before installing or adjusting any hanger clip on an energized or pressurized system, de-energize electrical circuits and isolate piping as required by the applicable trade codes. Confirm that the structural flange falls within the 5/16 to 1/2 inch thickness range before seating the clip. Do not exceed the 200 lb rated load capacity.

Technical Specifications

• Type: H-Ti/T Rod to Flange Clip
• Load Capacity: 200 lb
• Flange Size: 5/16 to 1/2 inches
• Material: Spring Steel
• Finish: Electro Galvanized
• Standards and Approvals: cULus Listed
• Application: Acoustical, ceiling and partitioning, datacom and low voltage, electrical, fire sprinkler, HVAC, plumbing and refrigeration

Standard Information

• Brand: NVENT
• Manufacturer Part Number: 6ti58
