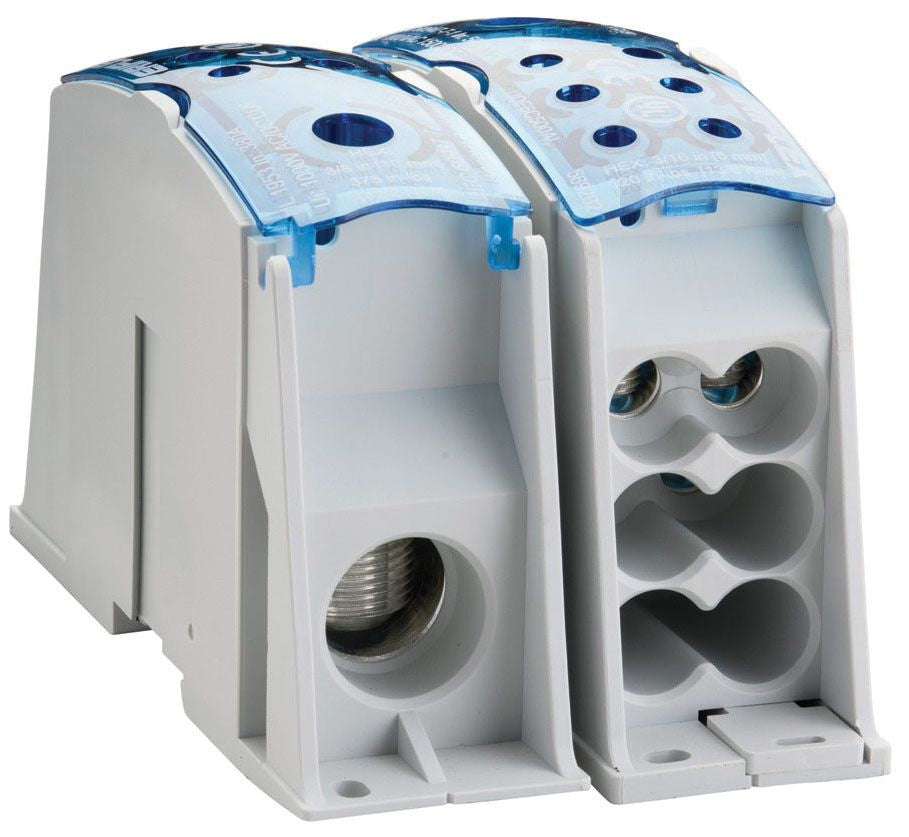

nVent 569201 UD6C500AL ERICO BLOCK SINGLE POLE DISTRIBUTION

Product Description

The nVent ERIFLEX Distribution Block with MPN 569201 is designed for power distribution in various electrical applications. This single pole distribution block supports voltages of up to 1000 VAC/VDC and 1500 VDC with a current capacity of 380/500 A. The block features one line primary connection and six load secondary connections, accommodating wire sizes from 3/0 AWG to 500 kcmil on the line side and #8 to 1/0 AWG on the load side. It is constructed with aluminum and thermoplastic materials.

• Voltage rating: 1000 VAC/VDC, 1500 VDC
• Short circuit current rating: 100 kA
• Dimensions: 1.72 inches wide x 5.83 inches deep x 3.55 inches high

Product Highlights

This distribution block is modular and can be snapped together to build multi-pole setups. It is equipped with a screw retaining cover that is both hinged and removable for easy access.

Product Information

Standard Information

• Manufacturer: nVent
• Manufacturer Part Number: 569201

Technical Specifications

• Amperage Rating: 380/500 A
• Application: For visual inspection of conductor and confirmation of connection
• Material: Aluminum/Thermoplastic
• Number of Poles: 1
• Primary Connections Pole: (1) Line
• Secondary Connection Pole: (6) Load
• Short Circuit Current Rating: 100 kA
• Standards/Approvals: CSA Certified, IEC 60947-7-1, UL 1953/94 V-0
• Finish: Tin Plated
• Dimensions: 1.72 inches wide x 5.83 inches deep x 3.55 inches high
