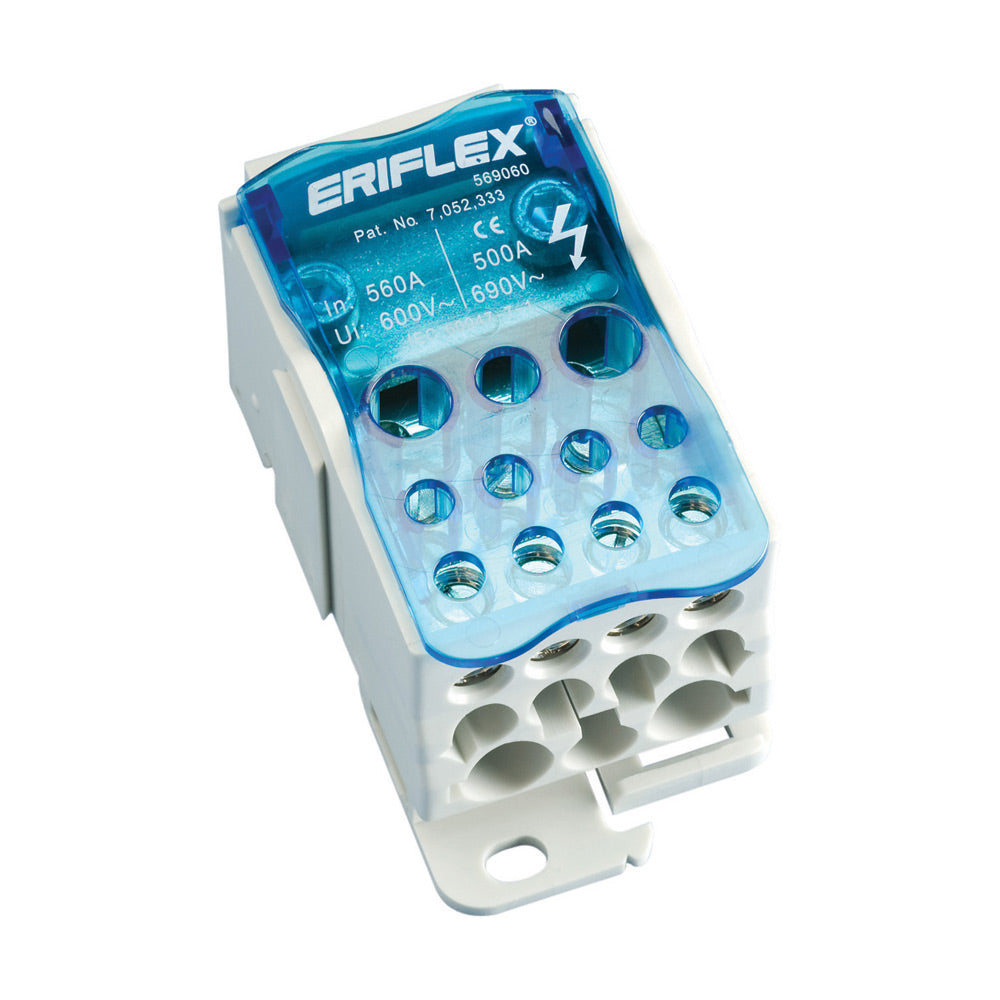

nVent 569060 UDF500A ERICO Distribution Block Single Pole Gangable 335AMP UL 600V Direct Connection of Flexibar Output

Product Description

The nVent ERIFLEX 569060 Distribution Block is designed for effective power distribution. This single pole unit operates at 600 VAC/1000 VAC/VDC with an amperage rating of 500/335 A. It allows direct connections of Flexibar output with multiple wire sizes.

• UL approved for safety
• Multiple wire connections ranging from 10 AWG to 1 AWG
• Mountable on DIN rail or panel

Product Highlights

This versatile distribution block is suitable for various applications in electrical systems and is designed to ensure secure and safe connections.

Product Information

Standard Information

• Manufacturer: nVent
• Manufacturer Part Number: 569060

Technical Specifications

• Amperage Rating: 500/335 A
• Voltage Rating: 600 VAC/1000 VAC/VDC
• Dimensions: 3.79 in H x 1.93 in W x 1.99 in D
• Material: Copper/Thermoplastic
• Finish: Tin Plated
• Number of Poles: 1
• Primary Connections Pole: 1
• Secondary Connection Pole: 11/Pole
• Short Circuit Current Rating: 10 kA
• Standards/Approvals: UL 1059 E198301 | cUL CSA C22.2 No. 158 | E198301 | UL 94V-0 | CSA C22.2 No. 158-10, 70044370 | IEC 60947-7-1 | IEC 60529 | IP20 | EAC 0234267 | RoHS Compliant
