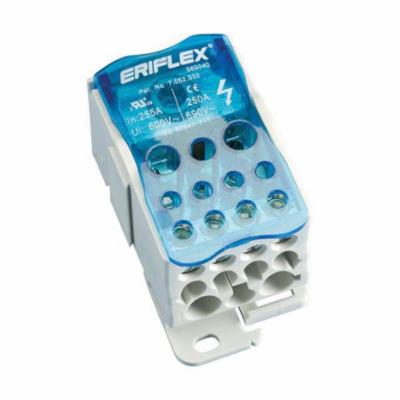

nVent 569040 UD250A ERICO Distribution Block 600 VAC 1 Pole 254 AMP 6-250 MCM

Product Description

The nVent ERICO 569040 Distribution Block is designed for safe and effective electrical distribution. It supports voltages up to six hundred VAC and is suitable for both AC and DC applications. The block features a capacity of two hundred fifty to two hundred fifty-five amps. It includes various wire connection options ensuring versatility in the field.

• Compatible with 6 AWG to 250 kcmil wire sizes.
• Offers 11 secondary load connections for efficient distribution.
• Constructed from copper and thermoplastic materials ensuring durability.

Product Highlights

This distribution block supports easy installation with its DIN mount design. It allows for visual inspection of connections, ensuring reliability and safety. With a short circuit current rating of fifty-one kA, it meets rigorous electrical standards.

Product Information

Standard Information

• Manufacturer: nVent
• MPN: 569040

Technical Specifications

• Amperage Rating: 250/255 A
• Voltage Rating: 600 VAC/1000 VAC/VDC
• Number of Poles: 1
• Primary Connections per Pole: 1
• Secondary Connections per Pole: 11
• Dimensions: 3.79 in H x 1.93 in W x 1.99 in D
• Material: Copper/Thermoplastic
• Short Circuit Current Rating: 51/100 kA
• Standards/Approvals: CE Marked|CSA 70044370|EAC 0234267|IEC 60947-7-1|RoHS Compliant|UL 1059
