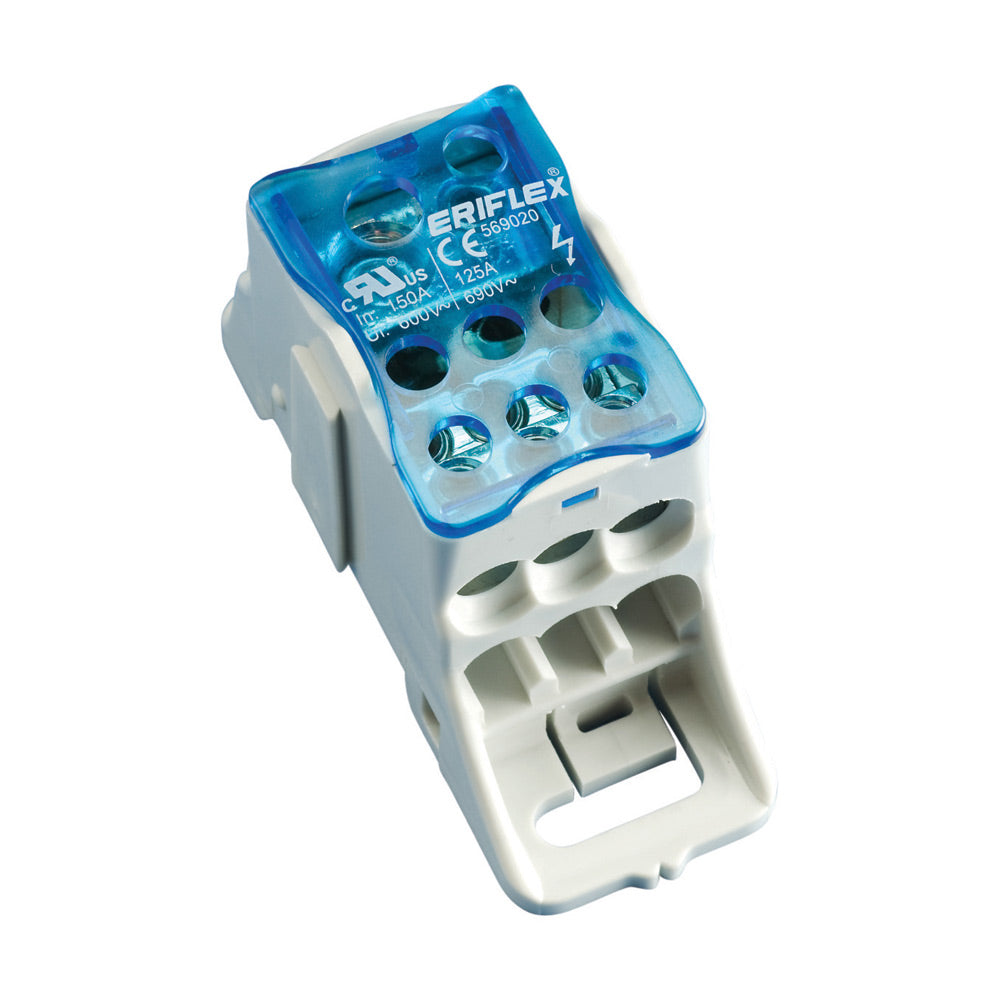

nVent 569020 UDJ125A ERICO Distribution Block DIN Mount 1Pole Gangable 150AMP 600V

Product Description

The nVent ERIFLEX 569020 Distribution Block offers reliable performance for electrical installations. Rated for 600 VAC/1000 VAC/VDC and capable of handling 125/150 A, this block allows for seamless integration into various applications.

• 600 VAC/1000 VAC/VDC operation
• Accepts wire sizes from 10 to 4 AWG
• One primary and seven secondary connections

Product Highlights

Designed for DIN rail mounting, this block is ideal for enhancing electrical distribution setups.

Product Information

Standard Information

• Manufacturer: nVent
• UPC: 78285659418

Technical Specifications

• Amperage Rating: 125/150 A
• Voltage Rating: 600 VAC/1000 VAC/VDC
• Dimensions: 3.04 inches H x 1.16 inches W x 1.82 inches D
• Material: Copper/Thermoplastic
• Finish: Tin Plated
• Number of Poles: 1
• Series: ERI2
• Standards/Approvals: UL 1059 E198301 | cUL CSA C22.2 No. 158 | IEC 60947-7-1 | RoHS Compliant
• Short Circuit Current Rating: 100 kA
