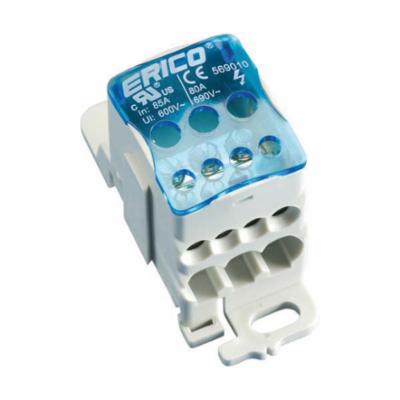

nVent 569010 UD80A ERICO Distribution Block DIN Mount 1Pole Gangable 85AMP 600V UL

Product Description

nVent 569010 is a distribution block suitable for applications up to 600 VAC. This product is designed to manage power efficiently with the capacity to handle 80/85 amps. It features one pole with various wire output configurations including 16 to 4 AWG and 16 to 8 AWG. The robust construction utilizes copper and thermoplastic materials for durability.

• One line side connection with six load side connections.
• Designed for 600 VAC/1000 VAC/VDC applications.
• Gangable design for building multi-pole power blocks.

Product Highlights

This distribution block is built to enhance electrical safety and performance in various environments. It allows for visual inspection of connections, ensuring reliability and ease of maintenance.

Product Information

Standard Information

• Manufacturer: nVent
• Product Number: 569010

Technical Specifications

• Amperage Rating: 80/85 A
• Voltage Rating: 600 VAC/1000 VAC/VDC
• Number of Poles: 1
• Primary Connections Pole: 1
• Secondary Connection Pole: 6
• Dimensions: 2.72 inches H x 1.18 inches W x 1.82 inches D
• Material: Copper/Thermoplastic
• Short Circuit Current Rating: 22/100 kA; 100 kA
• Standards/Approvals: CE Marked, RoHS Compliant, IP20
• Finish: Tinned; Tin Plated
