Nvent 4tibsf Threaded Rod Hanger Shot-fire Bracket 1/4 in

Product Description

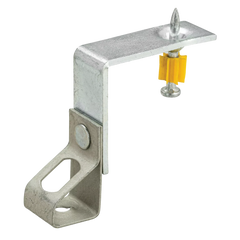

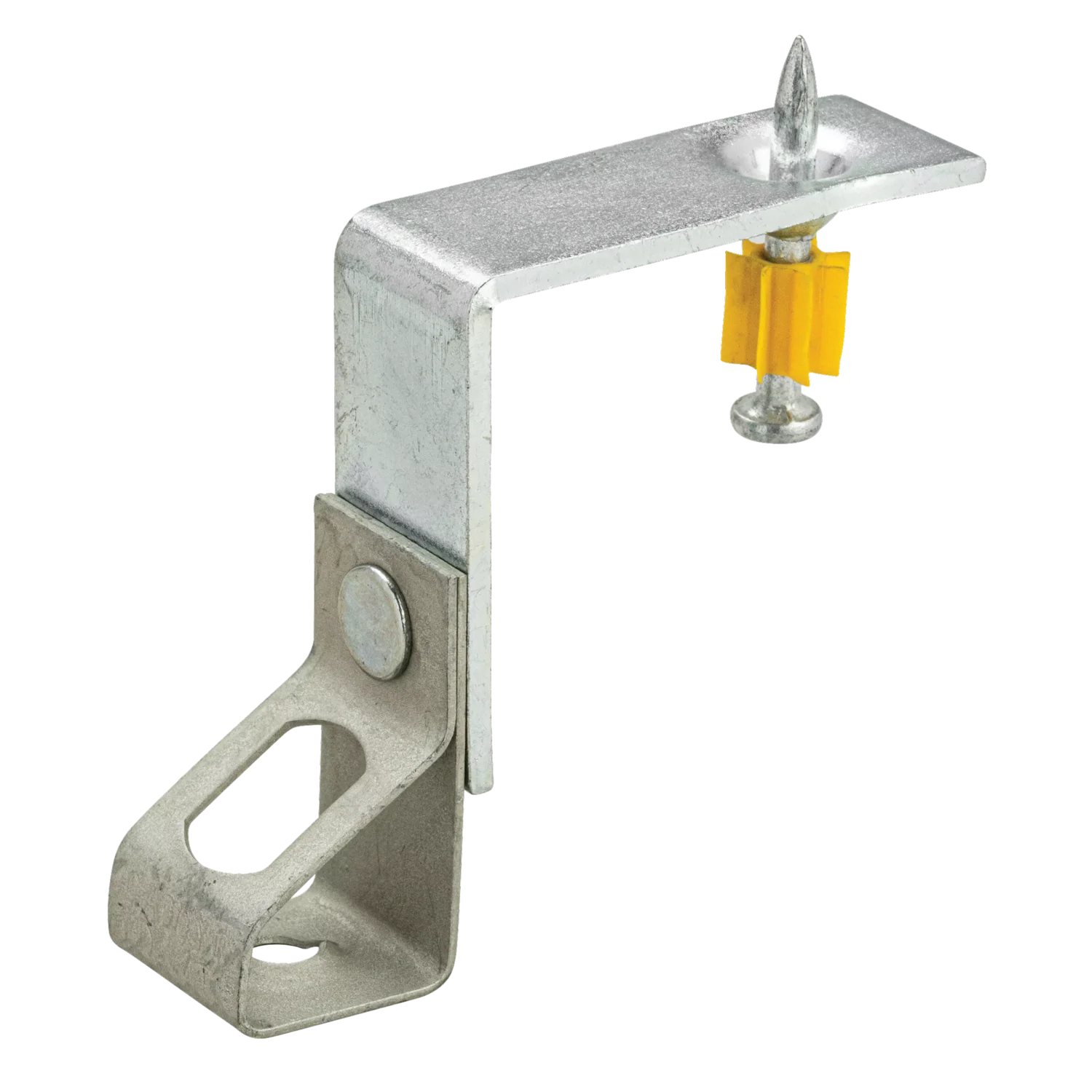

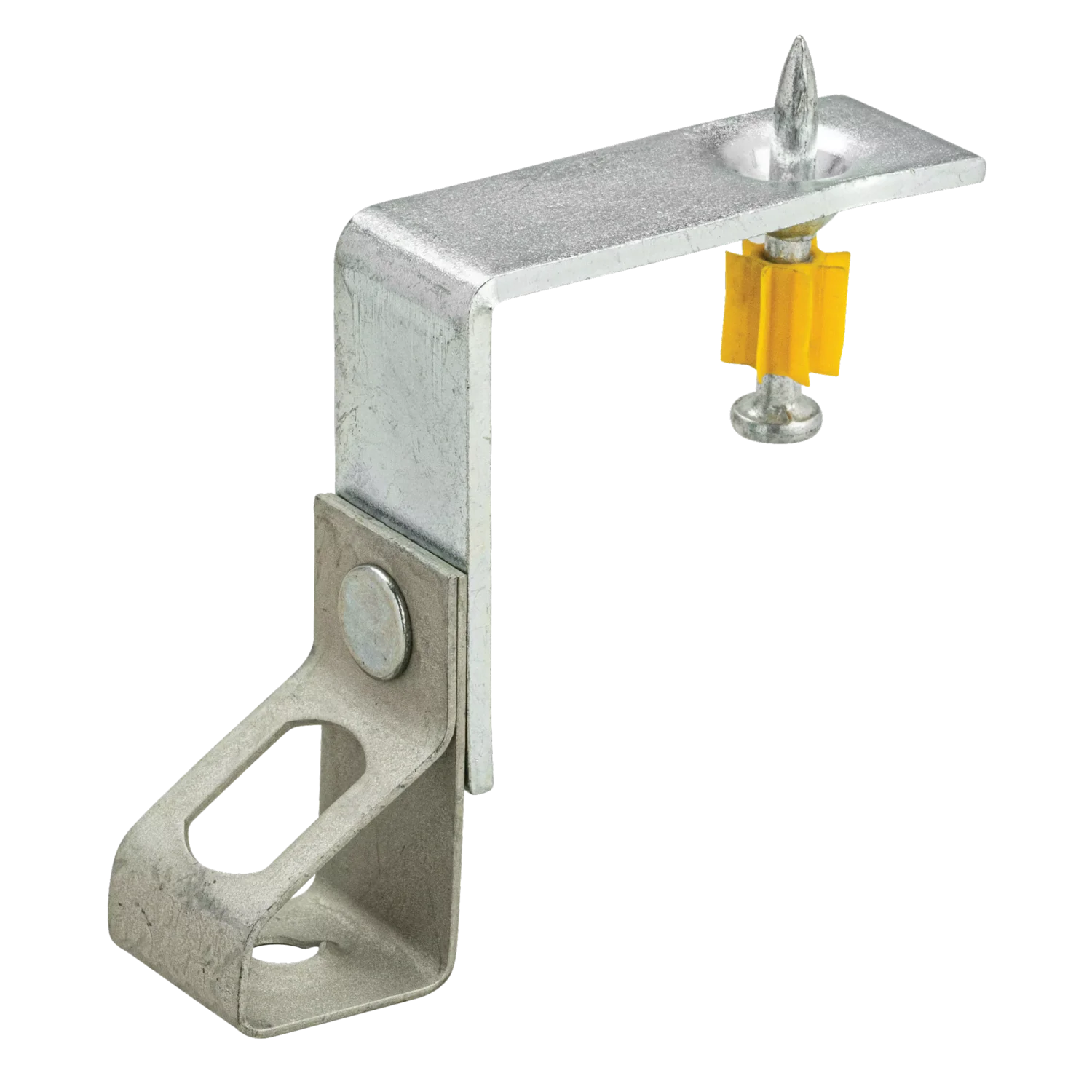

The NVENT 4tibsf is a threaded rod hanger designed to suspend 1/4-inch threaded rod directly from concrete, steel, or composite metal decking without requiring additional fastening hardware. The assembly arrives pre-configured with a shot-fire bracket and a pre-assembled drive pin sourced from DEWALT, allowing installation to proceed without separate component sourcing. The drive pin installs using powder-actuated or single-shot gas-actuated tools, making this hanger well-suited for mechanical, electrical, and plumbing suspension work where speed and structural reliability are both required. An ICC-ES ESR-2024 evaluation report is available for the drive pin, supporting code-compliance documentation on commercial and industrial projects.

This hanger is used in commercial and industrial construction and retrofit applications where threaded rod must be suspended overhead from structural concrete decks, steel beam flanges, or composite metal decking. It is appropriate for HVAC ductwork support, conduit trapeze runs, pipe hangers, and similar overhead mechanical system suspension tasks. The integrated drive pin and pre-assembled bracket reduce installation steps, making it a practical choice for contractors working on large-scale suspended-system installations where repetitive anchoring is required.

Key Features

• Accepts 1/4-inch threaded rod — no additional hardware required for rod suspension
• Pre-assembled drive pin from DEWALT included with shot-fire bracket
• Compatible with powder-actuated and single-shot gas-actuated installation tools
• Attaches directly to concrete, steel, and composite metal decking substrates
• ICC-ES ESR-2024 evaluation report available for the drive pin, supporting code documentation
• EG finish with Caddy Armour protective coating for corrosion resistance

Compatibility

Designed for use with 1/4-inch threaded rod in overhead suspension applications on concrete, steel, and composite metal decking substrates. Drive pin is compatible with DEWALT powder-actuated and single-shot gas-actuated tools as noted in ICC-ES ESR-2024 documentation.

Installation Notes

Installation should be performed by a qualified mechanical, electrical, or plumbing contractor familiar with powder-actuated fastening tools and applicable building codes. Confirm substrate type and load rating against the ICC-ES ESR-2024 evaluation report before driving the pin. Always follow the tool manufacturer safety procedures when operating powder-actuated or gas-actuated tools, including use of appropriate PPE. Verify that the installed hanger and rod assembly meet local code requirements for the intended suspended load.

Technical Specifications

• Rod Size: 1/4 inches
• Finish: EG (Electro-Galvanized) with Caddy Armour coating
• Compatible Substrates: Concrete, steel, composite metal decking
• Drive Pin Source: DEWALT pre-assembled
• Evaluation Report: ICC-ES ESR-2024 (drive pin)
• Installation Tool Type: Powder-actuated or single-shot gas-actuated

Standard Information

• Brand: NVENT
• Manufacturer Part Number: 4tibsf
