Nvent 4TIB Threaded Rod Hanger with Angle Bracket

Product Description

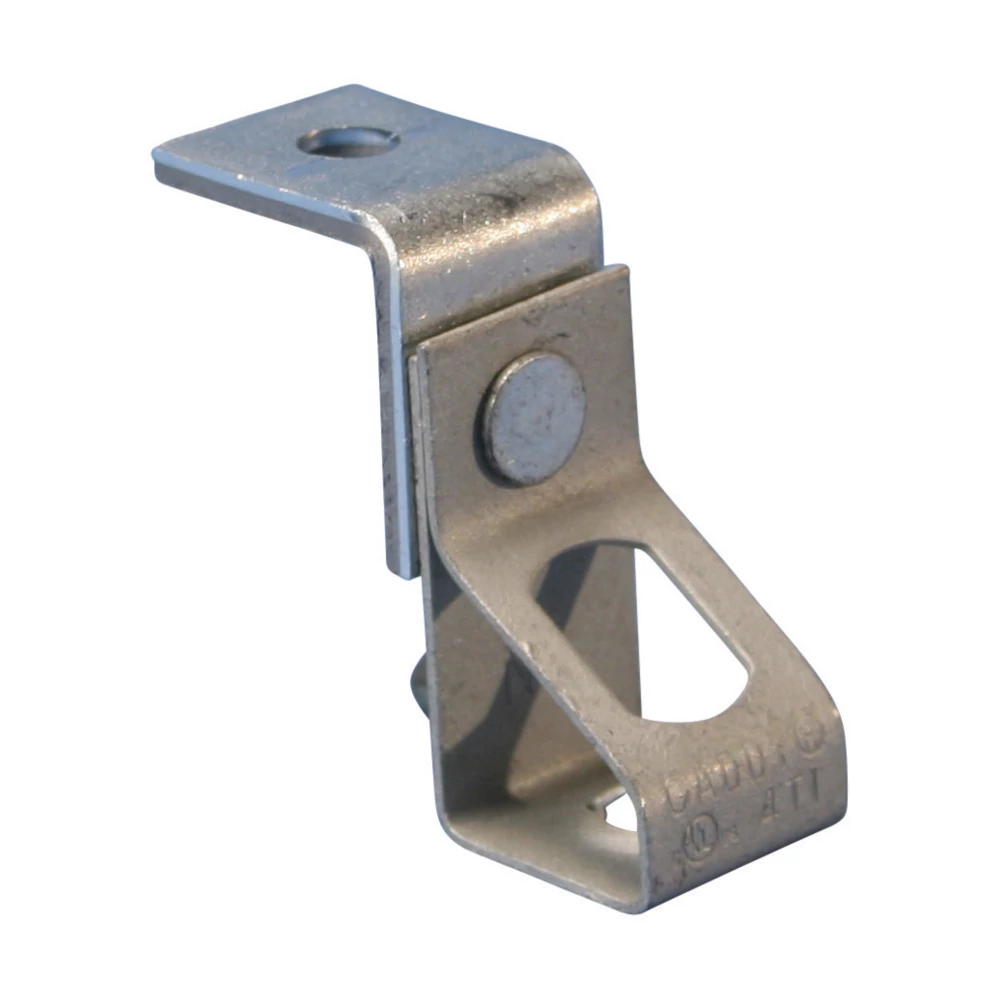

The NVENT 4TIB is a threaded rod hanger with angle bracket designed to support threaded rod installations from concrete ceilings and decks. The hanger features two 0.25-inch holes: one plain and one threaded, allowing attachment of a 1/4-inch threaded rod. This hardware is used in mechanical, electrical, and plumbing support systems where suspended rod hangers must anchor securely to overhead concrete or structural deck surfaces. Licensed tradespeople in HVAC, plumbing, and electrical contracting install this type of hanger as part of pipe, conduit, and equipment support assemblies.

The 4TIB is suited for both residential and commercial overhead support applications. It is typically installed where threaded rod must be anchored to a concrete ceiling or structural deck, providing a stable, adjustable suspension point for pipe hangers, conduit support, duct work, or other mechanical system components. The dual-hole design simplifies installation by accommodating both fastener and rod attachment in a single bracket.

Key Features

• Dual 0.25-inch holes: one plain for fastener attachment, one threaded for 1/4-inch rod connection
• Angle bracket design provides secure anchoring to concrete ceilings and structural decks
• Supports standard 1/4-inch threaded rod suspension assemblies
• Compact profile simplifies placement in tight overhead spaces
• Compatible with common mechanical, plumbing, and electrical support system configurations

Compatibility

Designed as an OEM-style replacement and standard-fit component for threaded rod support assemblies used in commercial and residential overhead suspension systems requiring 1/4-inch rod attachment.

Installation Notes

Installation is typically performed by licensed HVAC, plumbing, or electrical contractors following applicable IPC, IFGC, or NEC support spacing requirements. Power down or depressurize any adjacent system before working overhead. Secure the plain hole to the concrete anchor point before threading the rod into the threaded hole. Do not overtighten the threaded connection in a way that could strip the 1/4-inch threads.

Technical Specifications

• Hole 1 Size: 0.25 inches (plain)
• Hole 2 Size: 0.25 inches (threaded)
• Threaded Rod Size: 1/4 inch
• UPC: 782856264040

Standard Information

• Brand: NVENT
• Manufacturer Part Number: 4TIB
