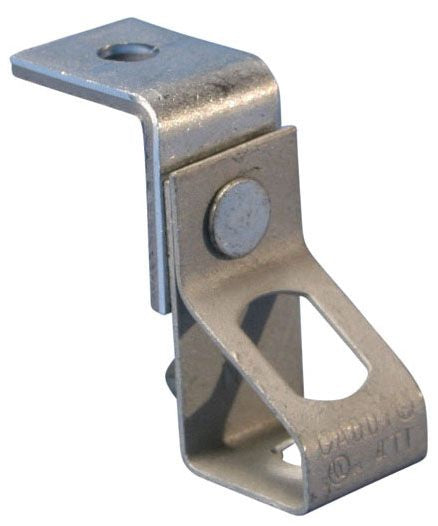

Nvent 4TIB Quarter Inch Angle Bracket Support

Product Description

The NVENT 4TIB is a quarter-inch angle bracket support designed for securing conduit, pipe, and related mechanical systems to structural surfaces. This type of bracket provides a rigid mounting point at a fixed angle, allowing trades to anchor runs cleanly against walls, beams, or overhead structures. At 6.5 pounds, the 4TIB is a solid-construction support fitting suited for commercial and industrial installation environments. Licensed electricians, pipefitters, and mechanical contractors typically deploy this hardware during rough-in and fit-out phases where consistent, code-compliant support spacing is required.

The 4TIB angle bracket support is used in applications where conduit, tubing, or pipe must be anchored at a structural angle point. It is appropriate for both new construction and retrofit installations across commercial, industrial, and light industrial settings. The bracket accommodates a quarter-inch fastener interface, making it compatible with standard threaded rod and fastener assemblies common in mechanical and electrical support systems.

Key Features

• Quarter-inch angle bracket design for rigid structural support of conduit and pipe
• Solid construction rated at 6.5 pounds, indicating heavy-duty build quality
• Compatible with standard quarter-inch threaded fastener systems
• Suitable for new construction and retrofit applications
• Appropriate for commercial and industrial mechanical and electrical installations

Compatibility

Designed as an OEM-style angle bracket support for use with standard quarter-inch fastener and threaded rod support assemblies in mechanical and electrical installations.

Installation Notes

Installation is typically performed by licensed electricians, pipefitters, or mechanical contractors. De-energize all circuits and shut off relevant systems before working in the installation area. Fastener torque and spacing must comply with applicable local codes and NEC or IPC requirements as relevant to the system being supported. Do not exceed the bracket load rating for the intended application.

Technical Specifications

• Weight: 6.5 pounds
• Fastener Size: 1/4 inch
• UPC: 78285626404

Standard Information

• Brand: NVENT
• Manufacturer Part Number: 4TIB
