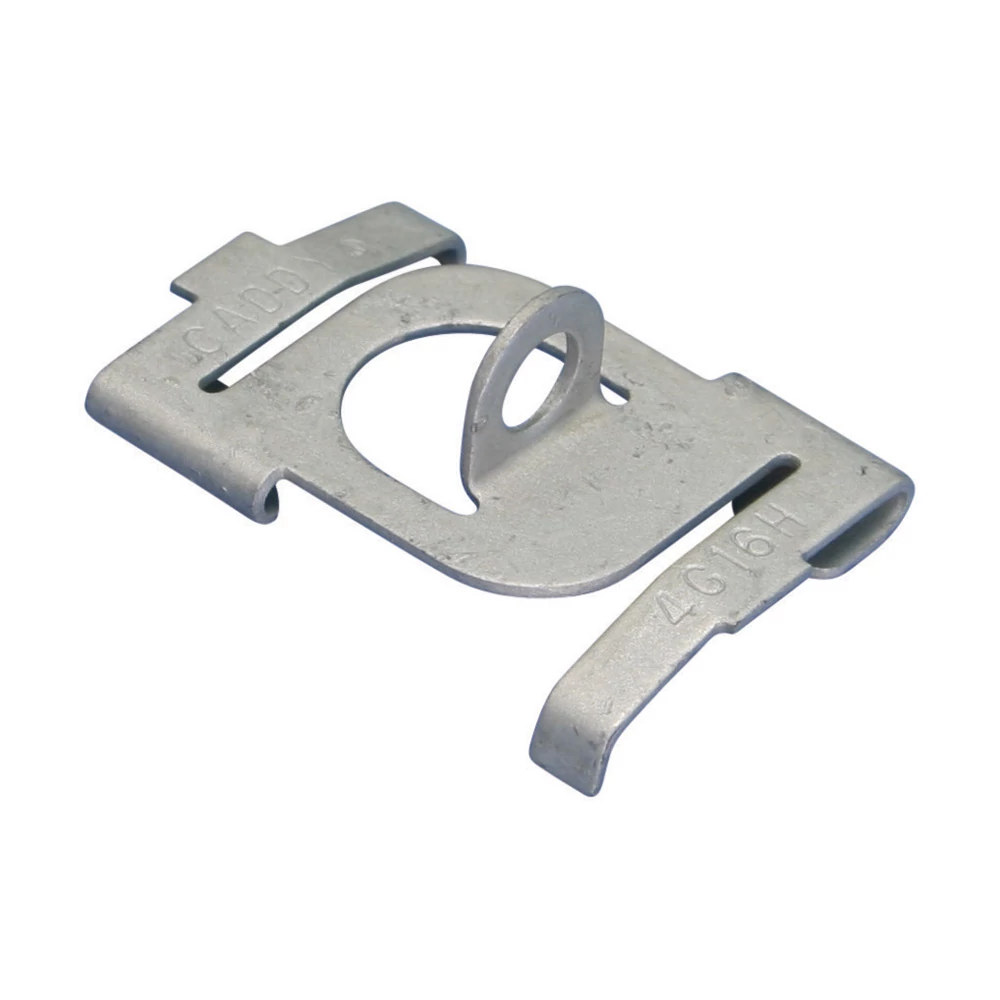

Nvent 4G16H Twist Clip 15/16 Inch T-grid Plain Hole

Product Description

The NVENT 4G16H is a twist-to-install clip designed to create a secure mounting point for wire and chain on acoustical T-grid ceiling systems. The clip features a 1/4 inch plain hole and mounts to 15/16 inch T-grid without tools, using a simple 90-degree twist-lock action. This hardware is used in commercial and institutional ceiling installations where lightweight suspended loads need to attach cleanly to exposed grid. Electricians, ceiling contractors, and mechanical trades commonly install this clip when routing support wire for conduit, ductwork, or signage above acoustical tile ceilings.

The 4G16H is suited for standard 15/16 inch T-grid acoustical ceiling systems, including drop-ceiling applications in commercial offices, schools, hospitals, and retail spaces. The plain hole accepts wire, hooks, and chain for suspending lightweight items directly from the ceiling grid. The aluminum painted finish resists corrosion in typical interior environments.

Key Features

• 90-degree twist-lock installation — no tools required for mounting to T-grid
• 1/4 inch plain hole accommodates standard wire and chain hardware
• Fits 15/16 inch T-grid acoustical ceiling systems
• Aluminum painted finish for corrosion resistance in interior applications
• Compact profile minimizes interference with tile and grid clearance

Compatibility

Designed as an OEM-style mounting clip for standard 15/16 inch acoustical T-grid ceiling systems in commercial and institutional interior installations.

Installation Notes

This clip is typically installed by ceiling contractors, electricians, or mechanical trades during ceiling grid assembly or retrofit work. Insert the clip into the T-grid slot and rotate 90 degrees to lock in place before attaching any suspended load. Verify that the combined weight of suspended wire, chain, and load does not exceed the load rating of the grid system. Follow applicable building codes and manufacturer guidelines for suspended ceiling load limits.

Technical Specifications

• Hole Size: 1/4 inch plain
• Maximum Flange: 1/16 inch
• Grid Size: 15/16 inch T-Grid
• Material: Aluminum, Painted
• Installation Method: 90-degree twist-lock
• UPC: 782856622000

Standard Information

• Brand: NVENT
• Manufacturer Part Number: 4G16H
