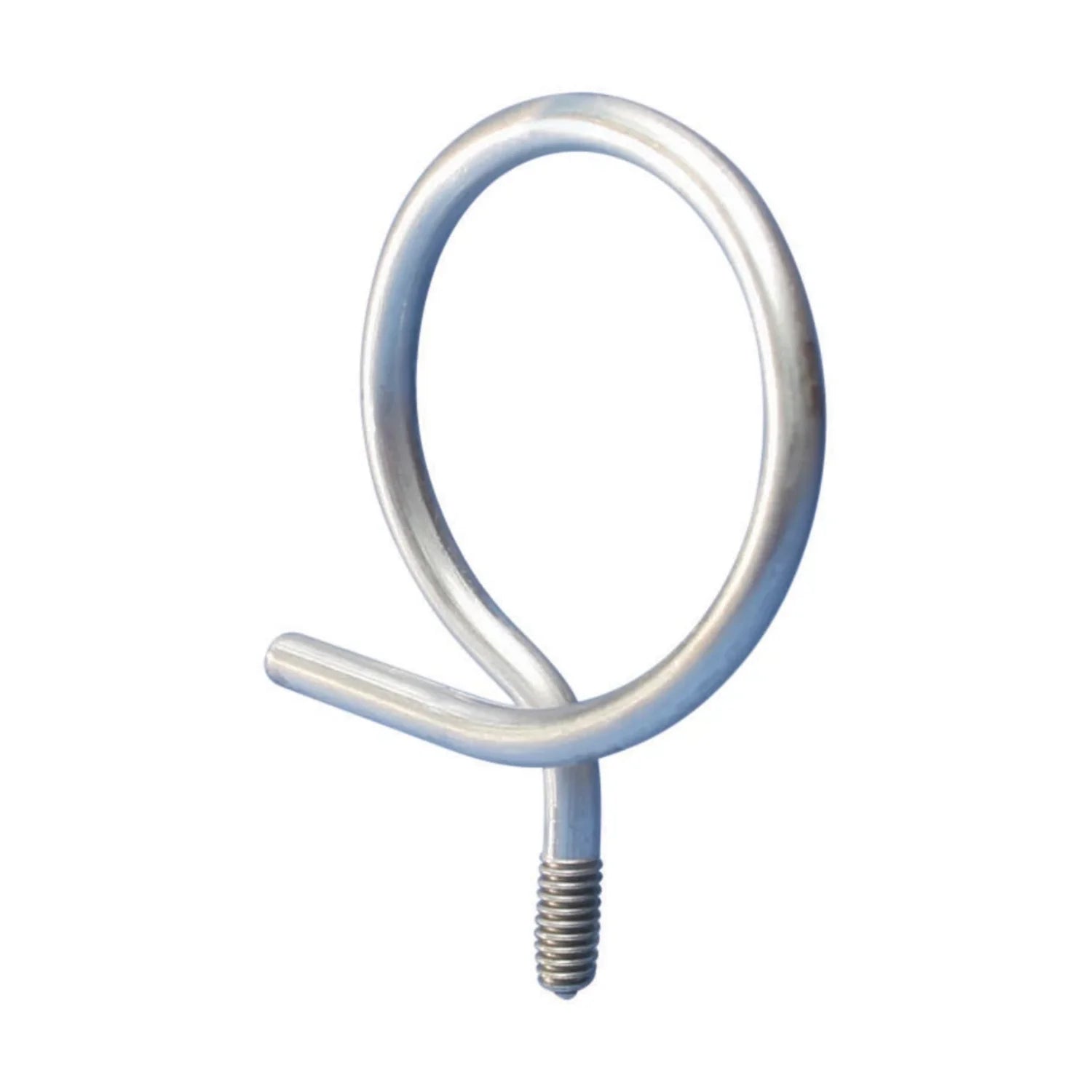

Nvent 4brt64 Threaded Bridle Ring 4 in Metal

Product Description

The NVENT 4brt64 is a threaded bridle ring designed to support and route cables in commercial and industrial electrical installations. With a 4-inch diameter ring and a 1/4-inch threaded screw for attachment, this metal bridle ring provides a secure anchor point for bundled cables, conduit, or wire bundles. It is intended for overhead cable management applications where a reliable, fixed support point is required. Electricians and low-voltage installers use bridle rings to organize cable runs and maintain proper bend radius across long spans.

This bridle ring is suited for use in commercial buildings, industrial facilities, and data or communications installations. It can be combined with compatible nVent CADDY fasteners to mount from structural flanges, purlins, drop wires, T-bar grid systems, and similar overhead supports. The threaded screw design allows attachment to a range of fastener types without additional hardware, making it a practical choice for mixed cable support runs in ceiling plenum and open-ceiling environments.

Key Features

• 4-inch inside diameter ring accommodates large cable bundles or grouped conduit runs
• 1/4-inch threaded screw for direct connection to compatible CADDY fasteners and support hardware
• Metal construction provides structural rigidity and durability in overhead applications
• Compatible with multiple mounting configurations including flange, purlin, drop wire, and T-grid systems
• Designed to combine with other nVent CADDY fasteners for flexible cable routing layouts

Compatibility

Designed for use with nVent CADDY fasteners and compatible support hardware for mounting from flanges, purlins, drop wires, and T-bar grid systems in cable support applications.

Installation Notes

Installation is typically performed by licensed electricians or low-voltage cable installers in accordance with NEC requirements for cable support and bend radius. De-energize all circuits in the work area before installing or adjusting overhead cable supports. Ensure the threaded screw is fully engaged with the receiving fastener before loading the ring with cable weight. Do not exceed the mechanical load rating of the mounting fastener used with this bridle ring.

Technical Specifications

• Ring Diameter: 4 inches
• Screw Size: 1/4 inch threaded
• Material: Metal

Standard Information

• Brand: NVENT
• Manufacturer Part Number: 4brt64
