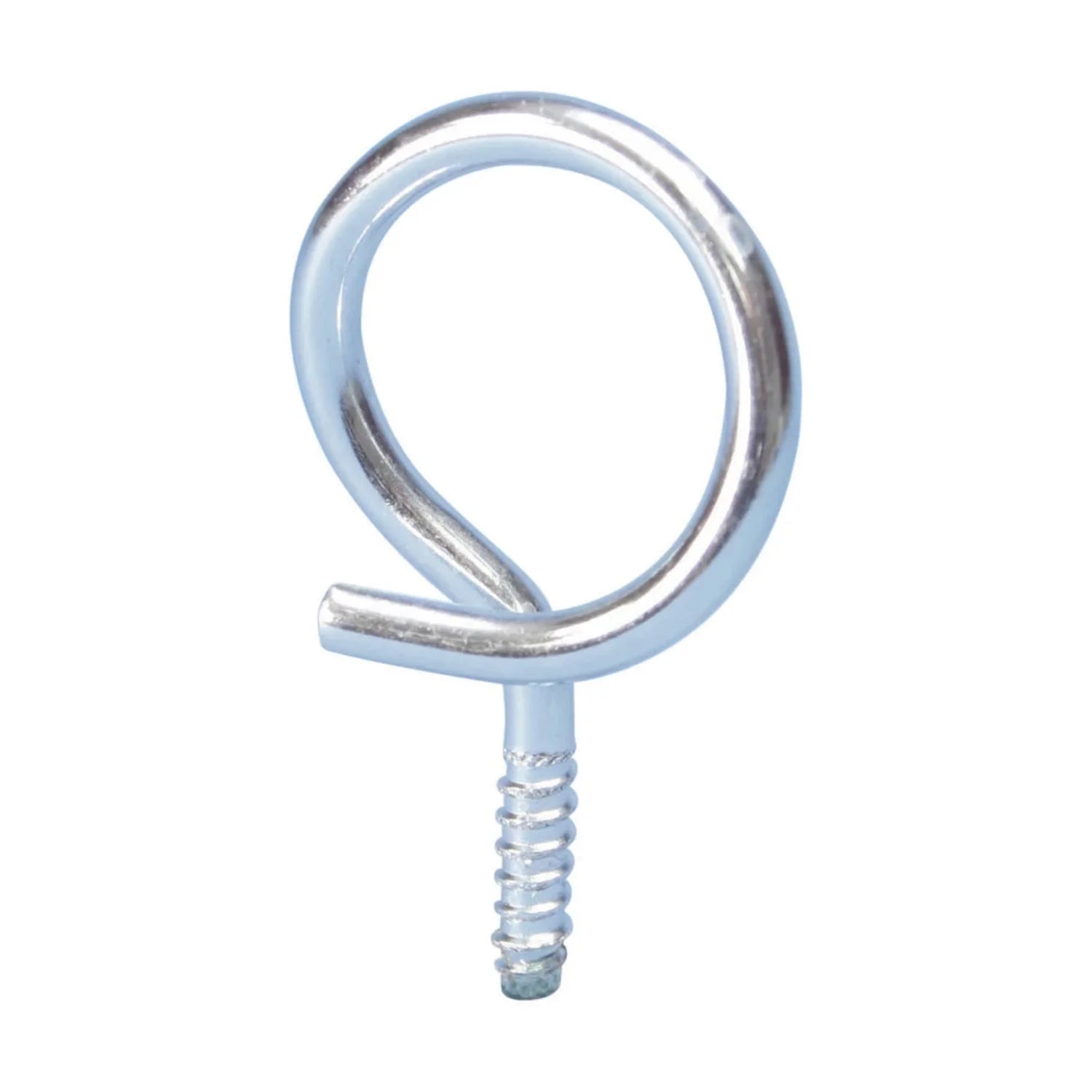

Nvent 4brt20ws Threaded Bridle Ring 1.25 in Wood Screw

Product Description

The NVENT 4brt20ws is a threaded bridle ring designed to support and route cables in commercial and industrial installations. The ring body measures 1.25 inches in diameter and mounts via a 0.55-inch wood screw, making it suited for overhead wood structural members such as joists and beams. Electricians and low-voltage installers use bridle rings to keep cable runs organized and properly supported between attachment points, maintaining bend radius and preventing cable sag across spans.

This bridle ring is intended for use in applications where cables must be supported from wood framing or similar substrates. Typical installation environments include commercial buildings, warehouses, and light industrial spaces where electrical, data, or low-voltage cables run overhead. The threaded wood screw base drives directly into wood members without requiring a pre-drilled anchor, simplifying the installation process on standard framing.

Key Features

• 1.25-inch diameter ring opening accommodates a range of cable bundle sizes
• 0.55-inch threaded wood screw base for direct drive into wood substrates
• Designed to combine with other NVENT CADDY fasteners for multi-point cable support systems
• Supports cables from overhead wood structural members such as joists and beams

Compatibility

Designed for use as part of the NVENT CADDY bridle ring and fastener system, compatible with flange, purlin, drop wire, and t-grid support configurations when combined with appropriate NVENT CADDY fasteners.

Installation Notes

Installation is performed by licensed electricians or low-voltage cable installers following applicable NEC requirements for cable support and spacing. De-energize all circuits in the work area before routing or securing cables. Drive the wood screw base firmly and fully into the wood substrate to ensure secure retention under cable load. Do not exceed the load rating of the mounting substrate or the bridle ring when bundling multiple cables.

Technical Specifications

• Ring Diameter: 1.25 inches
• Screw Length: 0.55 inches
• Mount Type: Threaded Wood Screw

Standard Information

• Brand: NVENT
• Manufacturer Part Number: 4brt20ws
