Nvent 4560300cp Caddy Split Ring Hanger 3 in Replacement 456

Product Description

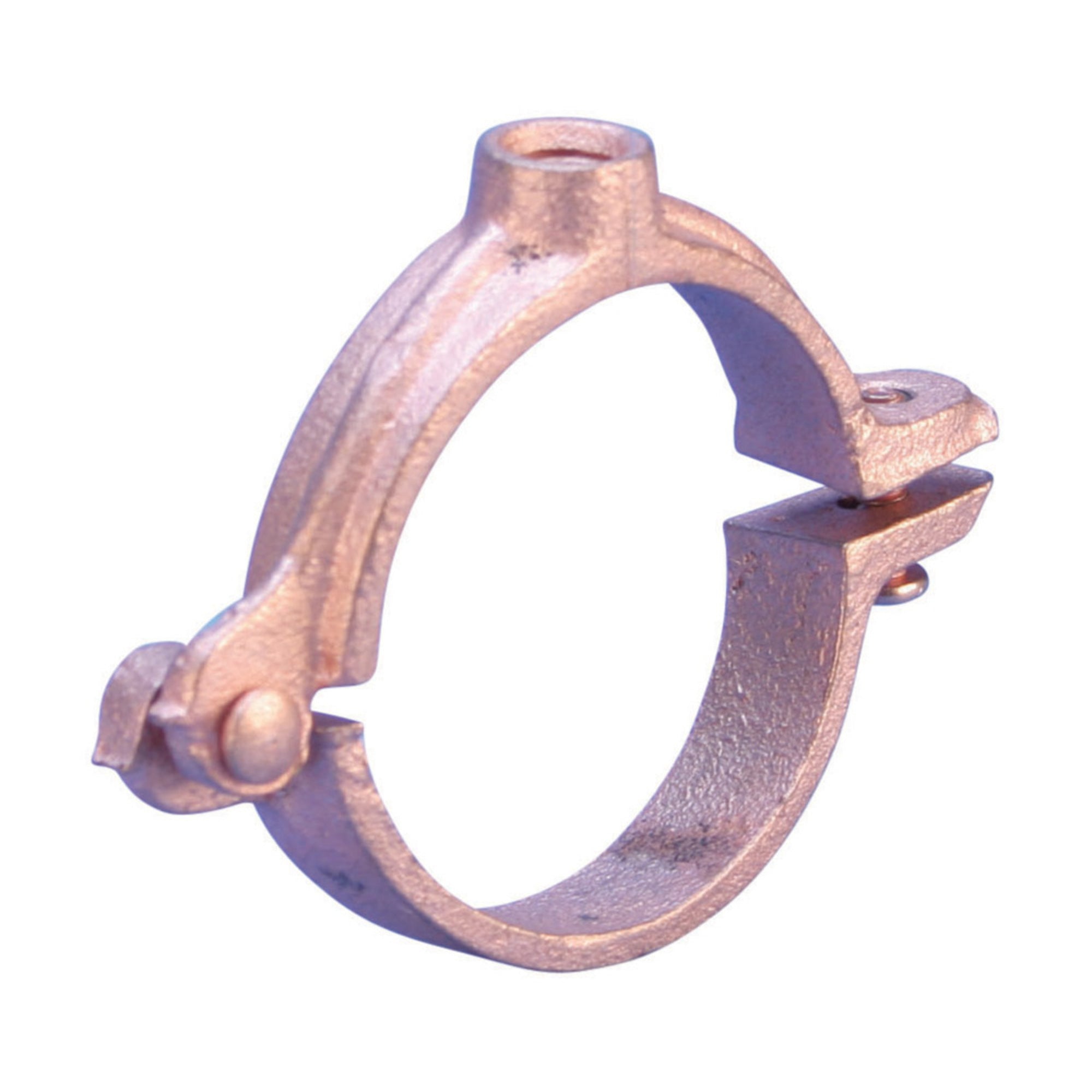

The NVENT CADDY 4560300CP is a split ring hanger designed for supporting stationary non-insulated copper tube lines. It allows for piping runs close to ceilings or walls. The hanger is constructed from iron with a copper electro-plated finish and supports a load rating of 180 lb.

• Allows for piping runs close to ceiling or walls
• Recommended for the suspension of stationary non-insulated copper tube lines
• Quick closing hinged pipe clamp with threaded nut; for use with non-insulated copper pipe

Product Highlights

The NVENT CADDY split ring hanger is ideal for supporting copper tube lines, providing a secure and reliable suspension.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: 4560300CP
• Country of Origin: Import

Technical Specifications

• Diameter: 3-1/8 in
• Finish: Copper Electro-Plated
• Height: 3-7/8 in
• Load Rating: 180 lb
• Material: Iron
• Series: 456 Series
• Trade Size: 3 in
• Width: 5/8 in
• Load Capacity: 180 lb
• Pipe/Tube Size: 3 in
• Rod Size: 1/2 in
• Suitable For Use With: Stationary Non-Insulated Copper Tube Line
• Part Number: 4560300CP
• Copper Tube Size: 3"
• Outer Diameter: 3 1/8"
• Static Load: 180 lb
• Adjustable, Split Ring Type: Cast Iron Material
• Model: 456
