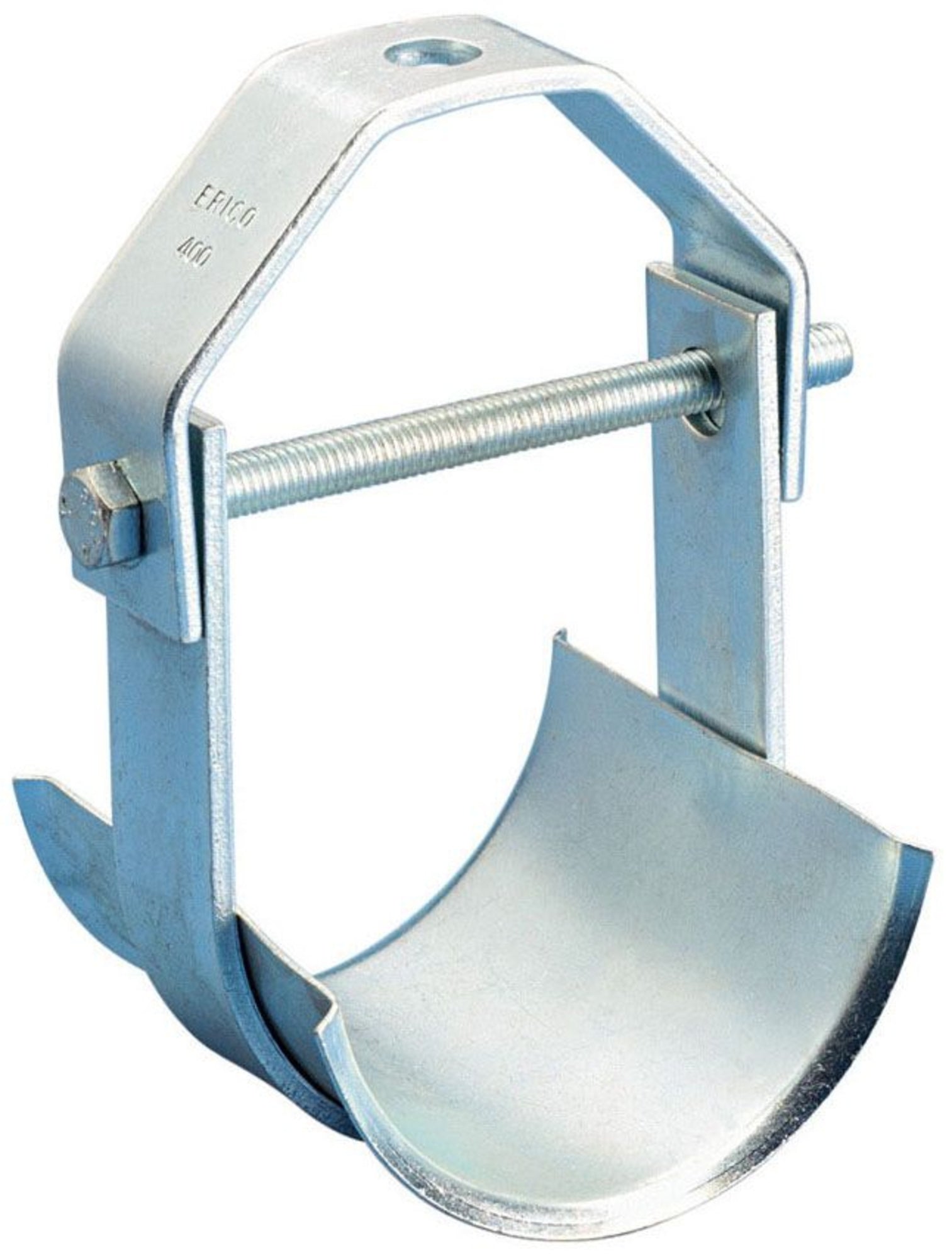

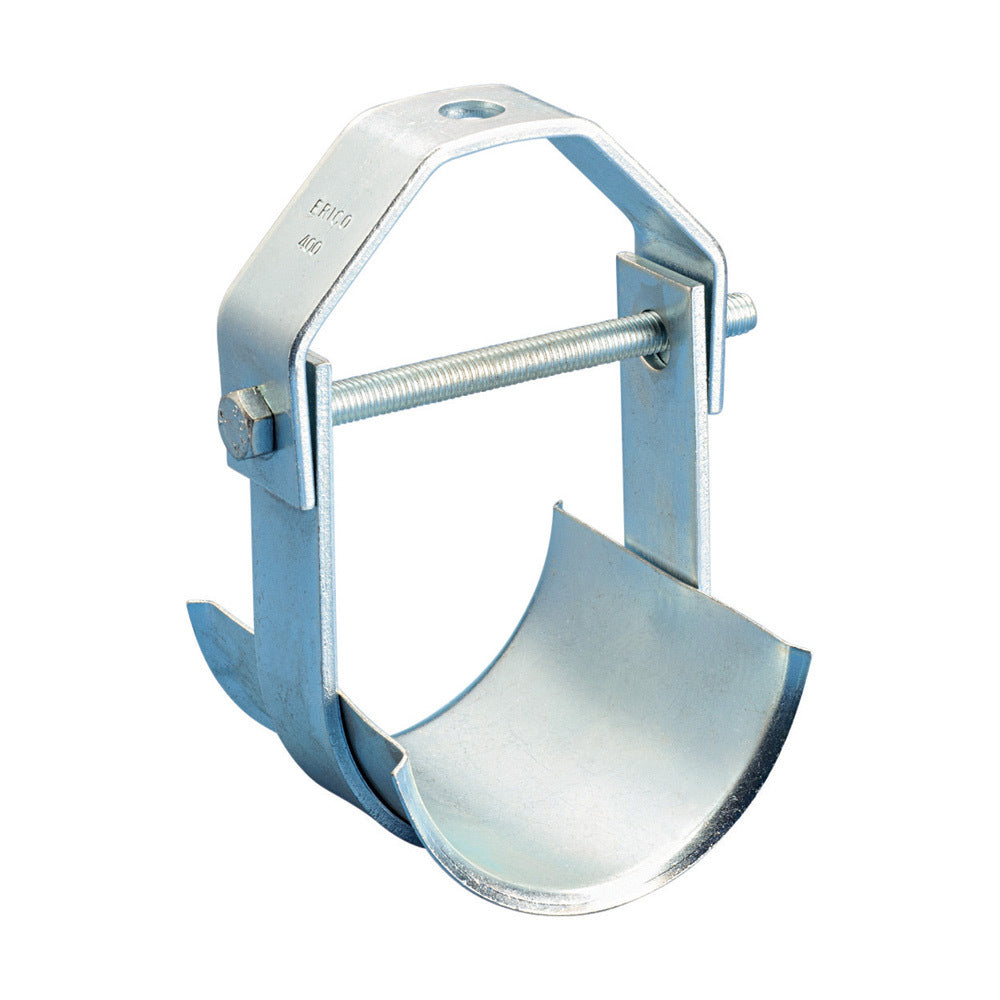

Nvent 4030400EG 403 Clevis Hanger With Insulation Shield 4 inches Shield, 4.5 inches OD, 5/8 inches Rod

Product Description

The NVENT CADDY 4030400EG is a clevis hanger with an insulation shield designed for suspending stationary insulated pipe lines. It features a steel material with electrogalvanized finish. The hanger supports a static load rating of 1130 pounds and accommodates a 5/8 inch hanger mounting size. It is suitable for fire sprinkler, HVAC, plumbing and refrigeration applications.

• Steel Material
• Electrogalvanized Finish
• 1130 Pound (Static) Load Rating
• Recommended for the suspension of stationary insulated pipe lines

Product Highlights

The NVENT CADDY 4030400EG clevis hanger provides reliable support for insulated pipes in various applications, ensuring secure and stable suspension.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: 4030400EG

Technical Specifications

• Category Level 1: Fasteners & Hardware
• Category Level 2: Mechanical Clamps & Hangers
• Category Level 3: Clevis Hangers
• Finish: Electro-Galvanized
• Load Capacity: 1130 lb
• Material: Steel
• Pipe Size: 4 in
• Rod Size: 5/8 in
• Series: 403
• Specifications: 4-1/2 in OD
• Suitable For Use With: Suspension of Stationary Insulated Pipe Line
• Clevis Type: CLEVIS
• Size: 7-1/4 INCH
• Min. Pipe Size: 4 INCH
• Max. Pipe Size: 4 INCH
• Standard: WW-H-171 TYPE 1, MSS-SP-58 TYPE 1 APPLICABLE STANDARD
• Load Rating: 1130 POUND (STATIC)
• Hanger Mounting Size: 5/8 INCH
• Brand: CADDY[R]
• Outer Diameter: 4.5 INCH
• Centerline Distance: 3-1/2 INCH
• Model: 403
• Applications: Fire Sprinkler; HVAC, Plumbing and Refrigeration
• Type: 403 Clevis Hanger with Insulation Shield
• Sub Brand: CADDY
• Length: 6 Inch
