Nvent 4030350EG 403 Clevis Hanger With Insulation Shield 3 1/2 inches Shield, 4 inches Od, 1/2 inches Rod

Product Description

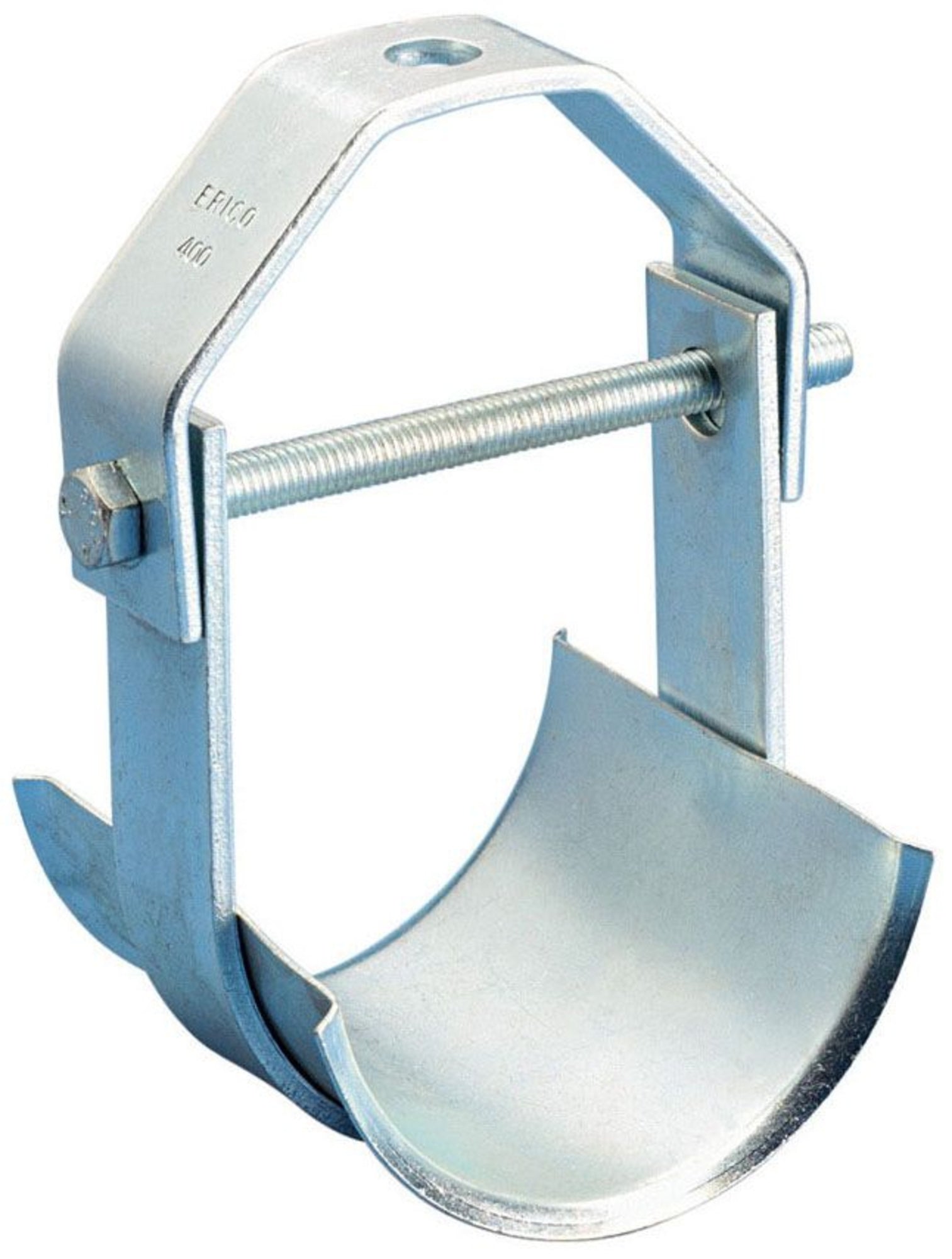

The NVENT Caddy 4030350EG is a 403 clevis hanger with an insulation shield, designed for supporting insulated pipe lines. It features a 3 1/2" shield, 4" OD, and 1/2" rod. The clevis hanger is constructed from steel with an electrogalvanized finish.

• Features a rod mount type
• Constructed from carbon steel material
• Has a zinc electroplated finish

Product Highlights

The NVENT Caddy 4030350EG clevis hanger is designed for supporting insulated pipe lines in fire sprinkler, HVAC, plumbing, and refrigeration applications.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: 4030350EG

Technical Specifications

• Brand: nVent Caddy
• Family: 403 Clevis Hanger with Insulation Shield
• UPC: 782856366171
• Material: Steel
• Finish: Electrogalvanized
• MFR SKU: 4030350EG
• ROD MOUNT TYPE: CLEVIS
• SIZE: 6-11/16 INCH
• MIN. PIPE SIZE: 3-1/2 INCH
• MAX. PIPE SIZE: 3-1/2 INCH
• MIN. PIPE SIZE - DECIMAL: 3.5
• MAX. PIPE SIZE - DECIMAL: 3.5
• MIN. PIPE SIZE - FRACTIONAL: 3-1/2
• MAX. PIPE SIZE - FRACTIONAL: 3-1/2
• MIN. PIPE SIZE IN MM: 88.9
• MAX. PIPE SIZE IN MM: 88.9
• LOAD RATING IN LB: 1130
• APPLICABLE STANDARD: UL, CUL, WW-H-171 TYPE 1, ANSI/MSS-SP-58 TYPE 1, ANSI/MSS-SP-69
• HANGER MOUNTING SIZE: 1/2 INCH
• USED TO: SUPPORT INSULATED PIPE
• ADJUSTABLE HEIGHT: 1-7/16 INCH
• CENTER LINE DISTANCE: 3-11/16 INCH
• ITEMS/FEATURES: SPOT WELDED AND INSULATED PROTECTION SHIELD, FLARED EDGE
• MODEL: 403
• Load Rating: 1130 lb
• Type: Clevis Hanger
• Applications: Fire Sprinkler; HVAC, Plumbing and Refrigeration
• Split Crucible: S
• Standard: None
• Sub Brand: CADDY
• 12-Digit UPC: 782856366171
• GTiN: 00782856366171
• Product UPC: 78285636617
• Length: 4 Inch
• Outer Diameter: 4 in
