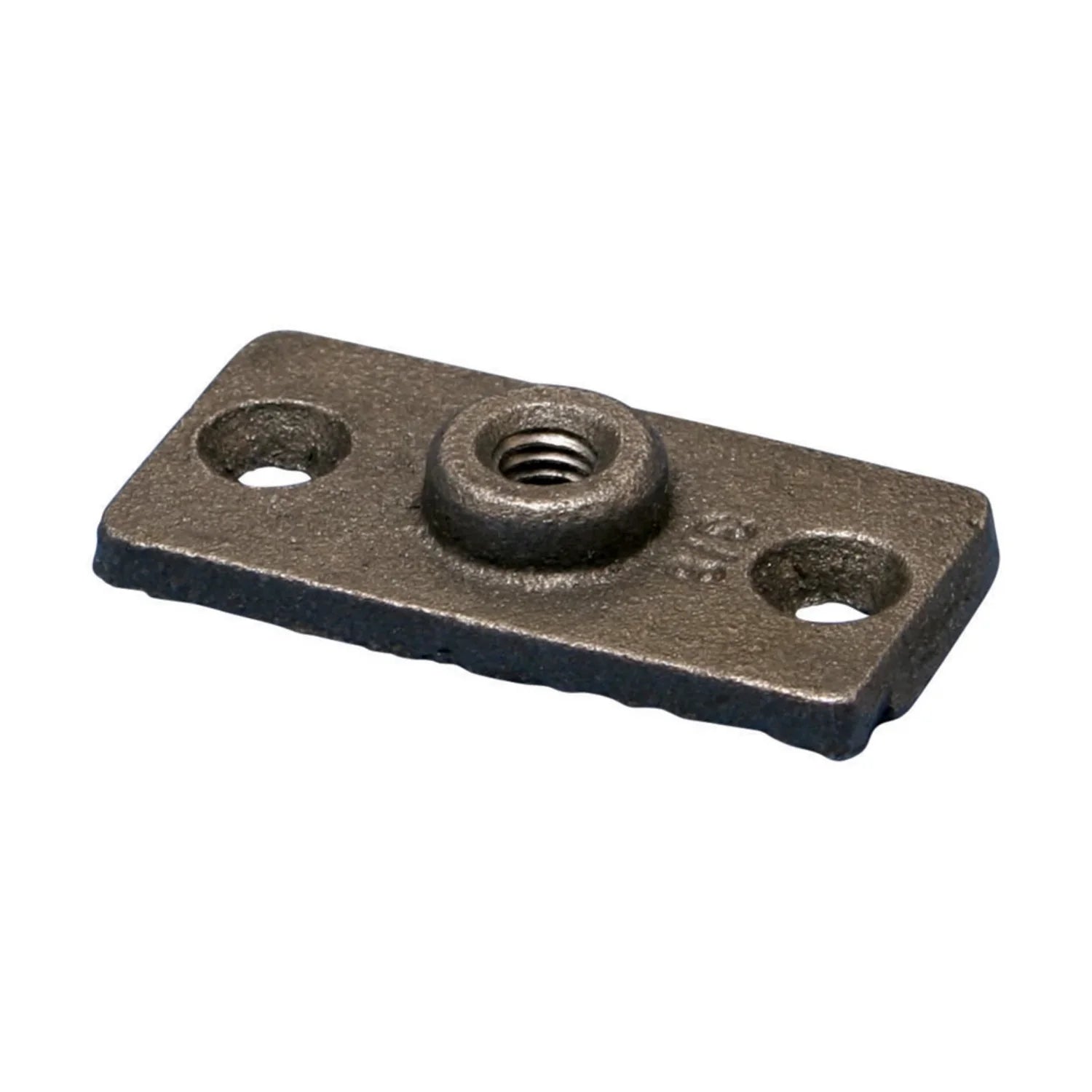

Nvent 365M0037CP 365M Malleable Iron Wall Or Ceiling Plate 3/8 inches Rod

Product Description

The NVENT 365M0037CP is a 365M Series malleable iron wall or ceiling plate designed for structural attachment. It supports hanger rods from ceilings or walls, featuring a 3/8 inch rod size and a 15/32 inch plate thickness. This plate has a static load capacity of 180 lbf and is constructed from malleable cast iron with a copper electroplated finish, ensuring durability for various mounting applications.

• Designed for structural attachment to support hanger rods from a ceiling or a wall.
• Features a 3/8 inch rod size and a 180 lbf static load capacity.
• Constructed from durable malleable cast iron with a copper electroplated finish.

Product Highlights

Structural attachment for hanger rods with 180 lbf load capacity.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: 365M0037CP
• Country of Origin: China

Technical Specifications

• Finish: Copper Electroplated
• Load Capacity: 180 lbf
• Material: Malleable Cast Iron
• Rod Size: 3/8 in
• Series: 365M Series
• Bracket Type: Wall/Ceiling Plate
• Fastener Hole Diameter: 1/4 in
• Plate Thickness: 15/32 in
• Max Rod Length: 1 15/16 in
