Nvent 3150037PL Erico Clamp, Purlin, 3/8 Replacement MPN

Product Description

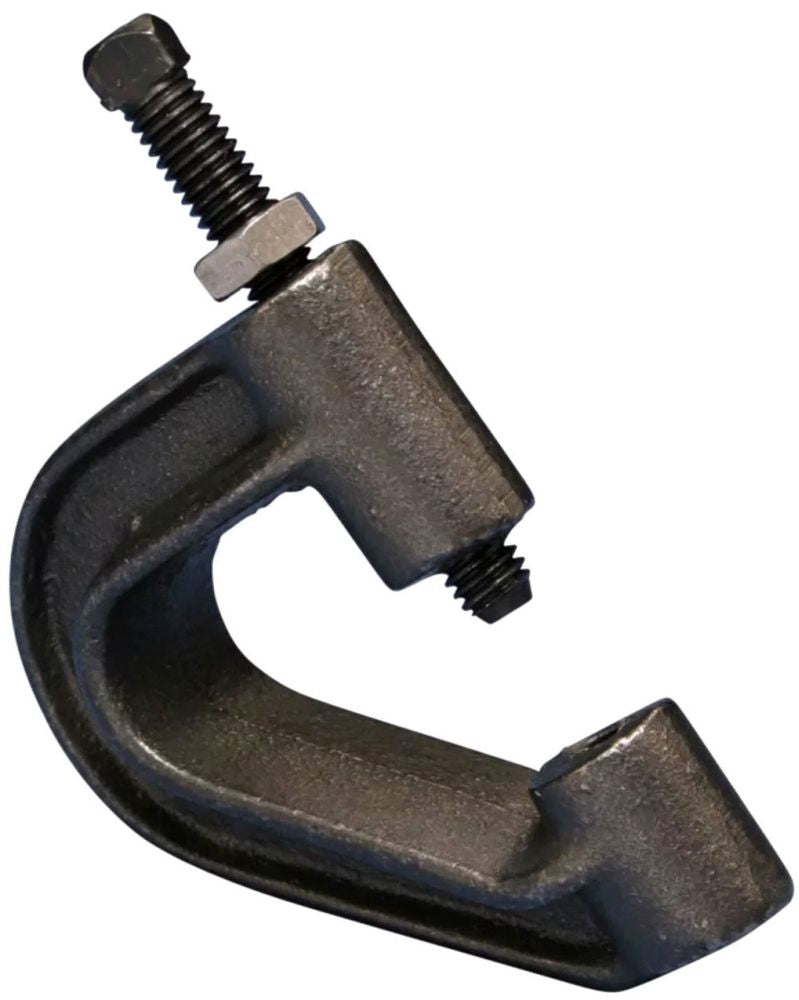

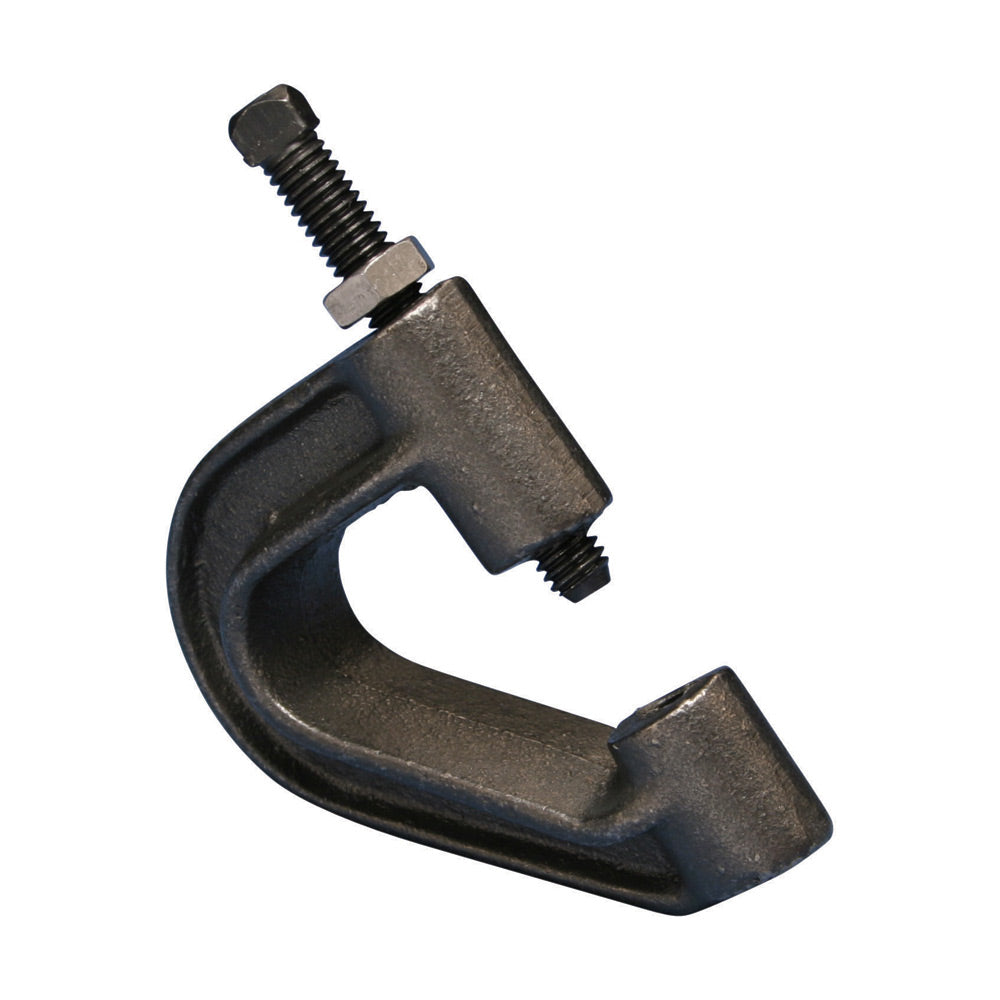

The NVENT 3150037PL Erico clamp attaches to the lower flange of metal beams or purlins. It supports 45 deg flanges up to 2 in L and 90 deg flanges up to 1-1/2 in H. It has a 400 lb static load capacity and conforms with Federal Specification WW-H-171 (Type 45).

• Attaches to lower flange of metal beams or purlins
• Supports 45 deg flanges up to 2 in L and 90 deg flanges up to 1-1/2 in H
• Conforms with Federal Specification WW-H-171 (Type 45), manufacturers Standardization Society ANSI /MSS-SP-58 (Type 44)

Product Highlights

The NVENT 3150037PL is ideal for datacom, low voltage, fire sprinkler, HVAC, plumbing, refrigeration, and seismic bracing applications.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: 3150037PL
• Country of Origin: CHN

Technical Specifications

• Application: Datacom and Low Voltage, Electrical Fixing and Fastening, Fire Sprinkler, HVAC, Plumbing and Refrigeration, Seismic Bracing Applications
• Finish: Plain
• Flange Size: 1 in
• Load Capacity: 400 lb Static
• Manufacturer Part Number: 3150037PL
• Material: Cast Iron
• Rod Diameter: 3/8 in
• Standards/Approvals: cULus VFXT7.EX2452|ULC/ORD-C203|FM Approved|UL VFXT.EX2452|ANSI/UL 203|CSA Approved
• Country Of Origin: CHN
• Rod Size: 3/8 in
• Series: 315
