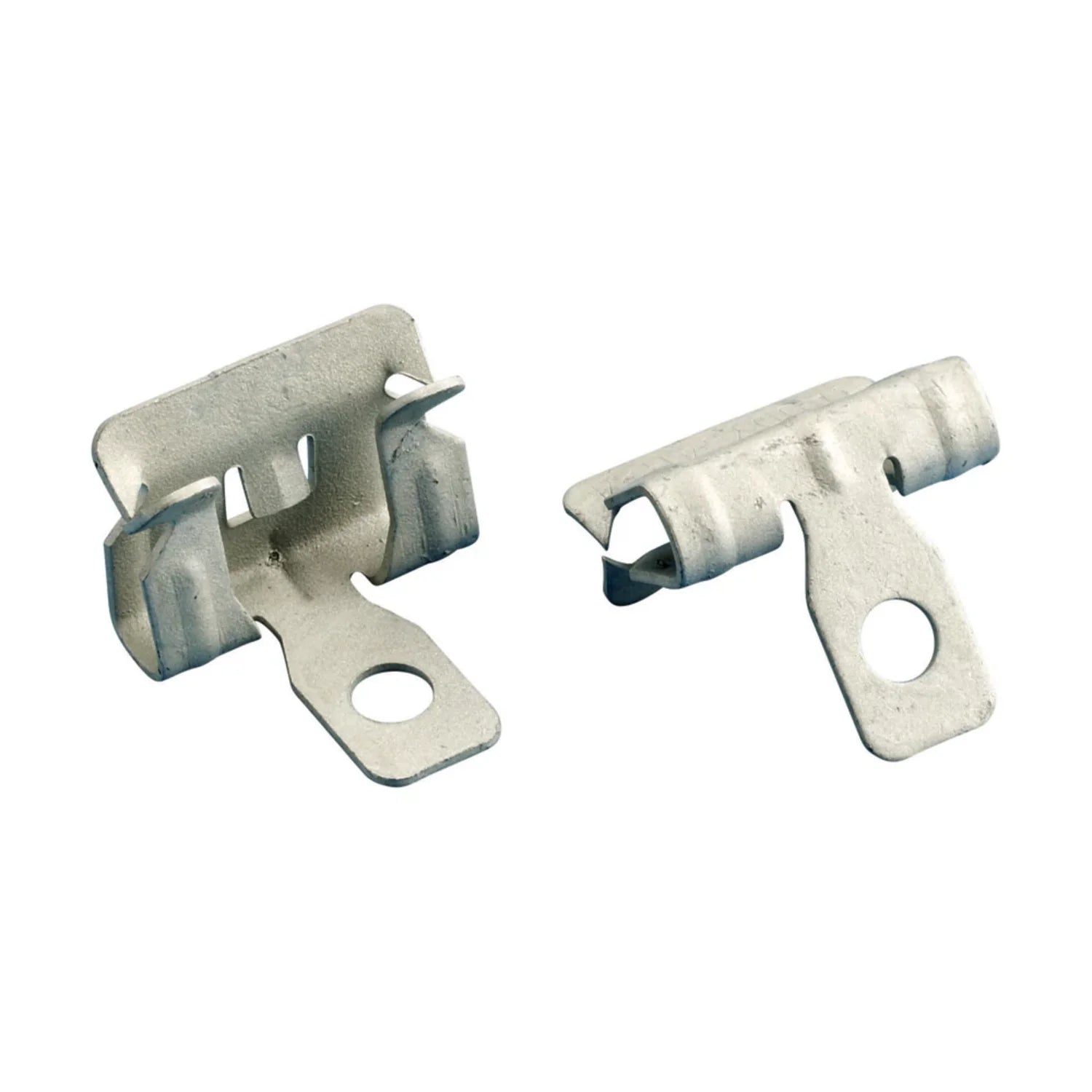

Nvent 2H4 Hammer-On Flange Clip Side Mount 3/32 to 9/64 in Flange Pack of 100 Replacement 2KWY3

Product Description

The Nvent 2H4 is a hammer-on, side-mount flange clip used to attach wire, S-hooks, chain, Speed Link or other assemblies to structural flanges and profiles. Made of spring steel with Caddy Armor finish, it fits flange thicknesses from 3/32 to 9/64 in (2–3 mm), accepts a 1/4 in (7.1 mm) hole, and has a static load capacity of 160 lb (700 N). It is cULus listed and fits most beams.

• Side-mount hammer-on design installs with a hammer; fits 3/32–9/64 in (2–3 mm) flanges.
• Spring steel construction with Caddy Armor finish; accepts 1/4 in (7.1 mm) hole; static load 160 lb (700 N).
• Suitable for attaching wire, rod, S-hook, chain or Speed Link to structural beam/purlin; cULus listed.

Product Highlights

Hammer-on side-mount flange clip for 3/32–9/64 in flanges; 1/4 in hole; 160 lb capacity; Caddy Armor finish.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: 2H4
• Country of Origin: United States

Technical Specifications

• Brand: nVent
• Manufacturer Part Number: 2H4
• Alternate Part Number: 2KWY3
• Type: Hammer-On
• Mounting Type: Side mount
• Material: Spring Steel
• Finish: Caddy Armor
• Flange Thickness: 3/32 to 9/64 in (2–3 mm)
• Hole Size: 1/4 in (7.1 mm)
• Load Capacity: 160 lb (700 N)
• Standards/Approvals: cULus Listed
• Suitable For Use With: Structural beam/purlin; wire; rod; S-hook; bolting strap; chain; Speed Link
• Application: Acoustical; ceiling and partitioning; datacom and low voltage; electrical; fire sprinkler; HVAC; plumbing and refrigeration
• Standard Packaging Quantity: 100
• UPC: 782856101000
• EAN: 8711893700145
• Catalog Number: 2H4
• Country of Origin: United States
• UNSPSC Code: 39121700
