Nvent 24M58SM H-MSM snap close conduit/pipe to flange clip 1-1/2 in conduit

Product Description

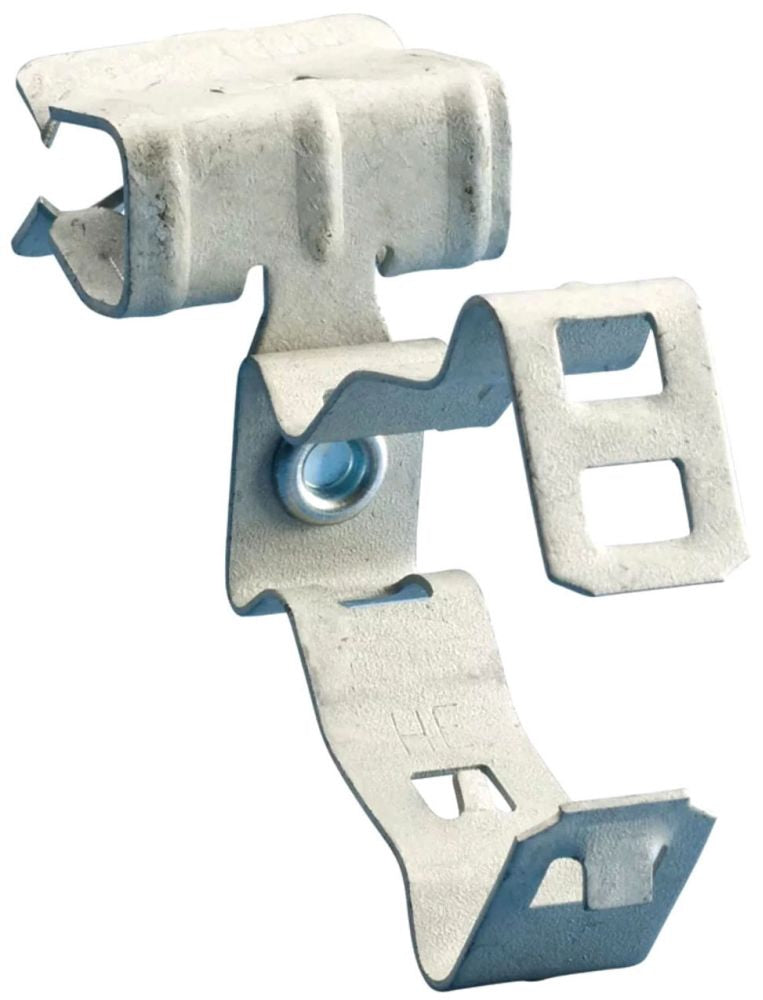

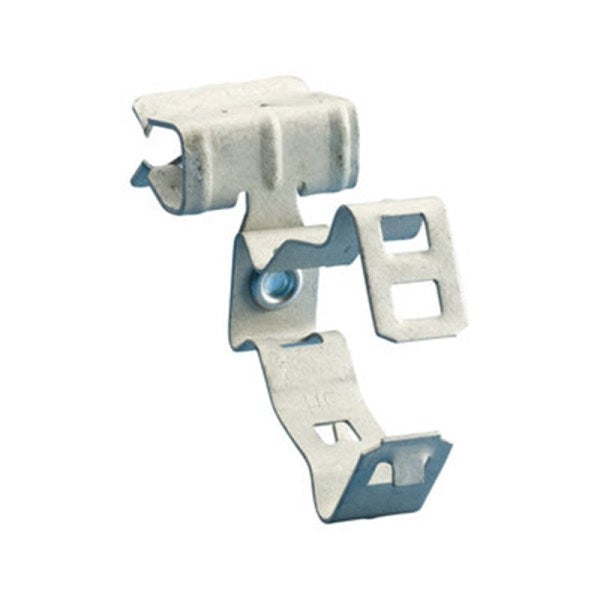

The nVent CADDY 24M58SM H-MSM Snap Close Conduit/Pipe To Flange Clip is designed for supporting 1-1/2 inch EMT conduit or pipe from beam flanges. This side mount clip features a snap-close mechanism and is made from durable spring steel with a Caddy® Armor finish for corrosion resistance. It can support a static load of 25 lb and is suitable for flange thicknesses from 5/16 to 1/2 inch, accommodating outside diameters of 1.654 to 1.96 inches.

• Supports conduit/pipe or cable from beam flanges
• Snap close clip pivots a full 360 deg
• Requires only a hammer to install

Product Highlights

Durable spring steel clip for secure conduit/pipe attachment to flanges, featuring a 360-degree pivot and easy hammer installation.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: 24M58SM
• Country of Origin: USA

Technical Specifications

• Application: Datacom and Low Voltage and Electrical Applications
• Conduit Size: 1-1/2 in
• Finish: Caddy® Armor
• Flange Size: 5/16 to 1/2 in
• Load Capacity: 25 lb Static
• Material: Spring Steel
• Mounting Type: Side
• Series: H-MSM
• Standards/Approvals: cULus Listed
• Suitable For Use With: EMT Conduit
• Type: Snap Close
• Outside Diameter: 1.654 to 1.96 in
• Rigid Conduit/Pipe Size: 1 1/2 in
