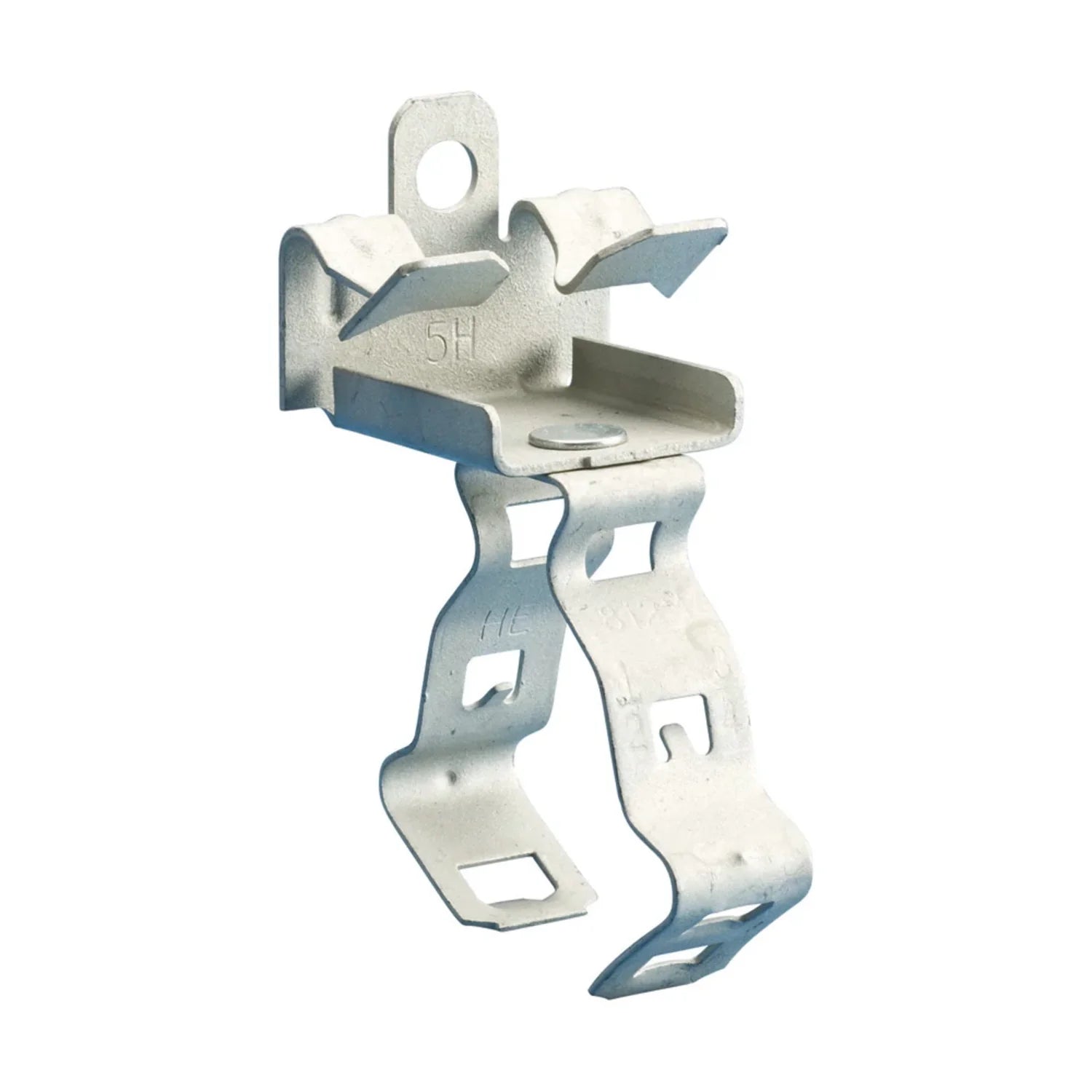

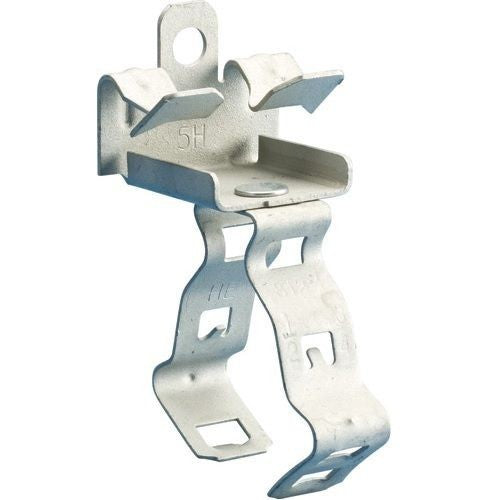

Nvent 24M24 Conduit/Pipe to Flange Clip 1-1/2 inches EMT

Product Description

The NVENT 24M24 Conduit/Pipe to Flange Clip is designed to support conduit, pipe, or cable from beam flanges. The snap close clip pivots a full 360 degrees and requires only a hammer to install. It has a 75 lb static load capacity and is suitable for 1-1/2 in EMT and rigid conduit size.

• Supports conduit/pipe or cable from beam flanges
• Snap close clip pivots a full 360 degree
• Requires only a hammer to install

Product Highlights

Supports conduit/pipe or cable from beam flanges. Snap close clip pivots a full 360 degrees. Requires only a hammer to install.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: 24M24
• Country of Origin: US - United States

Technical Specifications

• Material: Spring Steel
• Finish: nVent CADDY Armour
• EMT Conduit Size: 1 1/2"
• Rigid Conduit/Pipe Size: 1 1/2"
• Outer Diameter (OD): 1.650" - 1.97"
• Flange Thickness (FT): 1/8" - 1/4"
• Static Load (F): 75lb
• UPC: 782856162247
• EAN: 0782856162247
• Standard Packaging Quantity: 50
• Packing Quantity: 1
• Load Capacity: 75 lb
• Outside Diameter: 1.654 to 1.969 in
• Conduit Size: 1-1/2 in
• Type: Snap Close
• Series: EM-M
• Flange Size: 1/8 to 1/4 in
• Suitable For Use With: EMT Conduit
• Application: Datacom and Low Voltage
• Standard & Approvals: cULus Listed, RoHS Exempted
• Catalog ID: CAD24M24
• ECCN: EAR99
• Country of Origin: US - United States
• UNSPSC: 39121701
• Use With: 1-1/2 in. EMT or Rigid Conduit
• Flange: 1/8 to 1/4 in.
• Max. Load: 75 lbs.
