Nvent 16PATA Conduit T-grid Clip 1 Inch Emt Top Mount

Product Description

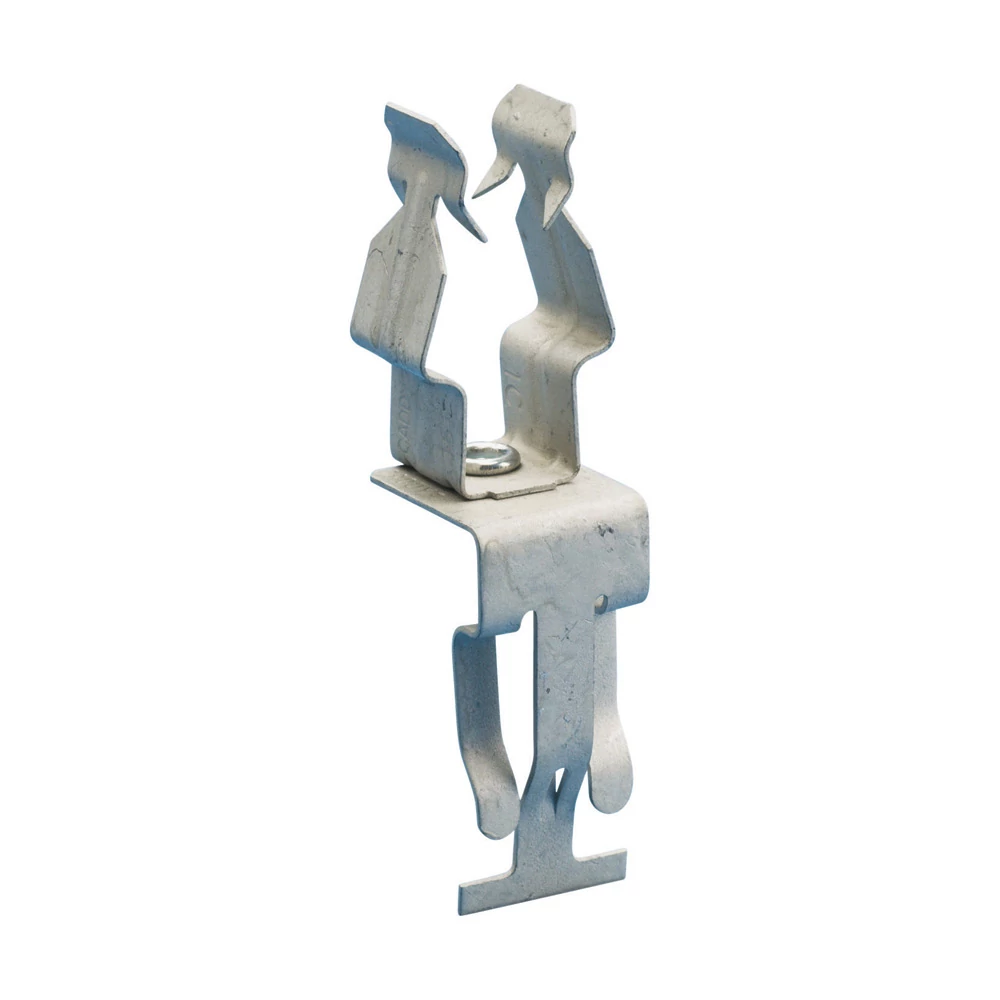

The NVENT 16PATA is a top-mount conduit to T-grid clip designed to secure 1-inch EMT conduit directly to a T-bar ceiling grid. This hardware fitting provides a fast, tool-minimal method of routing electrical conduit along suspended ceiling systems without the need for separate fasteners or support wire. It is installed by licensed electricians during rough-in or retrofit work in commercial and light industrial spaces where exposed or semi-exposed EMT runs are routed above a drop ceiling grid. The clip seats over the T-bar flange and clamps the conduit from the top, keeping runs parallel and organized.

The 16PATA is suited for commercial electrical installations where conduit must be supported from a suspended T-bar ceiling grid. Typical applications include office buildings, retail spaces, schools, and healthcare facilities where 1-inch EMT is run horizontally above a drop ceiling. The top-mount design allows the clip to be positioned along the T-grid without requiring access from below the ceiling plane, making it practical for staged installations and ceiling tile maintenance.

Key Features

• Top-mount design secures 1-inch EMT conduit to standard T-bar ceiling grid flanges
• Eliminates the need for separate support wire or J-hooks for light conduit runs
• Fits standard suspended ceiling T-grid profiles used in commercial construction
• Compact clip profile minimizes obstruction above ceiling tiles

Compatibility

Designed for use with 1-inch EMT conduit on standard suspended T-bar ceiling grid systems commonly found in commercial construction.

Installation Notes

Installation is typically performed by a licensed electrician in accordance with NEC support and securing requirements for EMT conduit. De-energize any circuits in the work area before handling conduit or fittings above the ceiling. Ensure the T-grid is properly anchored and rated to carry the cumulative load of the conduit run before applying clips. Do not use this clip as the sole means of support for conduit runs that exceed NEC-specified spacing intervals.

Technical Specifications

• Conduit Type: EMT
• Conduit Size: 1 inch
• Mount Type: Top Mount
• UPC: 782856602668

Standard Information

• Brand: NVENT
• Manufacturer Part Number: 16PATA
