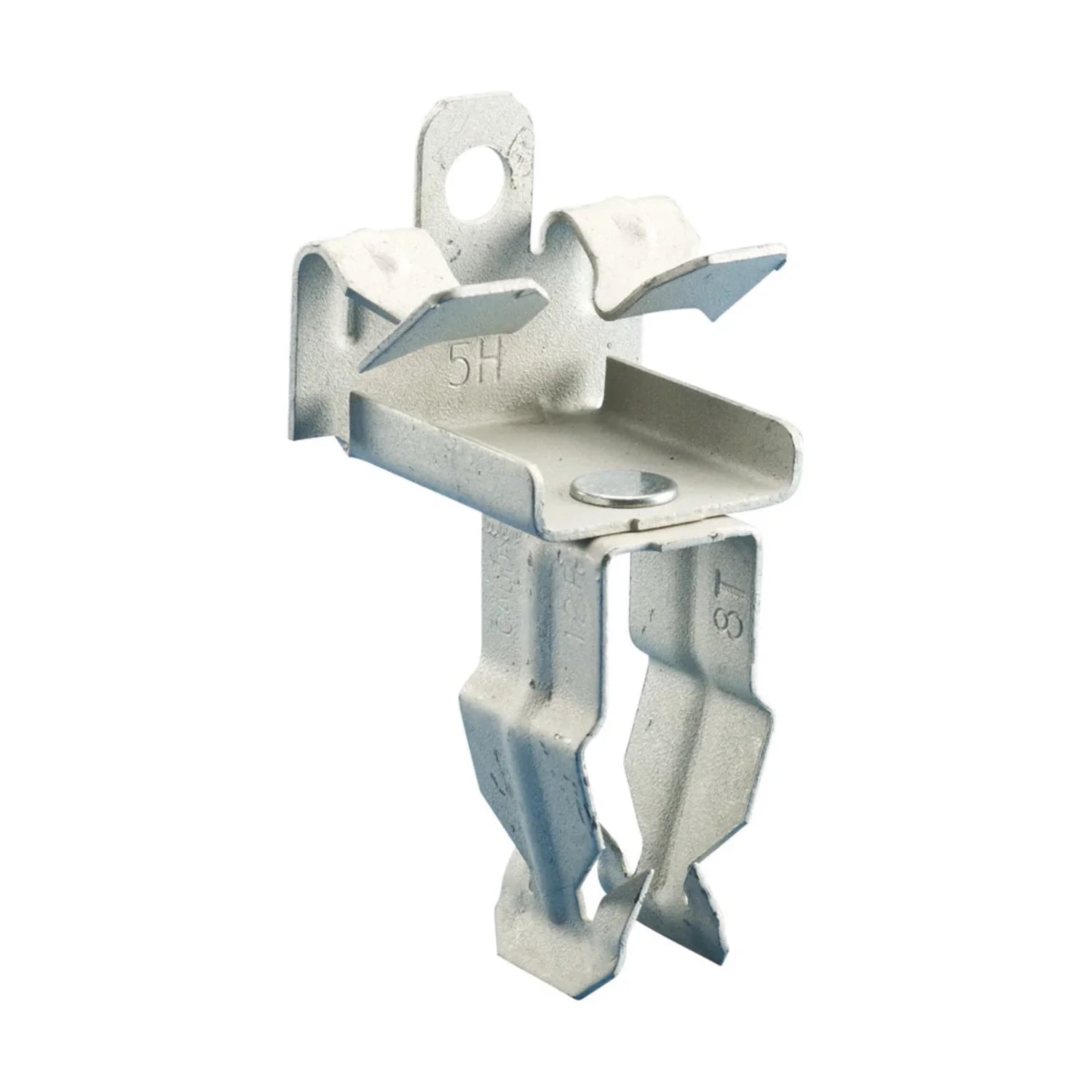

Nvent 16P912 EM-P Conduit to Flange Clip 1 inches EMT, 3/4 inches Rigid, 1.181 inches–1.378 inches OD, 9/16 inches–3/4 inches Flange

Product Description

The NVENT 16P912 EM-P conduit to flange clip is designed for 1" EMT and 3/4" rigid conduits with an outer diameter of 1.181"–1.378" and a flange size of 9/16"–3/4". Made from spring steel with nVent CADDY Armour finish, it offers superior corrosion resistance. The clip supports a static load of 25lb.

• Requires only a hammer to install
• Available for EMT, rigid, IMT and aluminum conduit
• Will pivot thru 360°

Product Highlights

The NVENT CADDY Armour clip provides a secure and versatile mounting solution for conduits to flanges, ensuring durability and ease of installation.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: 16P912
• Country of Origin: US - United States

Technical Specifications

• Material: Spring Steel
• Finish: nVent CADDY Armour
• EMT Conduit Size: 1"
• Rigid Conduit Size: 3/4"
• Outer Diameter (OD): 1.180" - 1.38"
• Flange Thickness (FT): 9/16" - 3/4"
• Ultimate Static Load (F): 25lb
• Orientation: Top Mount
• UPC: 782856182665
• EAN: 8711893751635
• Standard Packaging Quantity: 50
• Packing Quantity: 1
• ECCN: EAR99
• UNSPSC: 39121701
• Use With: 1 in. EMT or 3/4 in. Rigid Conduit
• Flange: 9/16 to 3/4 in.
• Max. Load: 25 lbs.
• Country of Origin: US - United States
• Diameter: 1 in
