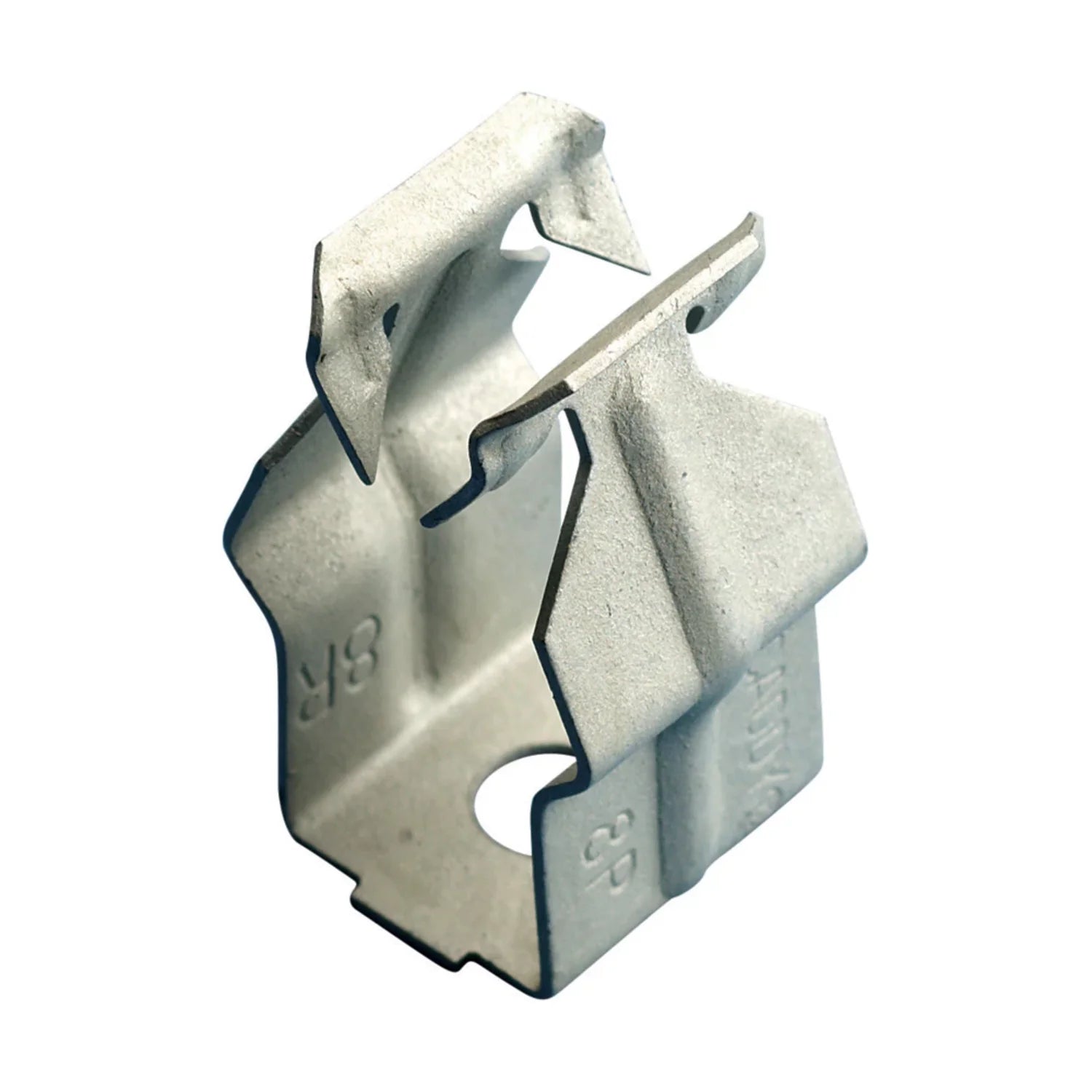

Nvent 16P4I Push In Conduit Clamp 1 inches EMT (1.181 inches-1.378 inches OD)

Product Description

The NVENT 16P4I is a push-in conduit clamp designed for 1" EMT conduit. It allows for push-in installation, eliminating the need for offset bending conduit. It can be used in vertical or horizontal installations. The clamp has a 1/4" hole and a load rating of 25 lb vertical and 15 lb horizontal.

• Push-in installation of conduit
• Eliminates need for offset bending conduit
• May be used for either vertical or horizontal installations

Product Highlights

The NVENT conduit clamp simplifies conduit installation with its push-in design and versatile mounting options.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: 16P4I
• Country of Origin: US - United States

Technical Specifications

• Material: Steel
• Finish: nVent CADDY Armour
• EMT Conduit Size: 1"
• Outer Diameter (OD): 1"
• Hole Size (HS): 1/4"
• Hole Type: Threaded
• Ultimate Static Load 1 (F1): 25lb
• Ultimate Static Load 2 (F2): 15lb
• UPC: 782856703662
• EAN: 0782856703662
• Standard Packaging Quantity: 100
• Packing Quantity: 1
• Mounting Type: Flange
• Use With: 1 in. EMT
• Max. Load: 25 lbs.
• Outer Diameter: 1.181 to 1.378 in.
• Style: Push-In Conduit
• Clip Type: Conduit/Cable to Drop Wire
• Installation: Push-In Clip
• Conduit/Cable Range: Emt 1 in.
