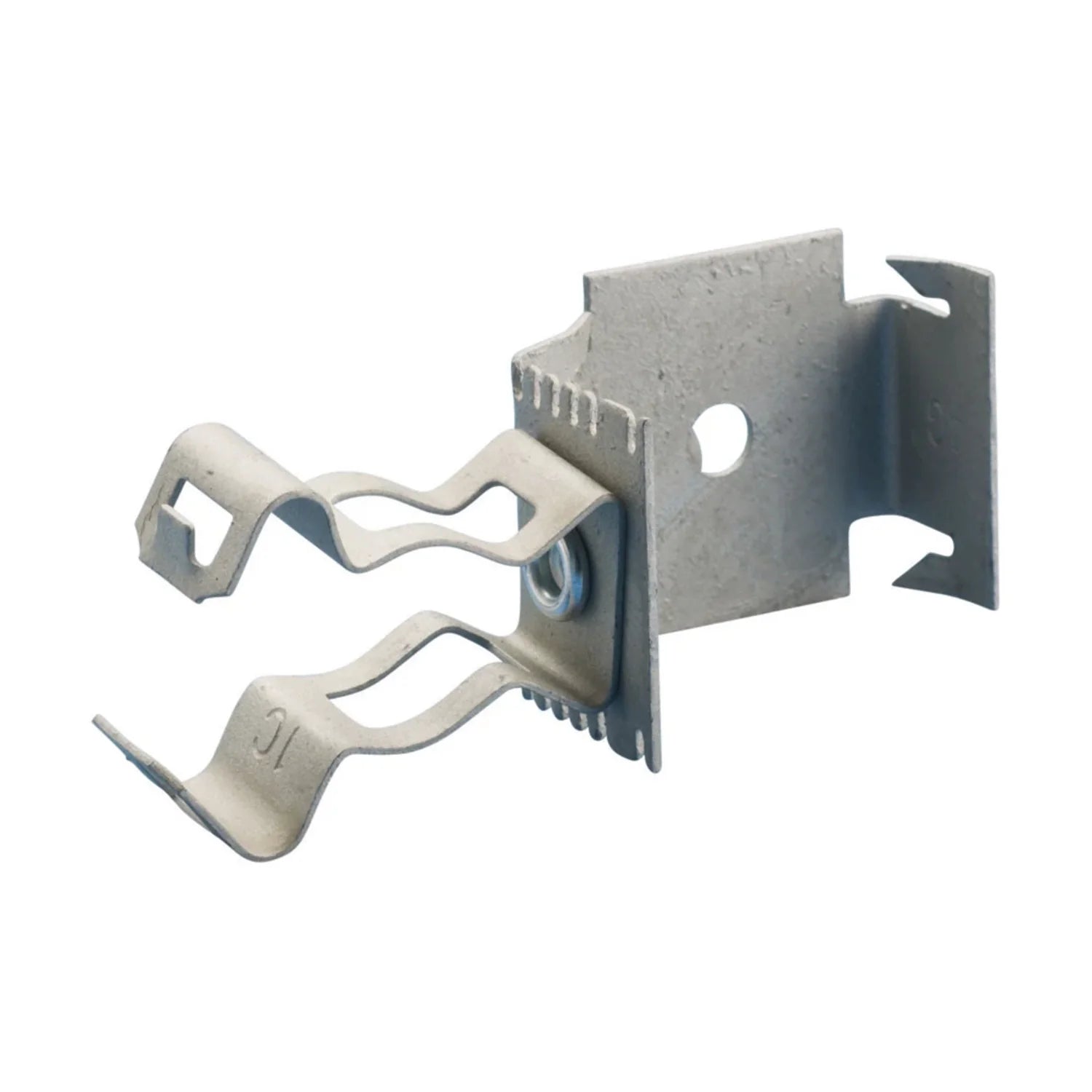

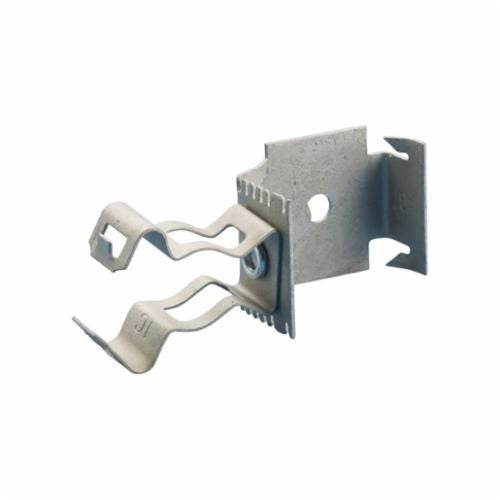

Nvent 16MF MF-M Conduit to Stud Attachment, 1 inches EMT

Product Description

The NVENT 16MF MF-M conduit to stud attachment is designed for 1" EMT conduit. It easily snaps onto studs and features a snap-close conduit support. For additional support, it can be fastened to the stud with a screw. Suitable for data communication and low voltage applications.

• Easily snaps onto stud
• Snap-close conduit support
• Fasten to stud with screw for additional support

Product Highlights

The NVENT 16MF provides a secure and convenient solution for attaching conduit to studs in various electrical applications.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: 16MF
• Country of Origin: USA

Technical Specifications

• Material: Spring Steel
• Finish: nVent CADDY Armour
• EMT Conduit Size: 3/4";1"
• A: 1 3/8" - 1 1/2"
• UPC: 782856482161
• EAN: 0782856482161
• Trade Size: 1IN
• Application: Data Communication and Low Voltage, Electrical Fixing and Fastening Applications
• Catalog Description (MFR): MF-M Conduit to Stud Attachment, 1" EMT
• Product Name: Conduit to Stud Attachment Clip
• Special Features: STUD CLIP,1 CONDUIT TO METAL STUD
• Standard: BABA Compliant, UL Recognized, cUL Recognized, cULus Listed, cULus Recognized, cUL DWMU7.E165703, CAN/CSA C22.2 No. 18.4-04, UL DWMU.E165703, ANSI/UL 2239
• Type: Cable/Conduit to Stud
• Conduit Size: 1 in
• Standard & Approvals: cULus Listed, RoHS Exempted
• Catalog ID: CAD16MF
• ECCN: EAR99
• Country of Origin: US - United States
• UNSPSC: 39121321
• Use With: 1 in. EMT Conduit
• Manufacturer Part Number: 16MF
• Compatible Conduit Trade Size: 1 in
• Flange Thickness: 1-3/8 in to 1-1/2 in
• For Use With: Stud
• Attachment: Conduit to Stud Attachment
• Item: Conduit Clip
• Standards: cULus
• Compatible Conduit Type: EMT
• Compatible Nominal Conduit/Pipe Size: 1 in
• Compatible Pipe Size: 1 in
• Includes: Conduit Clips
• Mounting Type: Clip On; Push In
• Sub-Category: Conduit and Cable Hangers
