Nvent 16M58SM Clip Flg To Conduit/Pipe 1in EMT Side

Product Description

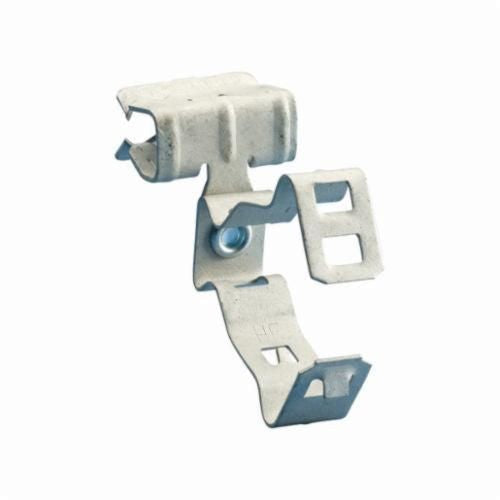

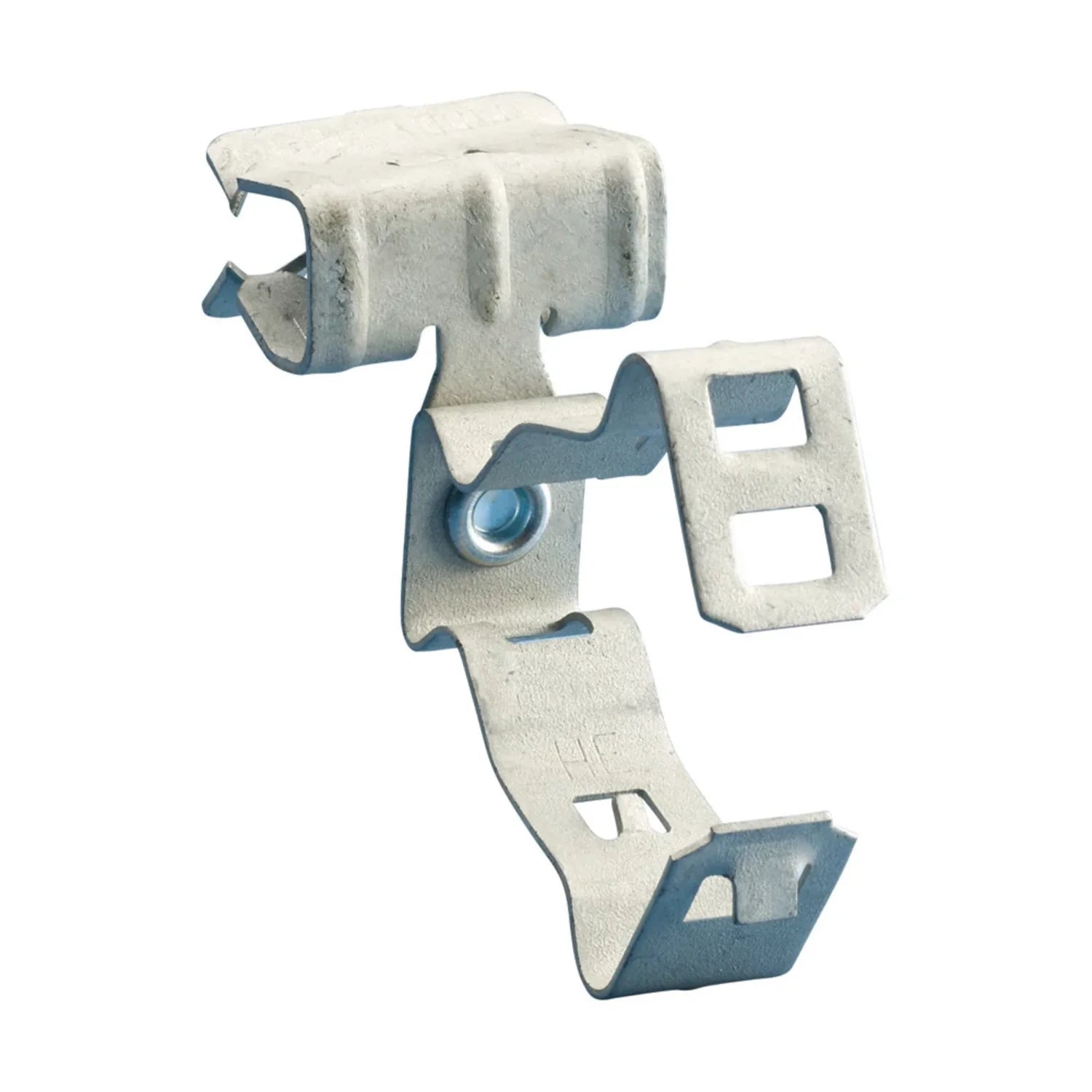

The NVENT 16M58SM H-MSM Snap Close Conduit/Pipe to Flange Clip is designed for securely supporting 1 inch EMT conduit from beam flanges. It features a 25 lb static load capacity and is suitable for 5/16 to 1/2 inch flanges. Constructed from spring steel with a Caddy® Armor finish, this side-mount clip accommodates an outside diameter of 1.181 to 1.378 inches, ideal for various electrical and low voltage applications.

• Supports conduit/pipe or cable from beam flanges
• Snap close clip pivots a full 360 deg
• Requires only a hammer to install

Product Highlights

Durable spring steel clip with Caddy® Armor finish for secure, hammer-installed conduit support.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: 16M58SM
• Country of Origin: United States

Technical Specifications

• Manufacturer Part No: 16M58SM
• Category: Conduit/Cable Clips
• Type: Snap Close
• Finish: Caddy® Armor
• Series: H-MSM
• Flange Size: 5/16 to 1/2 in
• Conduit Size: 1 in
• Manufacturer: nVent
• Load Capacity: 25 lb Static
• Mounting Type: Side
• Outside Diameter: 1.181 to 1.378 in
• Suitable For Use With: EMT Conduit
• Application: Datacom and Low Voltage and Electrical Applications
• Material: Spring Steel
• Standards/Approvals: cULus Listed, Build America Buy America Compliant, RoHS Exempted
• Rigid Conduit/Pipe Size: 3/4";1"
