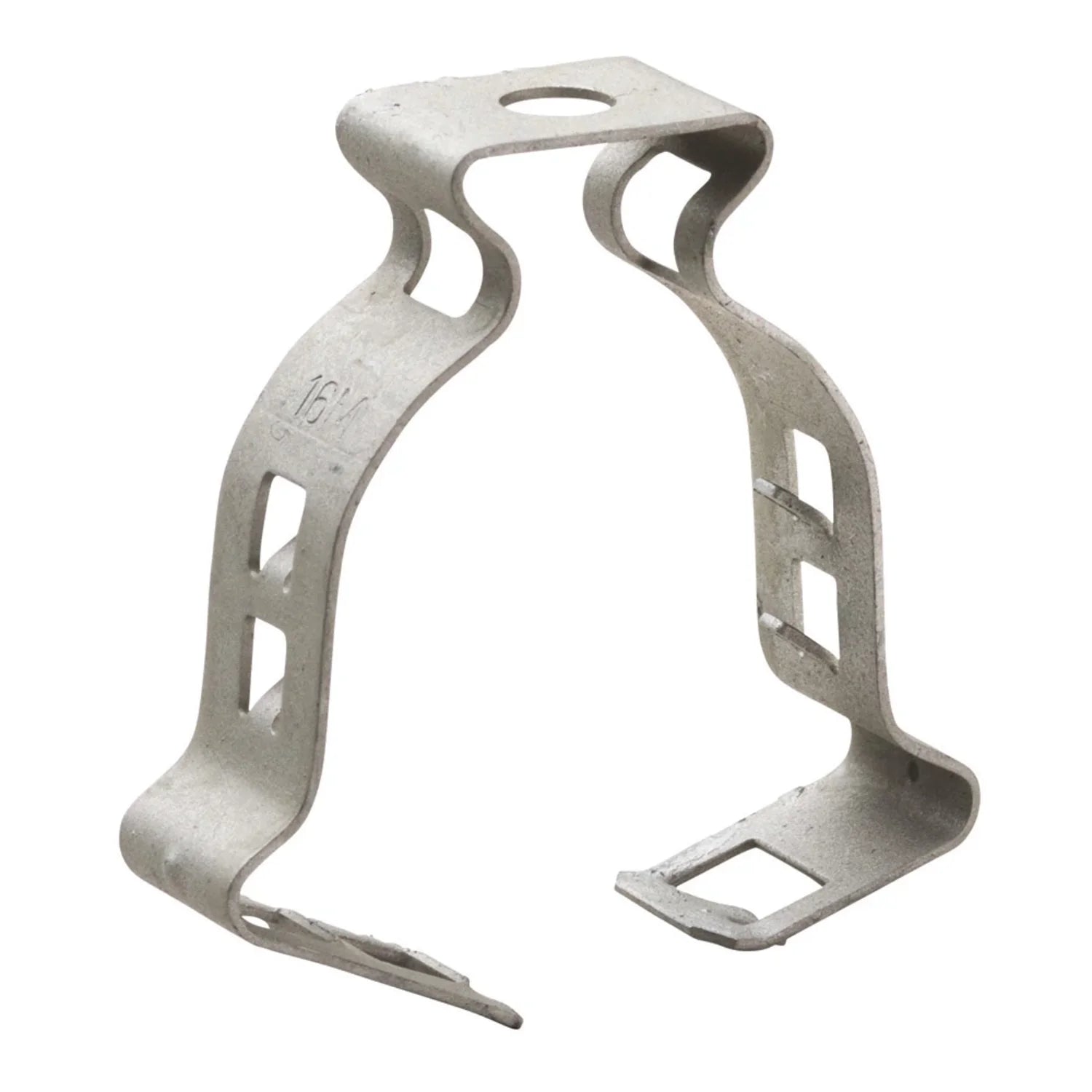

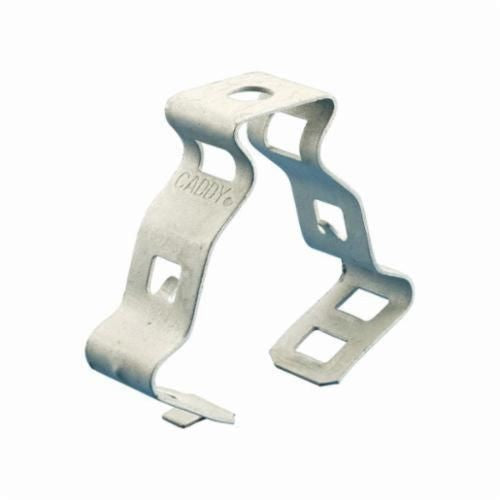

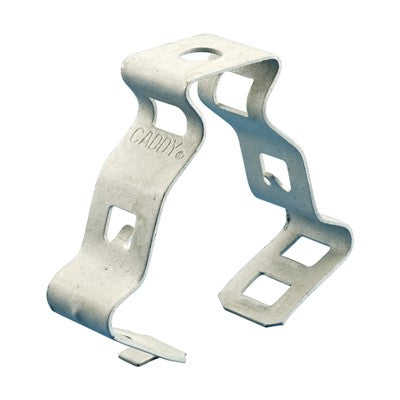

Nvent 16M Caddy Snap Close Conduit/Pipe Clamp 1 in

Product Description

The NVENT 16M CADDY Snap Close Conduit Clamps (M-Series) secure conduit branch circuits for electrical installations. Designed to provide positional consistency by eliminating conduit offset and maintaining spacing entering electrical boxes. Increase installation efficiency for your next electrical project.

• May be used for either vertical or horizontal installations
• Eliminates need for offset bending conduit
• Finger closure, no tools required

Product Highlights

The NVENT CADDY Snap Close Conduit Clamp offers a fast and efficient method to secure conduit.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: 16M
• Country of Origin: US - United States

Technical Specifications

• Material: Spring Steel
• Finish: nVent CADDY Armour
• EMT Conduit Size: 3/4";1"
• Rigid Conduit/Pipe Size: 3/4";1"
• Outer Diameter (OD): 0.920" - 1.38"
• Hole Size (HS): 9/32"
• Hole Type: Plain
• Static Load 1 (F1): 100lb
• Static Load 2 (F2): 25lb
• Conduit Size: 1 in
• Load Capacity: 25 lb
• Outside Diameter: 1.181 to 1.378 in
• Specifications: Plain Hole, 9/32 in Hole
• Suitable For Use With: EMT/Rigid Conduit
• Type: Snap Close
• Application: Datacom and Low Voltage
• Standard & Approvals: cULus Listed, RoHS Exempted
• Catalog ID: CAD16M
• ECCN: EAR99
• Country of Origin: US - United States
• UNSPSC: 39121702
• Use With: 1 in. EMT or Rigid Conduit
• Hole Size: 9/32 in.
