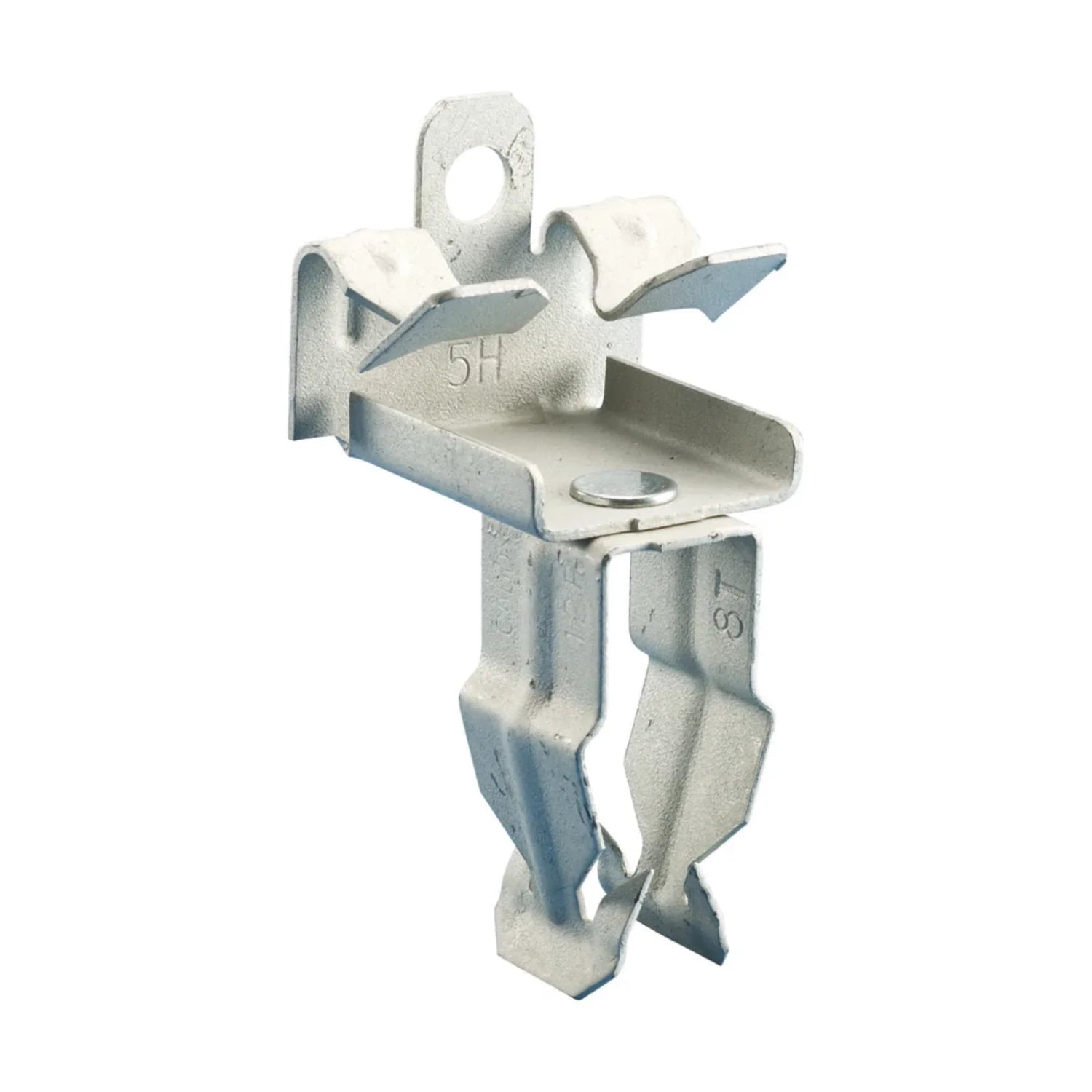

Nvent 12P912 EM-P Conduit to Flange Clip 3/4 inches EMT, 1/2 inches Rigid, 0.866 inches–1.181 inches OD, 9/16 inches–3/4 inches Flange

Product Description

The NVENT 12P912 EM-P Conduit to Flange Clip is designed for securing conduit to flanges. It is suitable for 3/4" EMT or 1/2" rigid conduit with a flange thickness of 9/16" to 3/4" and outer diameter of 0.866"–1.181". Made from spring steel with nVent CADDY Armour finish, it offers a static load capacity of 25 lb.

• Requires only a hammer to install
• Available for EMT, rigid, IMT and aluminum conduit
• Will pivot thru 360°

Product Highlights

The NVENT CADDY 12P912 clip provides a simple and effective solution for conduit-to-flange connections.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: 12P912
• Country of Origin: US - United States

Technical Specifications

• Material: Spring Steel
• Finish: nVent CADDY Armour
• EMT Conduit Size: 3/4"
• Rigid Conduit Size: 1/2"
• Outer Diameter (OD): 0.870" - 1.18"
• Flange Thickness (FT): 9/16" - 3/4"
• Ultimate Static Load (F): 25lb
• Orientation: Top Mount
• UPC: 782856182627
• EAN: 8711893751338
• Standard Packaging Quantity: 100
• Packing Quantity: 1
• Use With: 3/4 in. EMT or 1/2 in. Rigid Conduit
• Flange: 9/16 to 3/4 in.
