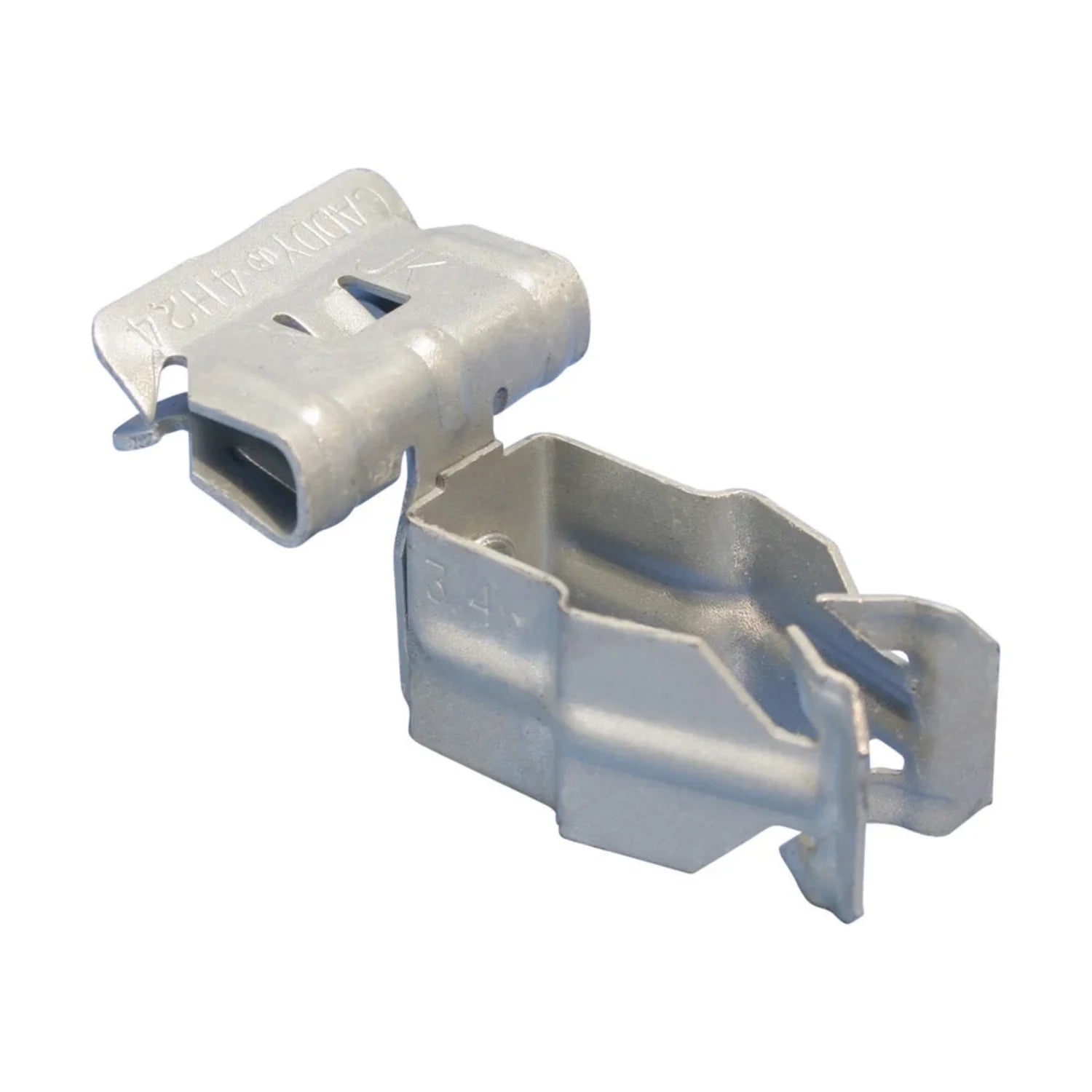

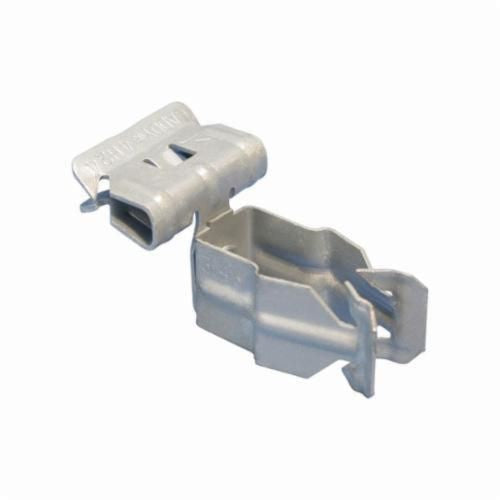

Nvent 12P58SM Conduit to Flange Clip Side Mount 3/4 inches EMT, 0.3125–0.5 inches Flange

Product Description

The NVENT 12P58SM is a conduit to flange clip designed for side mounting. It is made from spring steel with nVent CADDY Armour finish. Designed for 3/4" EMT conduit and 0.3125–0.5" flange, it requires only a hammer to install and will pivot thru 360 degrees.

• Requires only a hammer to install
• Available for EMT, rigid and aluminum conduit
• Will pivot thru 360°

Product Highlights

The NVENT 12P58SM is a conduit to flange clip for easy installation and versatile use.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: 12P58SM
• Country of Origin: US - United States

Technical Specifications

• Orientation: Side Mount
• Material: Spring Steel
• Finish: nVent CADDY Armour
• EMT Conduit Size: 3/4"
• Outer Diameter (OD): 0.870" - 1.18"
• Flange Thickness (FT): 5/16" - 1/2"
• Ultimate Static Load (F): 25lb
• Load Capacity: 15 lb
• Mounting Type: Side
• Outside Diameter: 0.866 to 1.181 in
• Application: Datacom and Low Voltage
• Standard & Approvals: cULus Listed, RoHS Exempted
• Conduit Size: 3/4 in
• Flange Size: 5/16 to 1/2 in
• ECCN: EAR99
• UNSPSC: 39121702
• Use With: 3/4 in. EMT Conduit
• Flange: 5/16 to 1/2 in.
