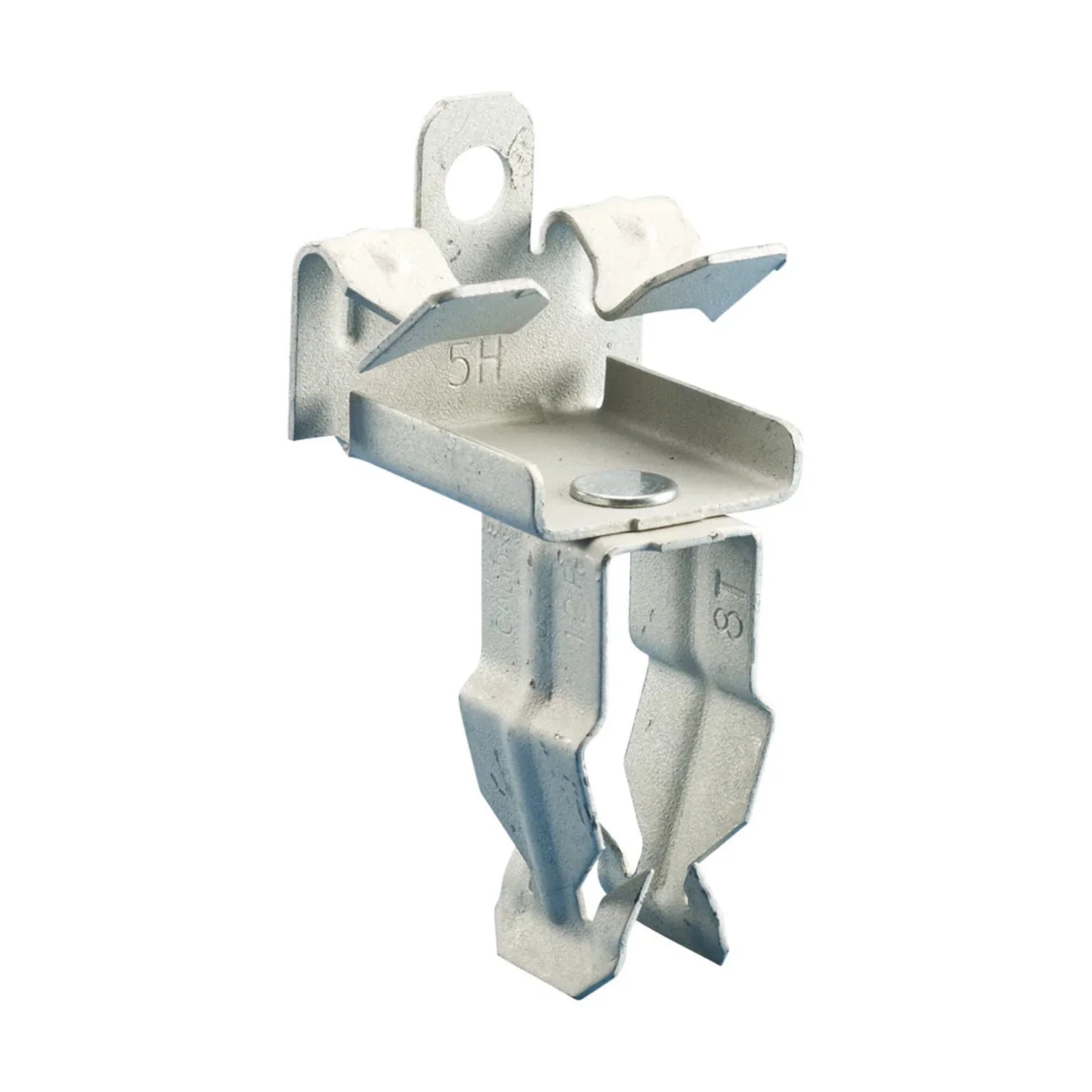

Nvent 12P24 Conduit to Flange Clip, 3/4 inches EMT, 1/2 inches Rigid, 1/8 inches–1/4 inches Flange

Product Description

The NVENT 12P24 is a CADDY conduit to flange clip designed to secure conduit from a structural steel element. It supports 3/4" EMT, 1/2" rigid conduit to 1/8" - 1/4" flange. It features an easy, hammer-on method for installation.

• Requires only a hammer to install
• Available for EMT, rigid, IMT and aluminum conduit
• Will pivot thru 360°

Product Highlights

The NVENT CADDY 12P24 is ideal for datacom, low-voltage, and electrical applications. It provides a secure and versatile solution for conduit installation.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: 12P24

Technical Specifications

• Material: Spring Steel
• Finish: nVent CADDY Armour
• EMT Conduit Size: 3/4"
• Rigid Conduit Size: 1/2"
• Outer Diameter (OD): 0.870" - 1.18"
• Flange Thickness (FT): 1/8"
• Ultimate Static Load (F): 25lb
• Orientation: Top Mount
• UPC: 782856162629
• EAN: 8711893751147
• Standard Packaging Quantity: 100
• Packing Quantity: 1
• Applications: Datacom and Low-Voltage, Electrical
• Trade Size: 3/4 Inch
• Type: EM-P Conduit to Flange Clip
• Brand: nVent Caddy
• Sub Brand: CADDY
• 12-Digit UPC: 782856162629
