Nvent 12P12P Push In Conduit to Conduit Clamp, 3/4 inches EMT1, 3/4 inches EMT2, 1/2 inches Rigid1, 1/2 inches Rigid2, 0.866 inches–1.18 inches OD1, 0.866 inches–1.18 inches OD2

Product Description

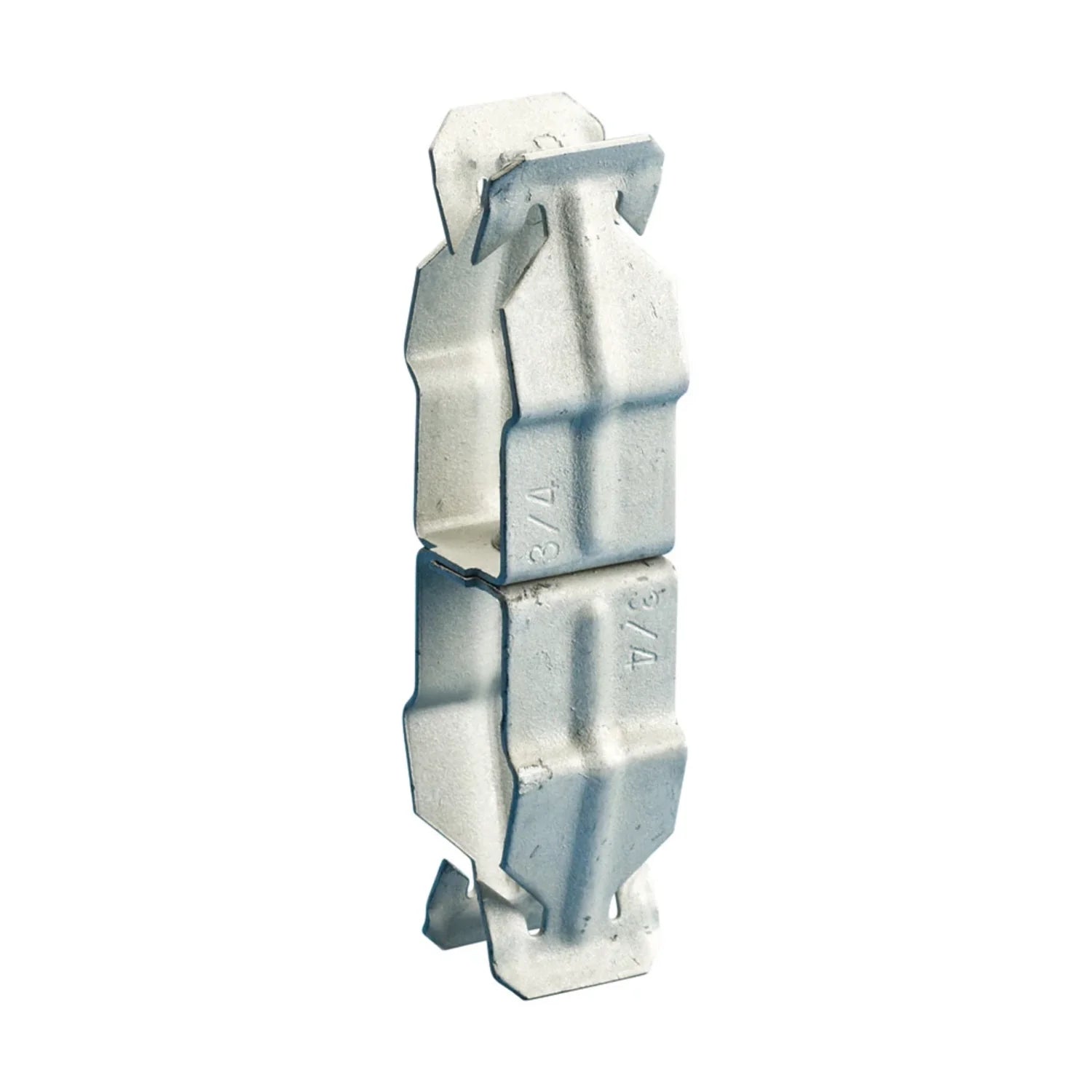

The NVENT 12P12P push in conduit to conduit clamp is designed for various conduit sizes. It is suitable for 3/4" EMT1, 3/4" EMT2, 1/2" Rigid1, 1/2" Rigid2, 0.866"–1.18" OD1, and 0.866"–1.18" OD2. Made from spring steel with nVent CADDY Armour finish, it supports datacom and low voltage applications.

• Ideal as spacer between same or different size conduit
• No tools required for installation
• Top conduit to be used for support only, not a raceway

Product Highlights

This push-in conduit clamp is easy to install and provides a reliable spacing solution for various conduit sizes.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: 12P12P
• Country of Origin: US - United States

Technical Specifications

• Material: Spring Steel
• Finish: nVent CADDY Armour
• EMT Conduit Size 1: 3/4"
• EMT Conduit Size 2: 3/4"
• Rigid Conduit Size 1: 1/2"
• Rigid Conduit Size 2: 1/2"
• Outer Diameter 1 (OD1): 0.870" - 1.18"
• Outer Diameter 2 (OD2): 0.870" - 1.18"
• Ultimate Static Load (F): 25lb
• UPC: 782856812623
• EAN: 8711893712544
• Load Capacity: 25 lb
• Outside Diameter: 0.866 to 1.181 in
• Conduit Size: 3/4 in
• Type: Push In
• Application: Datacom and Low Voltage
• Standard & Approvals: cULus Listed, RoHS Exempted
• ECCN: EAR99
• Country of Origin: US - United States
• UNSPSC: 39121702
• Use With: 3/4 to 3/4 in. EMT or 1/2 to 1/2 in. Rigid Conduit
