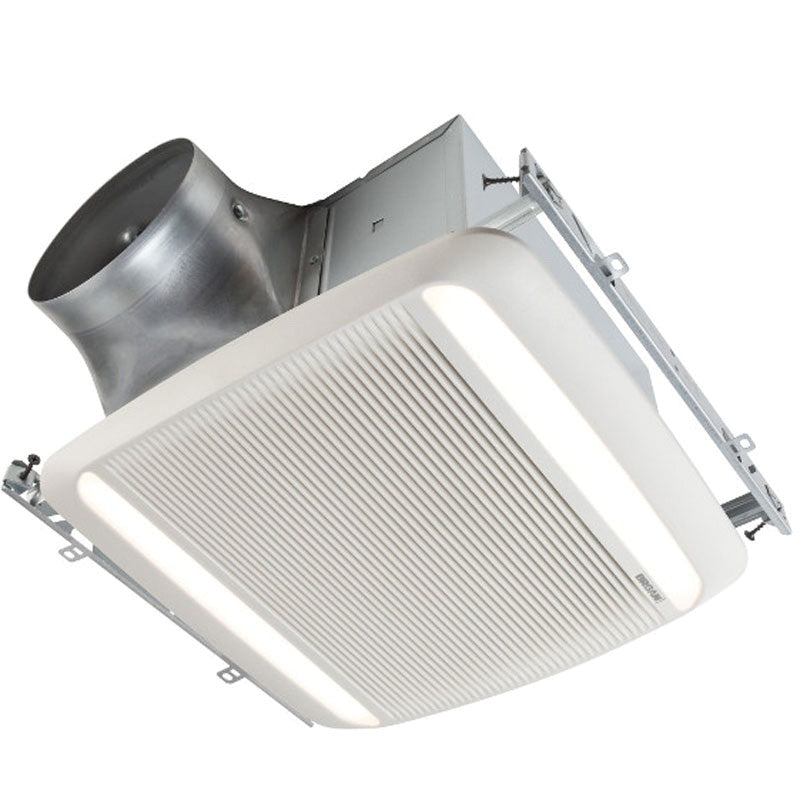

Nutone ZB80L1 Ventilation Fan With Light 120-Volt AC 80 CFM

Product Description

The Nutone ZB80L1 is a ventilation fan with light designed for efficient airflow and minimal noise. It has a voltage rating of 120-Volts AC and a current rating of 0.4-Amp. This ceiling mountable fan features a rectangular white grille measuring thirteen and three-quarters inches by fourteen and one-quarter inches. The fan operates at speeds of nine hundred eighty and one thousand twenty RPM, providing airflow of eighty CFM.

• Energy efficient with a power rating of 8.3/6.7-Watts.
• Compatible with a 4-Inch or 6-Inch round duct.
• ULTRASilent™ sound technology reduces noise during operation.

Product Highlights

This fan is ideal for rooms up to seventy-five square feet. It features retrofitted installation from the room side for easy setup. The fan incorporates a telescoping mounting frame for better placement through drywall openings.

Product Information

Standard Information

• Brand: Nutone
• Part Number: ZB80L1

Technical Specifications

• Air Flow: 80 CFM
• Power Consumption: 8.3 Watts (4 Inch Duct), 6.7 Watts (6 Inch Duct)
• Sound Level: <0.3 Sones (4 Inch Duct), <0.3 Sones (6 Inch Duct)
• Voltage Rating: 120 Volt AC
• Frequency Rating: 60 Hz
• Grille Dimensions: 13-3/4 Inch Length x 14-1/4 Inch Width
• Duct Size: 4 Inch or 6 Inch Round
• Standards: UL Listed, HVI-2000 Certified, Energy Star Qualified
• Minimum Construction Space Required: 2 Inch x 8 Inch
