Nutone XB80-C Ultra Green XB Series 80 CFM Ceiling Bathroom Exhaust Fan

Product Description

The NUTONE XB80-C Ultra Green XB Series ventilation fan provides 80 CFM of effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths. It features ULTRAQuick installation technology with a telescoping mounting frame and pre-installed screws. The corrosion-resistant galvanized steel housing stands up to moisture.

• ENERGY STAR certified
• UL Listed for use over bathtubs and showers when connected to a GFCI circuit
• <0.3 Sones for Ultra quiet performance

Product Highlights

This exhaust fan features a snap-in housing and blower, and an inside-out mounting duct connector for easy installation. Its brushless DC motor is 3X more efficient than standard AC powered ventilation.

Product Information

Standard Information

• Brand: NUTONE
• Manufacturer Part Number: XB80-C

Technical Specifications

• CFM: 80
• Color Finish: White
• Duct Size: 6 or 4 in
• ENERGY STAR certified: Yes
• Grille Length: 13
• Grille Width: 13.75
• Sound Level (Sones): 0.3
• UL Listed: Yes
• Grille Finish: White
• Humidity Sensing: No
• Motion Sensing: No
• Motor Engineered For Continuous Operation: Yes
• Night Light: No
• Radiation Damper Available: Yes
• Room Side Installation: Yes
• UL Listed for use over bathtubs or showers when connected to a GFCI circuit: Yes
• Heater Wattage: 0
• Recommended Room Size (Sq Ft): 75
• Rated Amps: 0.3
• Voltage: 120 V
• Can Be Used To Comply With Title 24: Yes
• Minimum Construction Space Required: 2" x 8"
• High Efficiency Luminaire: No
• Minimum Recommended Flow: 0
• Amperage Rating: 0.1 A
• CFM Rating: 80 cfm at 0.1 in SP
• Frequency Rating: 60 Hz

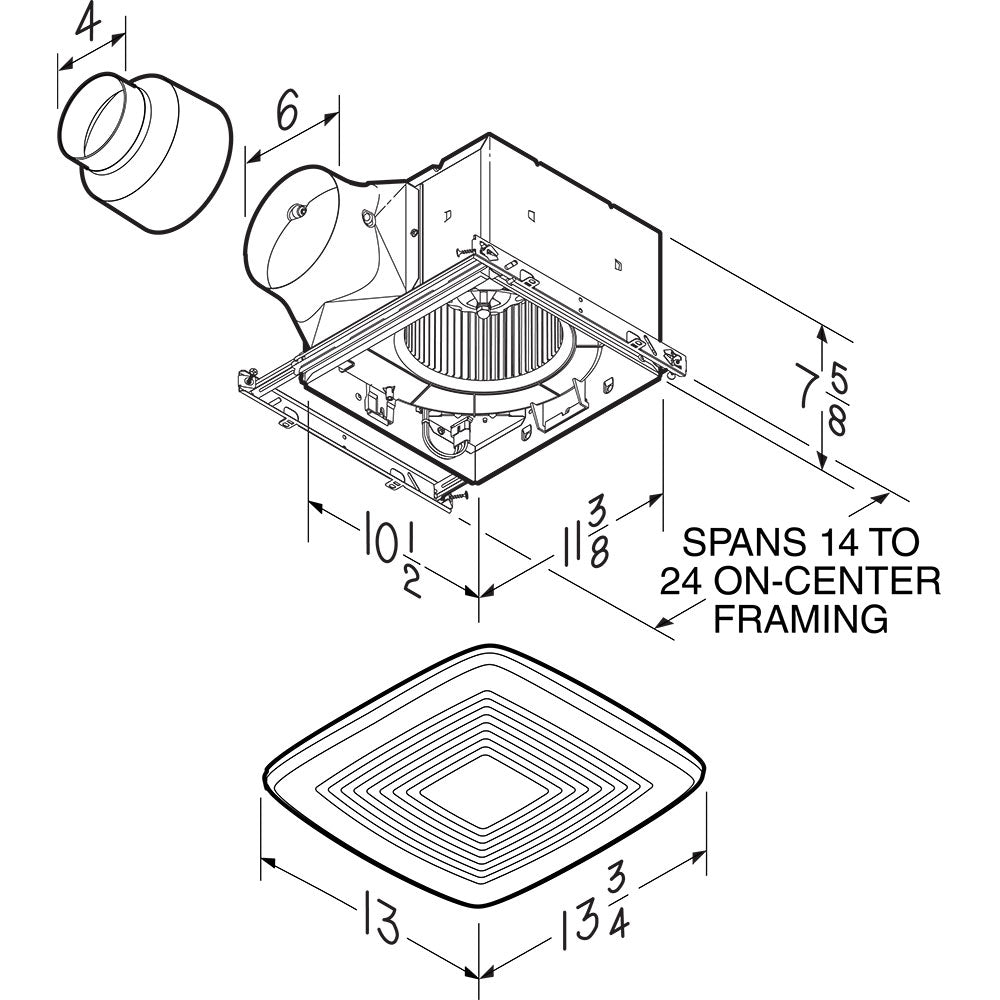

• Grille Size: 13 in L x 13-3/4 in W
• Height: 7-5/8 in
• Length: 10-1/2 in
• Material: Polymeric
• Mounting Type: Ceiling
• Power Rating: 5.8 W at 0.1 in Static Pressure
• Series: Ultra Green
