Nutone RB80L1 Single Speed Fan With Light Horizontal 80 CFM RB80L1

Product Description

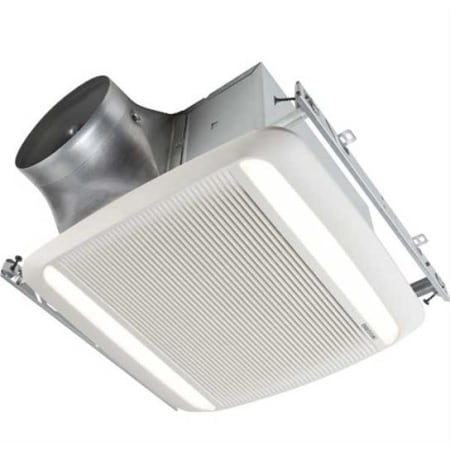

The Nutone RB80L1 is a single speed fan with integrated light. It has an airflow rating of eighty cubic feet per minute (CFM) and supports an eighteen watt integrated LED light. This 120-Volt AC fan operates with a current rating of one amp, consuming twenty-eight watts at 0.1-inch static pressure. It is designed with a horizontal duct of four-inch diameter and features a sound level of less than 0.3 Sones, ensuring quiet operation.

• Suitable for rooms up to seventy-five feet.
• Includes a telescoping mounting frame for easy installation.
• Meets cULus and Energy Star standards.

Product Highlights

This fan offers flexible installation options, including for new construction and retrofitting. Its metal housing dimensions are ten and one half inches by eleven and three eighths inches by seven and five eighths inches.

Product Information

Standard Information

• Brand: Nutone
• Manufacturer Part Number: RB80L1

Technical Specifications

• Mounting: Ceiling
• Power Consumption: 28 Watt at 0.1 Inch Static Pressure
• Sound Level: <0.3 Sones
• Voltage Rating: 120 Volt AC
• Air Flow: 80 CFM
• Housing Material: Metal
• Duct Size: 4 Inch Dia
• Grille Material: Polymeric
