Nutone AE110L Single Speed Fan With Light 120 Volt AC 110 CFM at 0.1 Inch Static Pressure 92 CFM at 0.25 Inch Static Pressure

Product Description

Nutone AE110L is a single speed fan designed to improve ventilation and reduce humidity in bathrooms. The unit operates on 120 volts AC and provides an airflow of 110 CFM at 0.1 inch of static pressure. This fan is ideal for installation in ceilings with limited attic access.

• Includes one 11-watt integrated LED light
• Quiet operation with a sound level of 1.3 Sones
• TrueSeal damper technology to minimize air leakage

Product Highlights

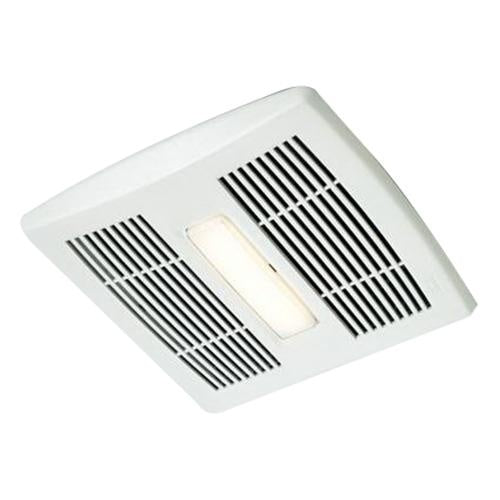

The Nutone AE110L features a durable galvanized steel housing for corrosion resistance and a white polymeric grille. It is easy to mount and suitable for retrofit installations.

Product Information

Standard Information

• Brand: Nutone
• Manufacturer Part Number: AE110L

Technical Specifications

• Power Consumption: 23.4 Watts at 0.1 Inch static pressure
• Voltage: 120 Volt AC
• Air Flow: 110 CFM at 0.1 Inch static pressure, 92 CFM at 0.25 Inch static pressure
• Sound Level: 1.3 Sones
• Grille Dimension: 11-7/16 inches x 12-1/8 inches
• Housing Material: Galvanized Steel
• Mounting Type: Ceiling
• Minimum Construction Space Required: 2 inches x 6 inches
