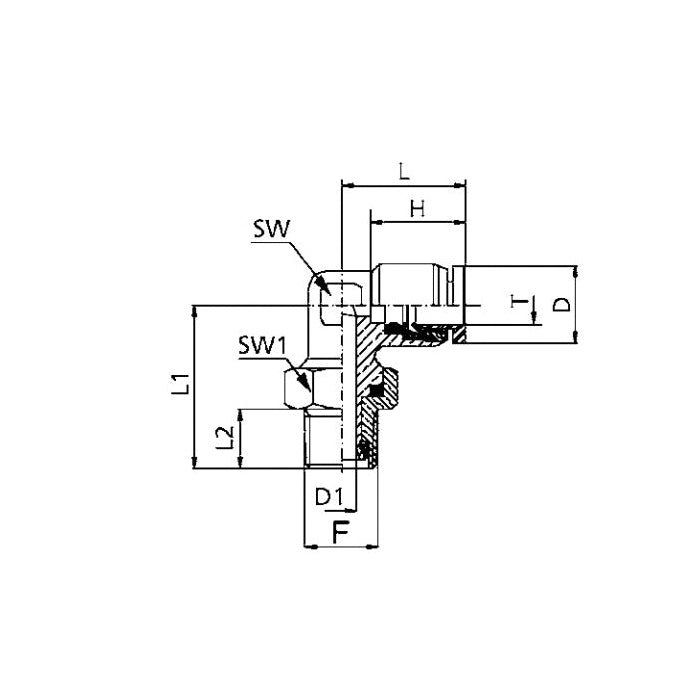

Numatics INB109-308-022 Swivel Elbow with Brass Release Ring and Buna-N O-Ring

Product Description

The Numatics INB109-308-022 is a swivel elbow designed for efficient flow in pneumatic systems. This fitting is constructed from brass and features a nickel-plated finish for durability. The nominal size is three-eighths inches, making it suitable for various applications requiring a tight seal and flexible connection.

• Brass construction with nickel-plated finish
• Rated for pressures up to two hundred sixty-five psi
• Temperature range from negative twenty to one hundred seventy-six degrees Fahrenheit

Product Highlights

Reliable performance with a swivel design to reduce stress on hoses and fittings.

Product Information

Standard Information

• Manufacturer: Emerson Electric
• Brand: Numatics

Technical Specifications

• Finish: Nickel Plated
• Series: INB
• Hex Size: 0.63 in
• Material: Brass
• End Style: Tube x NPTF
• Nominal Size: 3/8 in
• Pressure Rating: 265 psi
• Temperature Rating: -20 to 176 deg F
• Fitting/Connector Type: Swivel
• Domestic/Import: Domestic
