Numatics INB100-102-000 Union With Brass Release Ring and Buna-N O-Ring 1/2 in

Product Description

The Numatics INB100-102-000 union is designed for pipe and tube applications. This fitting is made from brass and features a nickel-plated finish for enhanced durability. It connects tubes with a nominal size of one-half inch and includes a brass release ring and Buna-N O-ring to ensure reliable sealing.

• Suitable for a wide range of pneumatic systems.
• Pressure rated up to 265 psi.
• Temperature withstand range from -20 to 176 degrees Fahrenheit.

Product Highlights

This union fitting offers easy installation and secure connections in pneumatic systems.

Product Information

Standard Information

• Brand: Numatics
• Manufacturer: Emerson Electric

Technical Specifications

• Series: INB
• Fitting/Connector Type: Union
• Material: Brass
• Finish: Nickel Plated
• Nominal Size: 1/2 in
• Pressure Rating: 265 psi
• Temperature Rating: -20 to 176 deg F

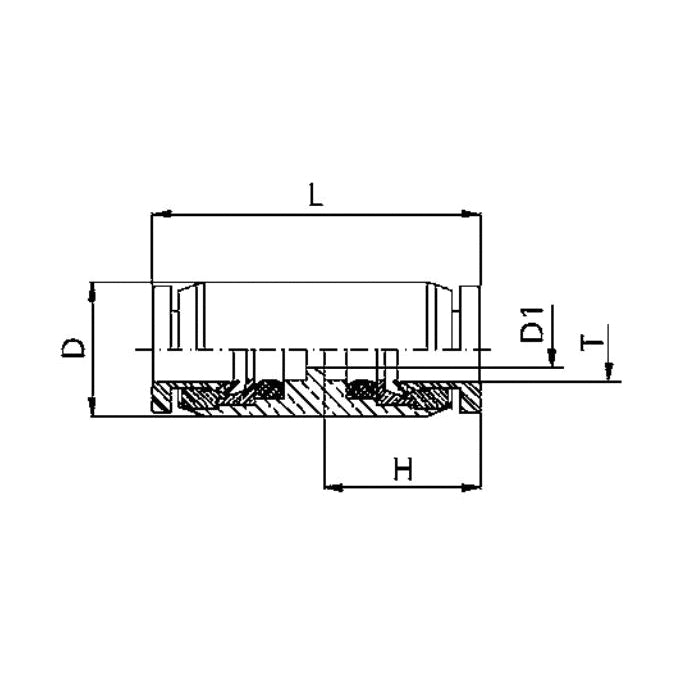

• Dimensions: 1.575 in W x 0.787 in H
• Domestic/Import: Domestic
• End Style: Tube
